22" Series 765 Balance

Product Code: S765-22

22" Series 765 Balance

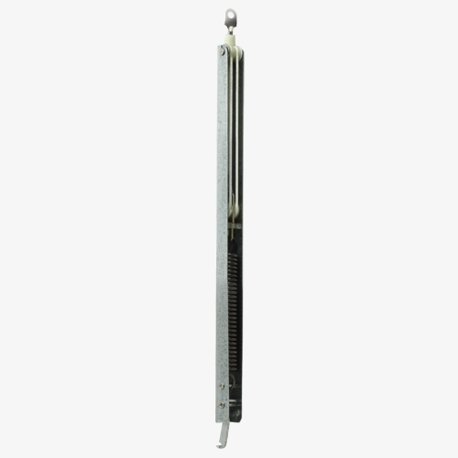

Main product image of the S765-22 22" Series 765 Balance
Bottom view of the s765 series
Top view of the s765 series
$10.95/each
Quantity Price
1-11 $10.95
12-49 $9.86
50-99 $9.31
100-249 $8.76
250+ $8.21
Please Note: Bulk pricing applies only to purchases of the same option
Option:
21-1
21-3
21-5
21-7
21-9
Product Description
This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 22" long metal channel.
  • Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.
    • Stamp Option Sash Weight Range
    21-1 6 to 10 lbs
    21-3 10 to 15 lbs
    21-5 15 to 19 lbs
    21-7 19 to 24 lbs
    21-9 24 to 28 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
