Product Code: 39-464

Ellipse Style Single Arm Operator, 6"

Name: Ellipse Style Single Arm Operator, 6"
SKU: 39-464
Price: 42.22 USD
Availability: InStock

$42.22

Ellipse Style Single Arm Operator, 6" Image

Product Description

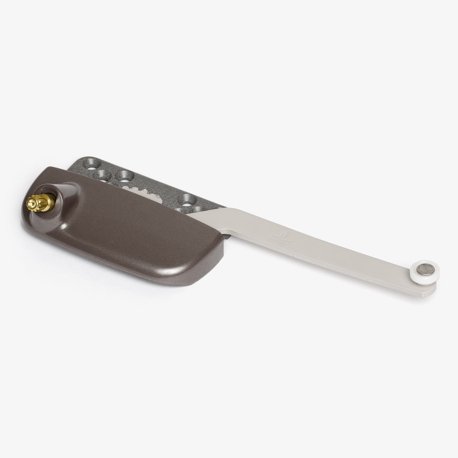

This is a genuine Truth Hardware sill mount, single arm crank operator. Used to open and close wood, metal, and vinyl casement windows.

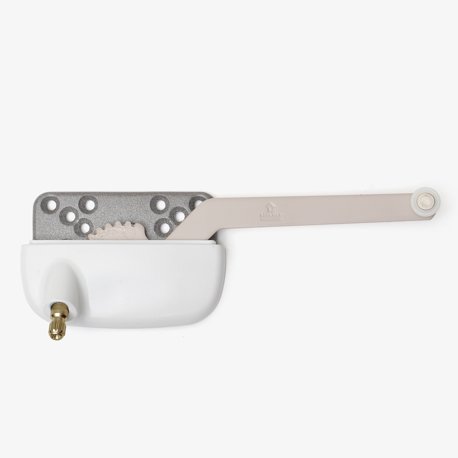

See SWISCO product 39-463 for the opposite handed version.
Will provide a full 90 degree window opening.
6" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

window operators replacement

On the pictures are window operators that needs to be replaced.Please help me to identify these part numbers.They all are made by Truth and have numbers on arms 30744 abd 30905.I need 3 of first 2 pictures - 2 right and 1 left.And one of pictures 3 and 4 right.And 3 handles for them in white color.P ... (cont.)

Truth operator from a older Menard's octagon window

Hello, I am looking for a replacement operator for a early 1990's Menards octagon window. The only numbers I could find are stamped on the underside housing (45136).
