Product Code: 39-032

EntryGard Dual Arm Operator

Name: EntryGard Dual Arm Operator
SKU: 39-032
Price: 29.7 USD
Availability: InStock

$29.70

Quantity	Price
1-9	$29.70/ea
10-24	$29.10/ea
25-49	$28.52/ea
50+	$27.99/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a genuine Truth Hardware EntryGard operator. This dual arm crank operator is used to open and close wood, metal, and vinyl casement windows.

See SWISCO product code 39-031 for the opposite handed version.
Will provide a full 90 degree window opening.
11/32" spline; handle sold separately.
Manufactured of high-pressure die-cast zinc for operator base; hardened steel drive worm and gears.
Features dual arm action to push sash open while pulling hinge side of the sash to the open position.
Link arm measures 4-7/16" overall with a downward offset.

Methodology for determining left from right?

Good morning! Check out our 39-031 & 39-032 Truth EntryGard operators. These appear to match your originals quite closely, but you can review our specs to verify.

Should this operator use the 39-107 or 39-107FK?

I have four entry guard dual arm operators, (39-032) The spline on the operators have all stripped. I will replace them. The current cover matches 39-107. Can I use 39-107FK instead? I would like a folding crank.

The corkscrew gear has come out my operator. Do you have it?

I have a situation the same on two of the windows in the house and I can't seem to locate the part/parts that I may need. on the underside on one of the cranks the numbers found are 14 45054 the other is 16 45054. When I was cranking the windows closed, these parts detatched from the window. Im not ... (cont.)

Please help me identify the casement hardware that I need

EntryGard mounting bracket 40254 and gear assembly 30471 short articulating arm 20544 and 30637 long articulating arm 30472 R.H.

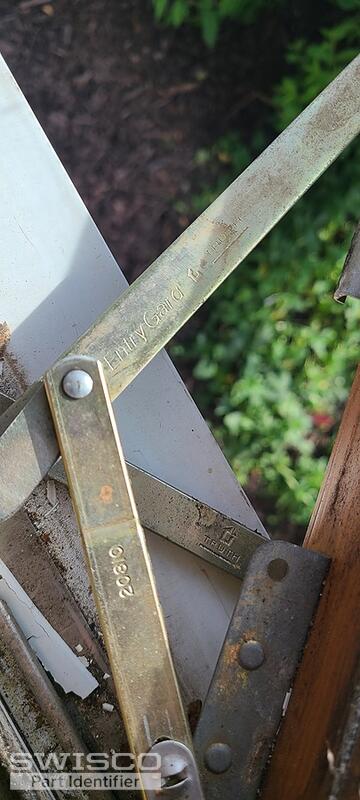

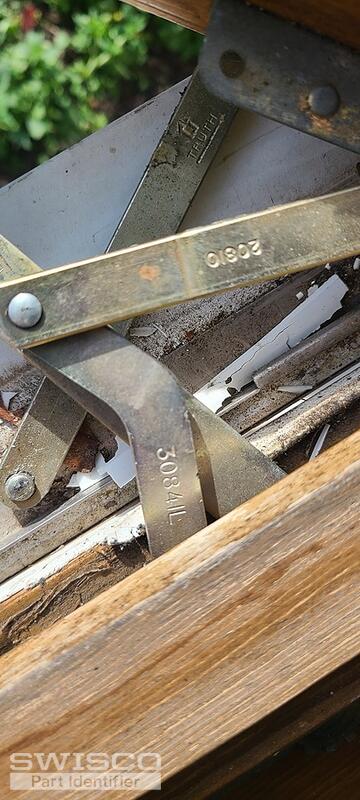

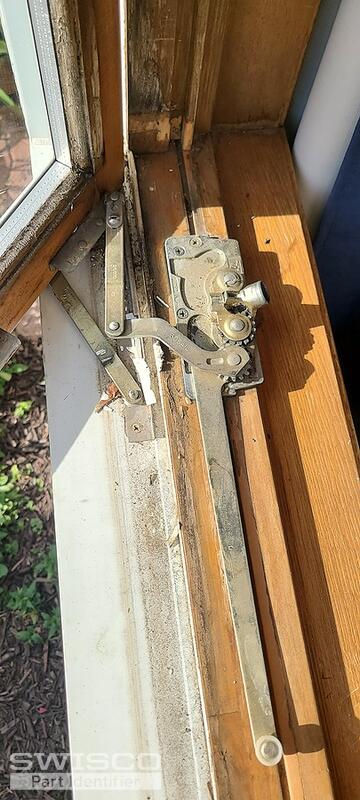

Broken Crank for bedroom window

Handle to open and close the window broke. Has the numbers 20810 and 30841L. Also says Entrygard and Truth. Not sure what the replacement would be. Could I get the correct number for a replacement part.

Start a new Discussion

Notice:

Your inquiry will be addressed by one of our specialists promptly. If your inquiry is time-sensitive, please feel free to reach us at (888) 991-1929 or at help@swisco.com.

Expect a reply within 3-4 business days.

Need help sooner? Call (888) 991-1929 or email us at help@swisco.com
