Product Code: 39-407

Front Mount Casement Operator, 13-1/2"

Name: Front Mount Casement Operator, 13-1/2"
SKU: 39-407
Price: 34.77 USD
Availability: InStock

$34.77

Front Mount Casement Operator, 13-1/2" Image

Quantity	Price
1-4	$34.77/ea
5-9	$32.80/ea
10-24	$31.24/ea
25-49	$29.75/ea
50+	$28.07/ea

Please Note: Bulk pricing applies only to purchases of the same option

black +$0.70 white aluminum +$0.70

Quantity

Add to Wishlist

Product Description

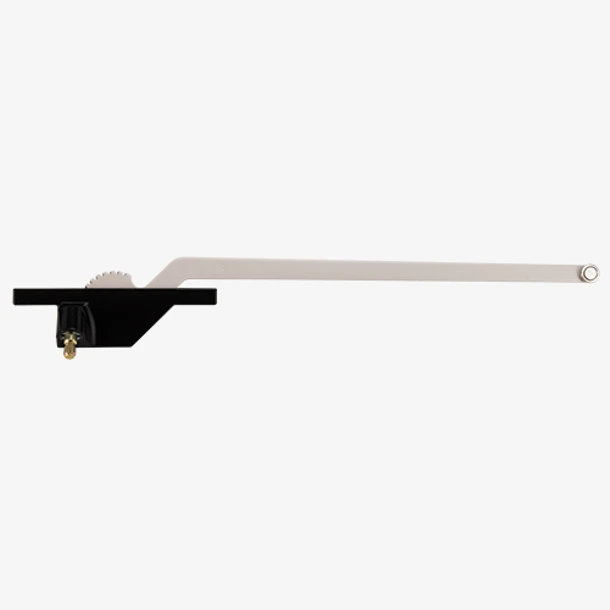

This is a genuine Truth Hardware front mount, single arm casement operator.

See SWISCO product 39-406 for the opposite handed version.
Will provide a full 90 degree window opening.

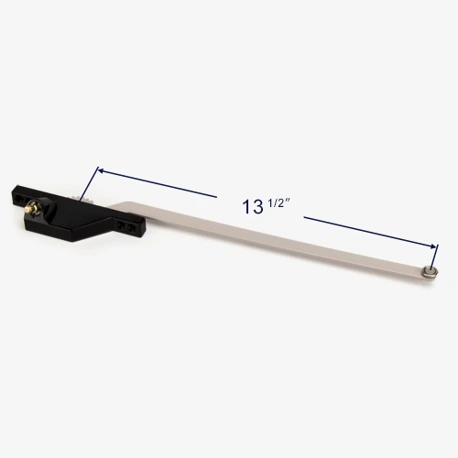

13-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with a stainless steel roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

Handles for part # 39-470

I received my Front Mount Casement Operators. thank you! Now I need the handles that go with them. Can you help me with part # and price?

ID operator TRUTH 40065

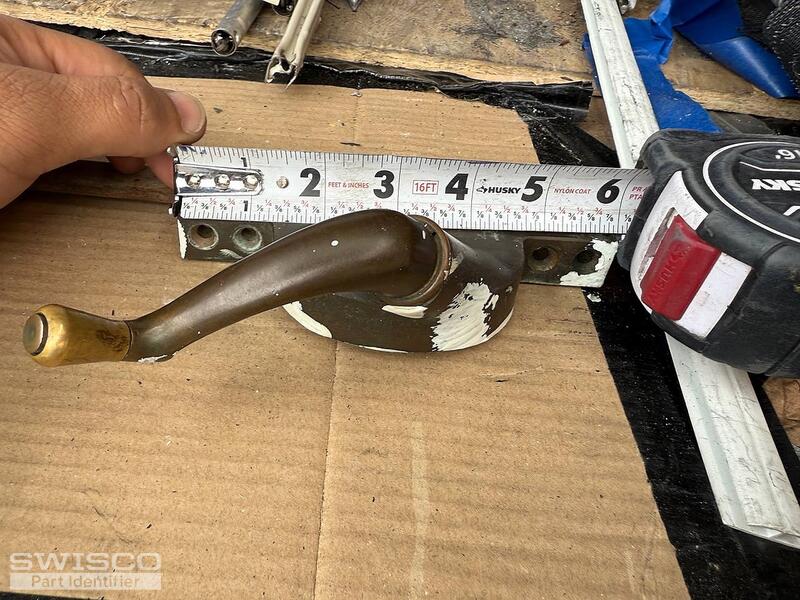

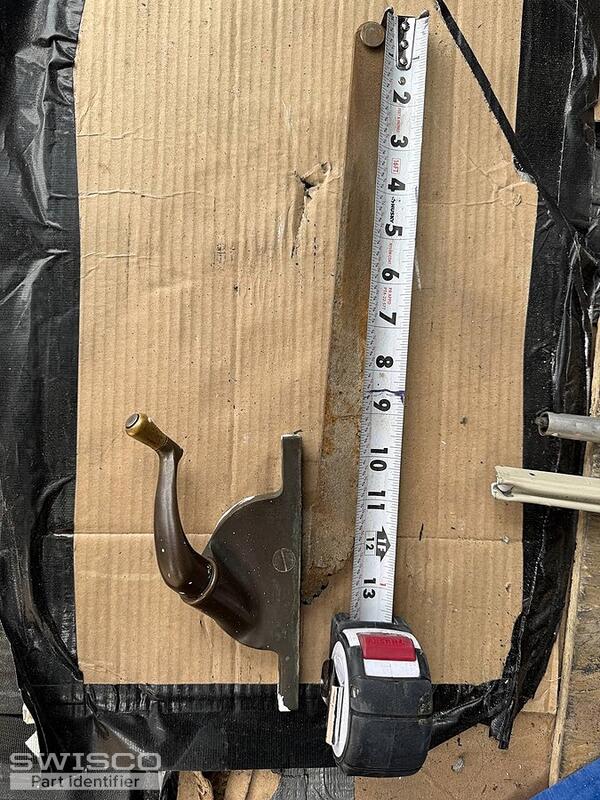

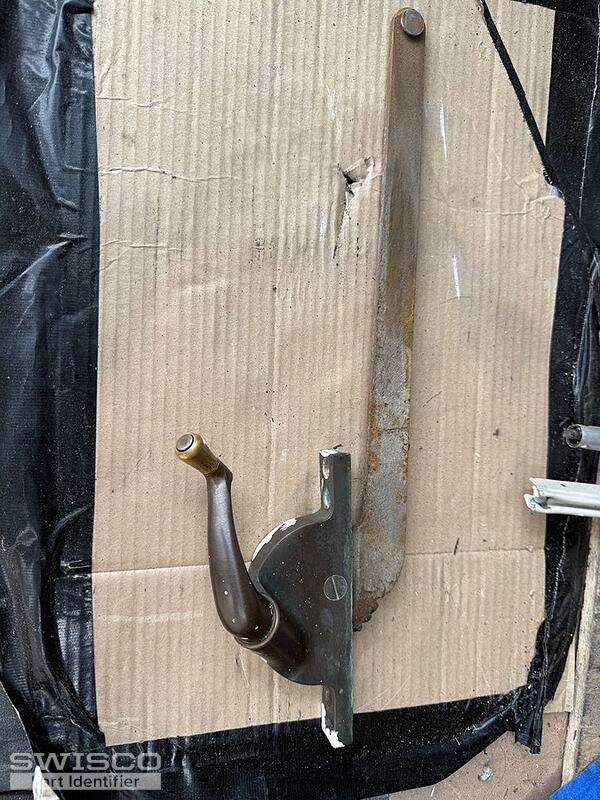

I have (7) commercial aluminum windows with most having disfunctional operators. The windows are from 1988. Seeking to replace all operators and need assistance in ID'ing. I had ordered a 39-028E, 39-533 and 39-114L. Obviously the 39-028E is the wrong style. Regards, Tom

15 Right Parts & 20 Left Parts

I just provided the photos of Right Part of the Window and I need 15 of them, as well as 20 left parts (that is absolutely the same size as right one) 15 Right Parts 20 Left Parts 1) How much will it costs for all of the parts? 2) How long it will take to deliver the parts to Brooklyn, NY 11229? ... (cont.)

Replacement handle, Mount and mechanism

The crank only opens the window an inch, then it "wheels" into emptiness as if it wasn't latching onto the mechanism. truth hardware anderberg mfg

Looking for piece to open the left window

Looking for the piece missing that you turn to open the window, the window on the right (from inside) is missing the handle. I was able to get the Brand - Truth. Looks like model number is 30744.
