Right 1/8" Recessed Door Offset Pivot Set, Arch Alum

Product Code: 79-122

Right 1/8" Recessed Door Offset Pivot Set, Arch Alum

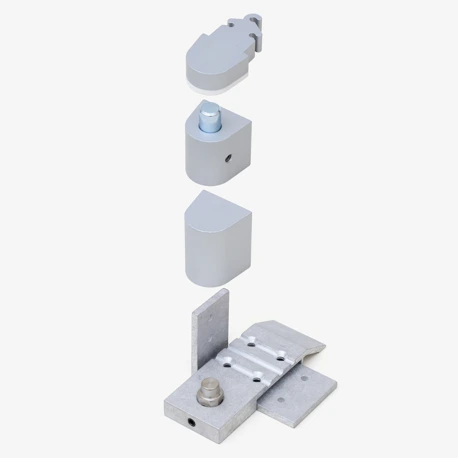

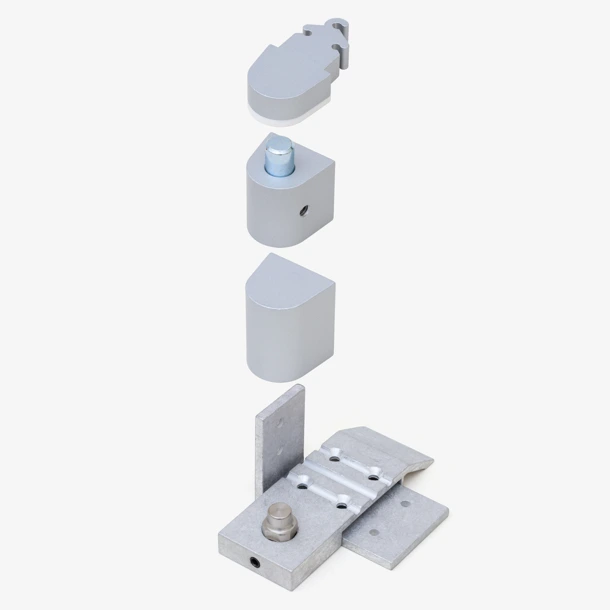

Main product image of the 79-122 Right 1/8" Recessed Door Offset Pivot Set, Arch Alum

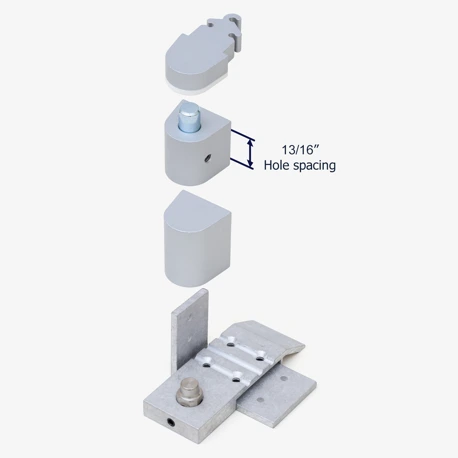

Dimensions for 79-122
How to Install a Commercial Door Pivot
Quantity Price
1+ $27.51
Product Description
This offset pivot set is used to replace the lower and upper pivots in a right hand 1/8" recessed door manufactured by Aldora and Arch Aluminum; HLSO. 3/4" Offset for use with aluminum commercial doors and frames with 1/8" vertical adjustment for doors weighing up to 125 lbs. Features an oilite bronze bushing in top frame portion; case hardened fixed pin in top door portion; full race ball bearing in bottom door portion; stainless steel stud in floor/jamb portion. To adjust the lower pivot you will need a 9/16" open end wrench. Finish/color is a baked satin aluminum paint.
Customer Questions & Answers
Discussion # Of Replies Last Post Date

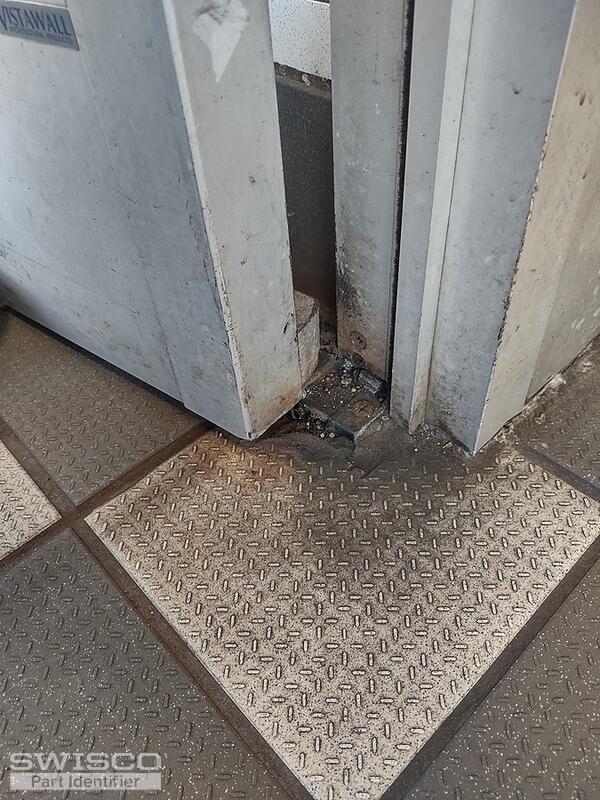

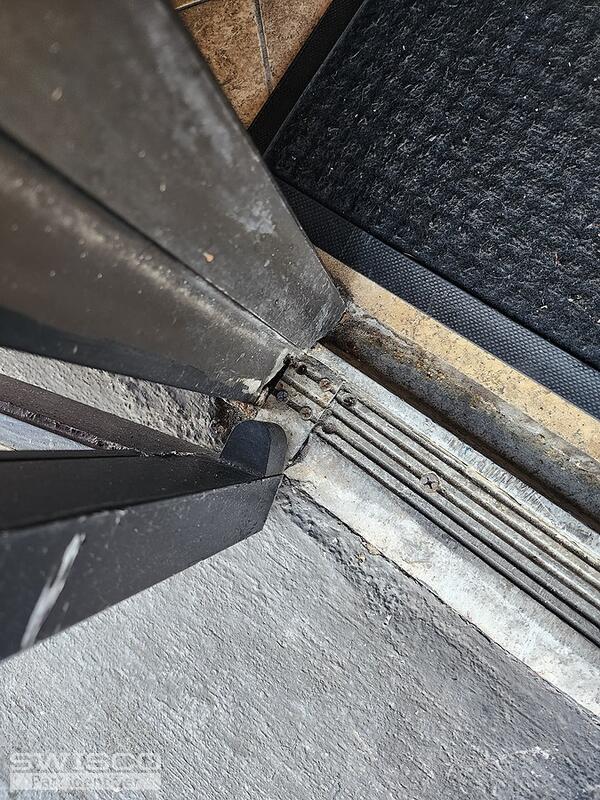

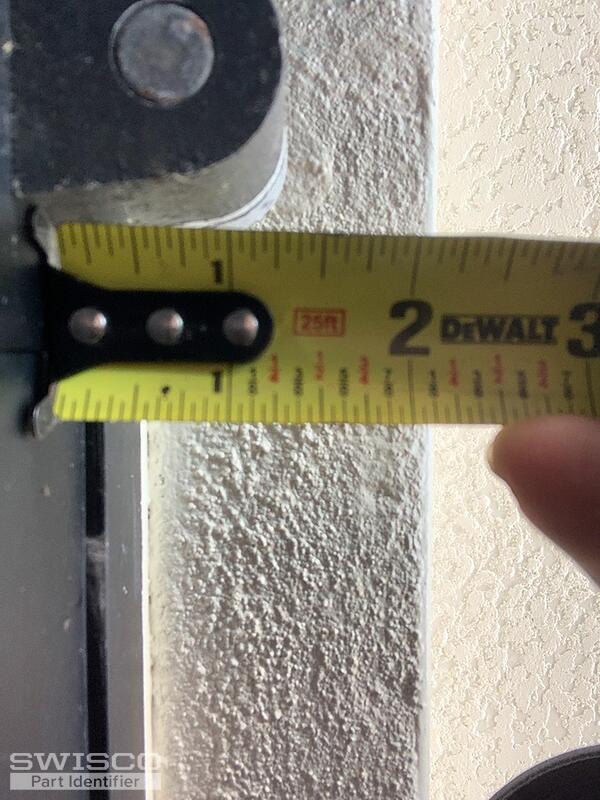

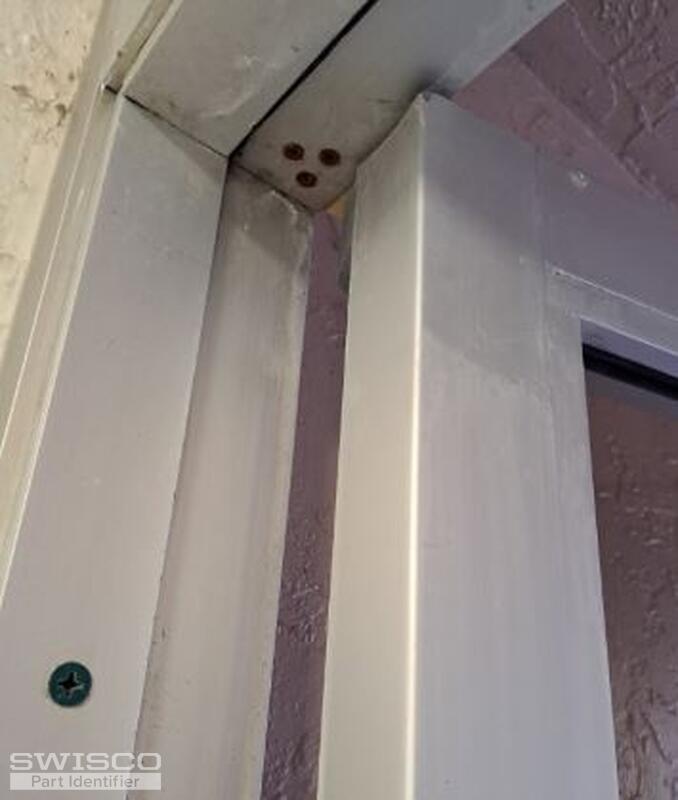

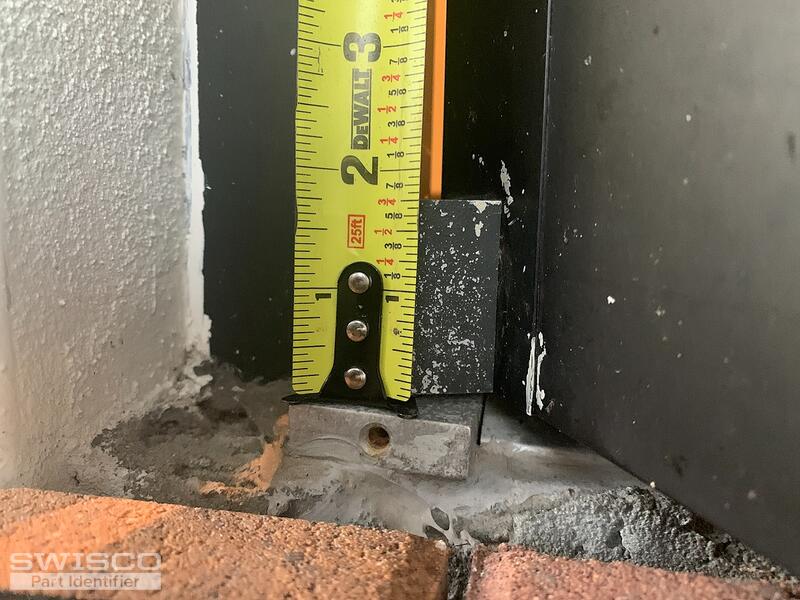

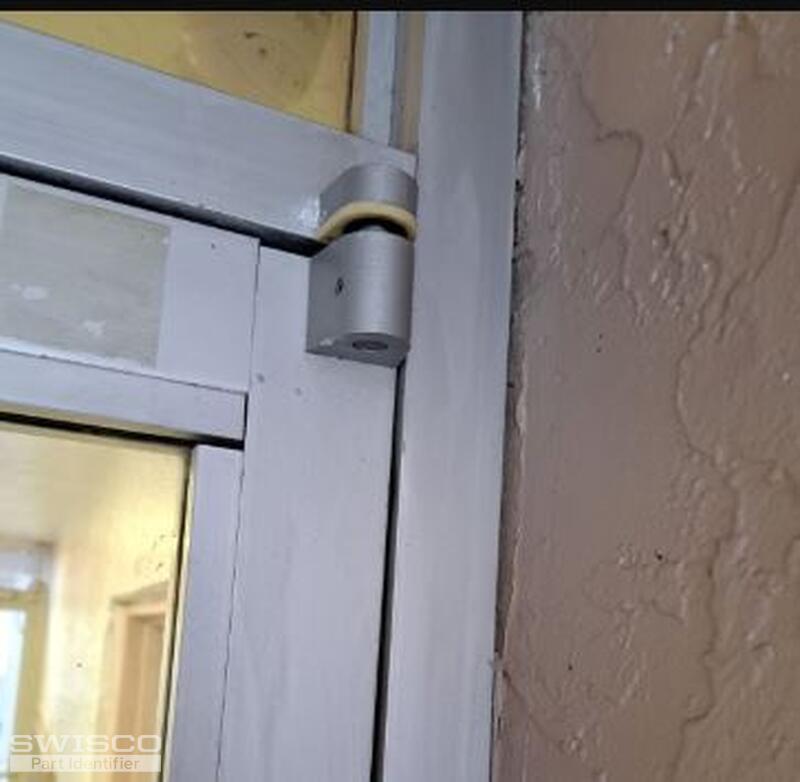

Pivot kit for my doorThis discussion includes image(s). 2 Jan 14, 2021

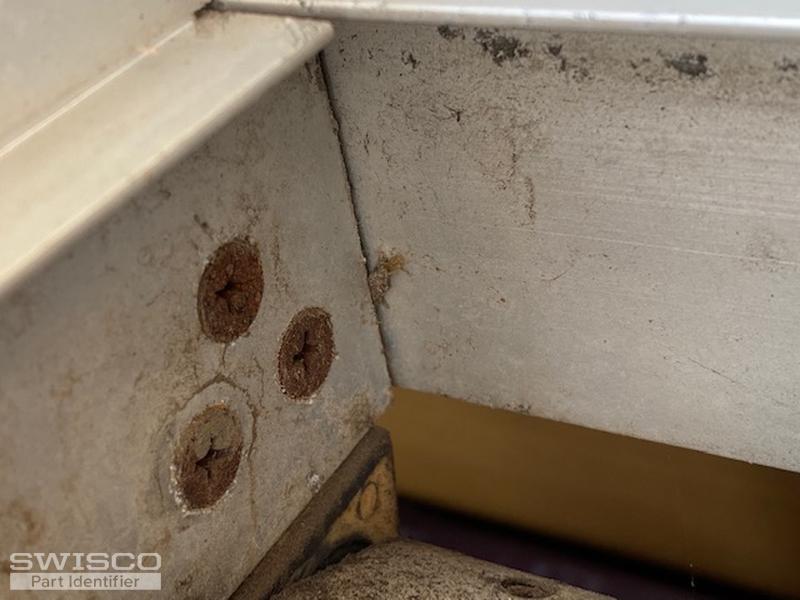

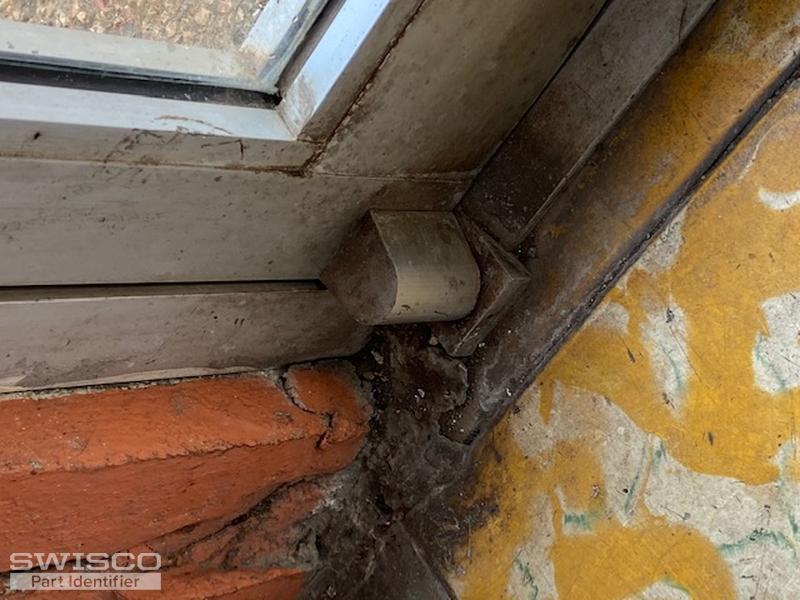

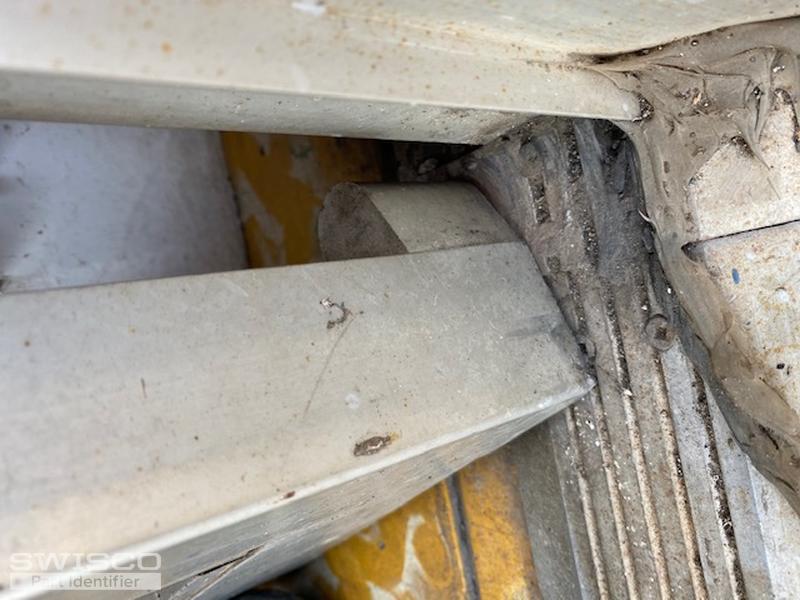

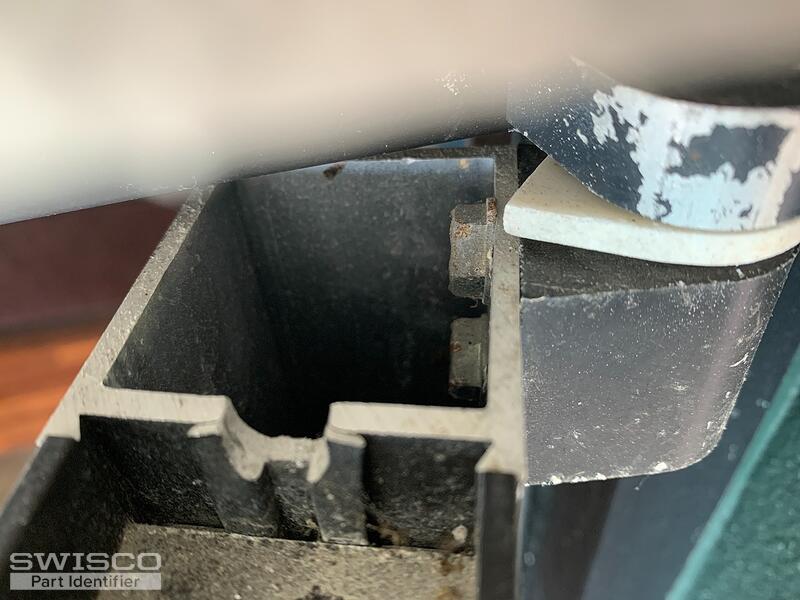

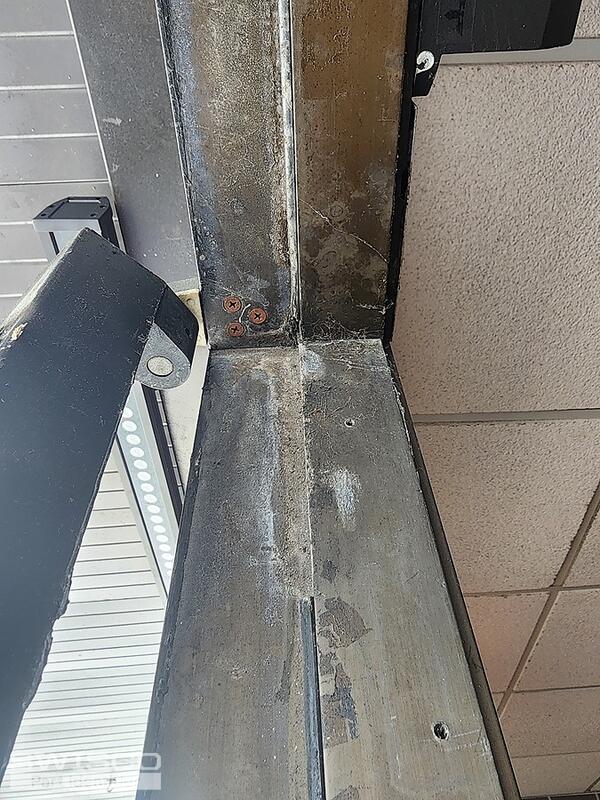

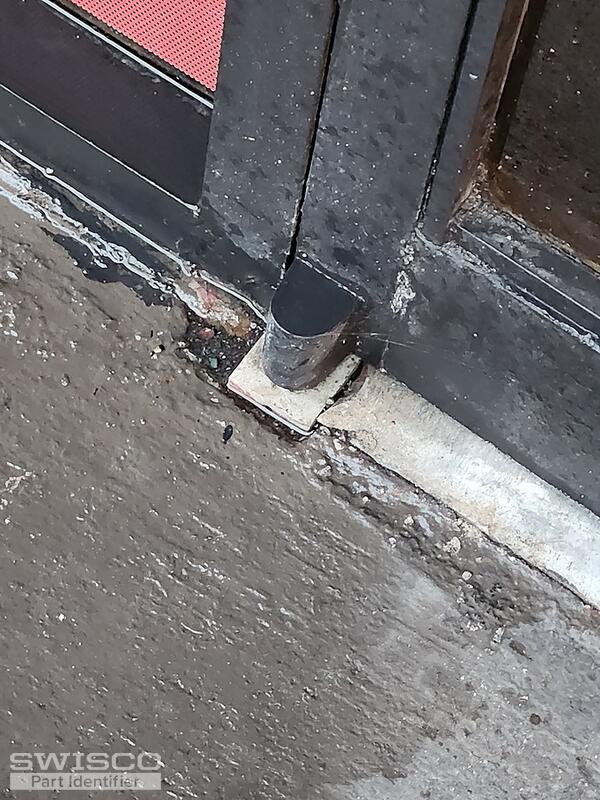

Please let me know the parts#This discussion includes image(s). 2 Oct 2, 2019
