Product Code: 39-171

Truth Hardware Dyad Operator

$32.55

Truth Hardware Dyad Operator Image

Dimensions for 39-171

Product Description

This is a genuine Truth Hardware sill mount, split arm crank operator . Used to open and close casement windows.

See SWISCO product 39-172 for the opposite handed version.
5" link arm with a top detachable clip.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

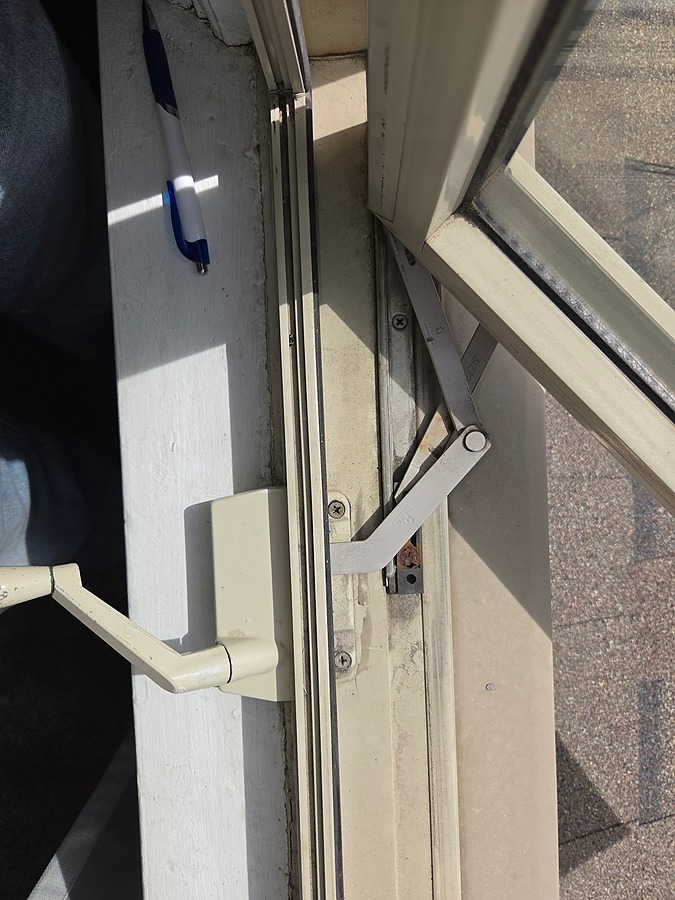

It's a window that hinges from the left, marked as truth 30905 with a weathervane crank. I need The entire assembly if possible upper and bottom.

+3

+2

Bolt/screw to assist widow crank.

Need replacement cranks

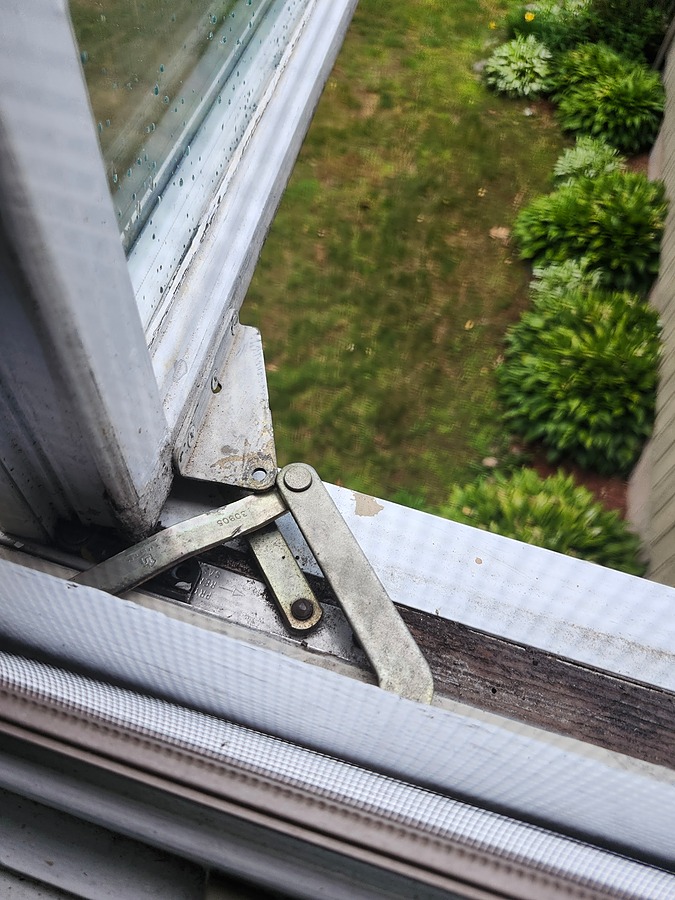

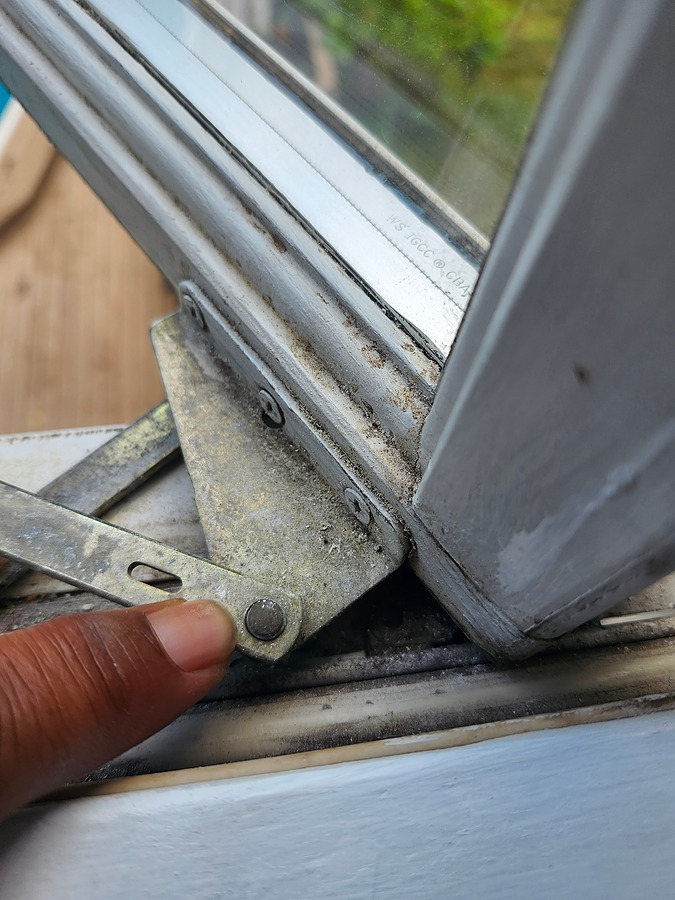

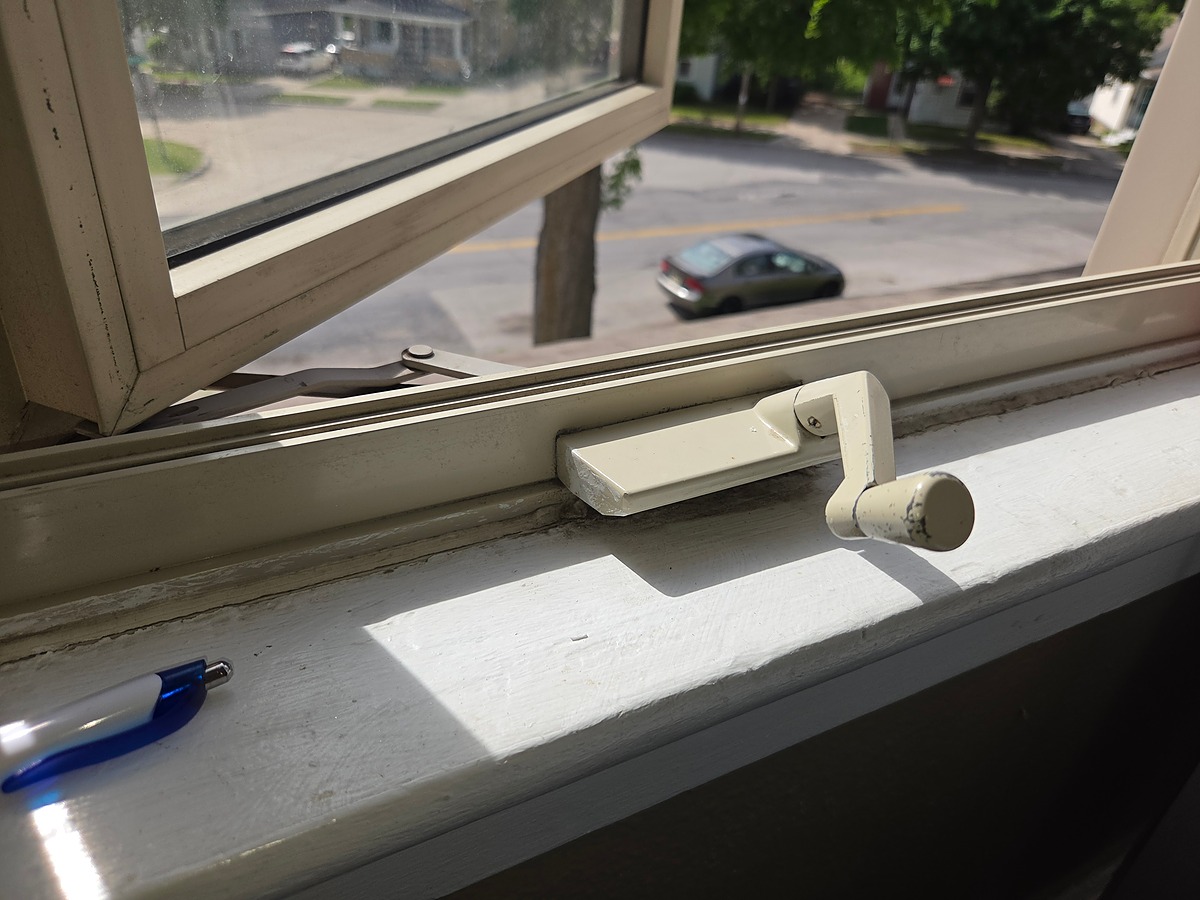

I have the left swinging window shown on the pics and a right swinging window not shown, as it doesn't open. Can you help me find replacement parts for the crank mechanisms?

+1

truth 40887b operator question

I looked thru the other question/answer post but mine seems a little different. Can you guys tell me what works to replace my operator? Thank you, Jamey

Truth window operator replacement

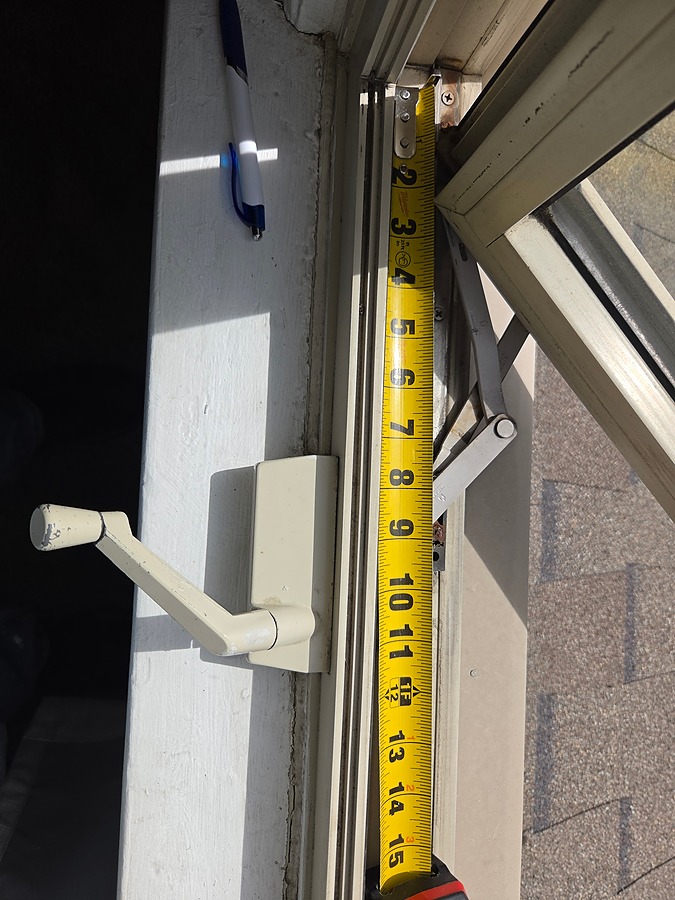

I'm in need of replacement parts for this window operator. This is the Truth 40352 part. I tried the Trith Hardware Dyad operator 39-172 and 39-171, but the arms are too long on those and the window would not close. Is there something you have that is closer to the measurements I need? ... (cont.)

+1
