Product Code: 84-006

Sliding Screen Door "M" Spring Tension Roller

Name: Sliding Screen Door "M" Spring Tension Roller
SKU: 84-006
Price: 2.7 USD
Availability: InStock

$2.70

Sliding Screen Door "M" Spring Tension Roller Image

Quantity	Price
1-9	$2.70/ea
10-24	$2.57/ea
25-49	$2.43/ea
50-99	$2.30/ea
100+	$2.21/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This tension spring replacement roller with nylon concave wheel features a locator pin. The wheel measures 15/16" in diameter and 1/4" thick. This assembly is used by several patio glass door manufacturers.
Installation: remove sliding screen door from track by lifting up and away from door. Remove old rollers by first depressing locator pin with a nail or such. Slide new roller assembly into notch in bottom of door and be sure to insert locator pin into the hole in frame. Re-install door.

Good Idea!

The typical patio sliding screen door uses two roller assemblies, one on each bottom corner of the sliding door. We recommend replacing both sliding door rollers at the same time to prevent extra wear-and-tear to one new roller, which will have to work twice as hard when paired with an old roller.

1 " inch m shaped spring roller for my patio screen

1" inch M shaped spring roller roller

Need screen roller

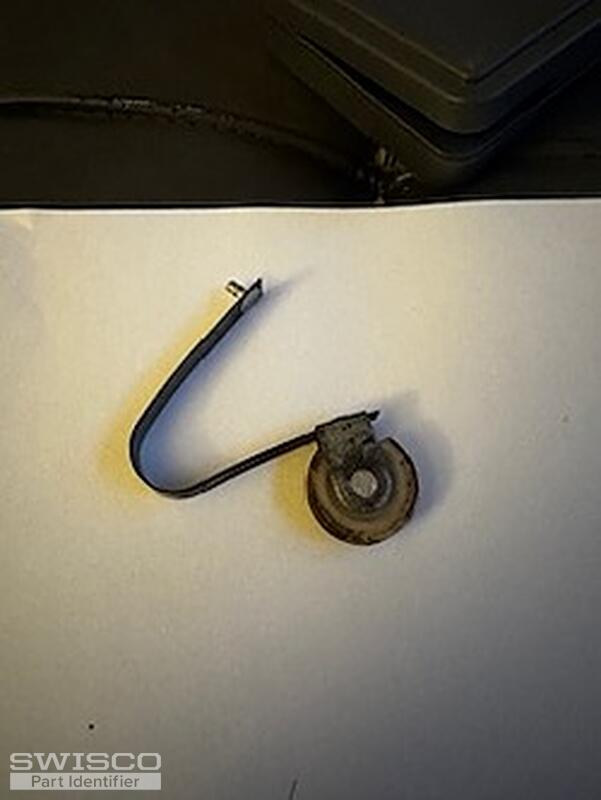

Hi, I need a replacement for the attached screen roller. The measurements are: Metal spring width 11/32 inches, Wheel diameter 1 inch, Wheel width 1/4 inch, Guide pin diameter around 1/8 . It looks like your item 84-084 but it has a guide pin.

patio door rollers

I submitted previous photos about this project. I ordered 4 - part # 84-106.I replaced the rollers at the top of the door easily.These pictures are for the rollers on the bottom of the door. they seem to be different than the top rollers. There are screws on the edge of the door, but they can't b ... (cont.)

Screen Door rollers need replacement

The first two photos are of the top of the door, the 3rd and 4th are of the bottom. The bottom 3rd pic does not rotate, the 4th does turn but does not protrude below the door. The top rollers are fine. But there is no screw holding them in place. They seem to be in a slot in the frame. I don't ... (cont.)

Patio door roller

Can not find correct roller for my 1900 series patio door screen. Please help
