Certainteed Coils balances

Hello,

Thanks for posting! We do not have a replacement for the balance cover, so if you are not able to reuse it, you may need to replace the entire assembly.

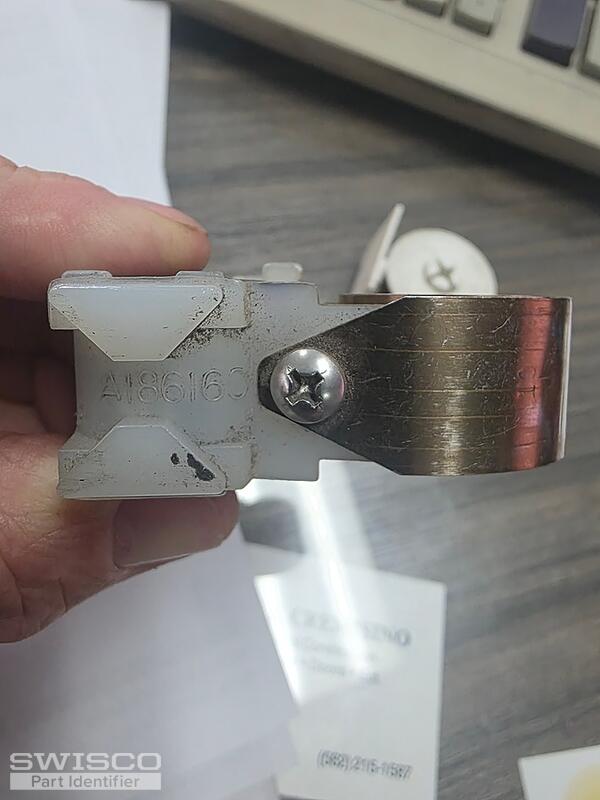

We have been suggesting the 15-259 Coil Balance Pivot Shoe to replace our Simonton assemblies but I believe this will work to replace your Certainteed shoe. The existing pivot bar will not be compatible with it, so you'll also need the 26-083. Their dimensions can be found on the website.

The compatible coil spring is the Series 159 Coil Balance. You'll need the S159-10 for the 10lb spring. The cover/support can be replaced with the 15-255 Coil Single Support.
