Product Code: S159-10

10.5 lbs Series 159 Coil Balance

Name: 10.5 lbs Series 159 Coil Balance
SKU: S159-10
Price: 6.27 USD
Availability: InStock

$6.27

Quantity	Price
1-11	$6.27/ea
12-49	$5.64/ea
50-99	$5.02/ea
100-199	$4.70/ea
200-399	$4.14/ea
400+	$3.82/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

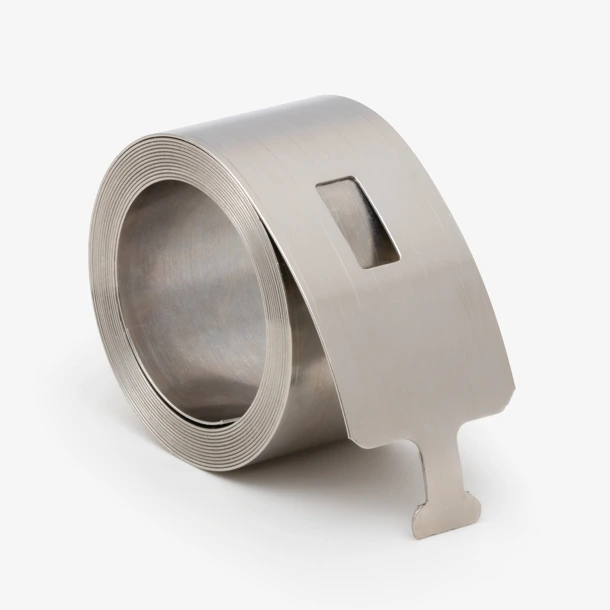

This is a Series 159 stainless steel spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

Individually, this coil balance can hold 10-1/2 pounds. This is added together with the other coils to support the whole weight of the sash.
The weight you need should be indicated as a stamp or imprint on your old spring.
Measures 3/4" thick.
The maximum travel length is 40".
Designed to work with a pivot shoe (sold separately).
This coil balance spring is sold individually, not in sets.
Can work for either the left or right side of the window interchangeably.
Coil balances are also known as constant force window balances.

Certainteed Coils balances

1 - part number A186160 Coil #10 J 1 - H65 32/SM

coil balance depth

Hi, I ordered a set of '10 lb Series 140 Quick-Tilt, SingleS140-10' and installed them. My window is struggling to open and it sort of tilts from side to side on the way up and down. Could it be because of the depth of the coil? My old ones are 3/4" and marked 10J, the new ones are about 1/2". Doubl ... (cont.)

Coil Balance

Hi, I need help finding the correct replacement parts for my window. The pivot shoe is labeled: PAT #5,704,166. The coil balance is stamped with 11 on top and 1 on the bottom. The coil balance is 3/4" wide. The coil support is stamped with 2. The window weighs 20 lbs.

Simonton windows

I have broken coil springs. The sinle spring window is 15 lbs. The double spring window is 20 lbs

Parts for Simonton Windows

Both panels don't stay put and slide to the lowest position under weight. Need all parts to bring the functionality back as original
