Viewing all customer Discussions for:

S159-10 10.5 lbs Series 159 Coil Balance

1 - part number A186160 Coil #10 J 1 - H65 32/SM

Hi, I ordered a set of '10 lb Series 140 Quick-Tilt, SingleS140-10' and installed them. My window is struggling to open and it sort of tilts from side to side on the way up and down. Could it be because of the depth of the coil? My old ones are 3/4" and marked 10J, the new ones are about 1/2". Doubl ... (cont.)

Hi, I need help finding the correct replacement parts for my window. The pivot shoe is labeled: PAT #5,704,166. The coil balance is stamped with 11 on top and 1 on the bottom. The coil balance is 3/4" wide. The coil support is stamped with 2. The window weighs 20 lbs.

I have broken coil springs. The sinle spring window is 15 lbs. The double spring window is 20 lbs

Both panels don't stay put and slide to the lowest position under weight. Need all parts to bring the functionality back as original

What part # would these be? 1st 3 pics are of the balance needed and the other is a cam lock. Distance between cam lock screw holes measure 2 1/16". Came off a doublehung Simonton window purchased in 2011.

I believe my window balance setup is a Simonton. My window coil balance is stamped with - 10J. It's a single coil balance. The bottom half of the double hung window weighs 17 lbs. I'm unsure which coil weight to use as I don't see one for 17 lbs. Thank you,

double hang window with sash weight 35.2 pounds has now triple spring balance but shoe pivot broke at half. Need to replace I guess springs, shoe pivot and pivot bars on both sides of window. I do not know what parts I need. I was wondering if I have to have 3 springs or I can do one spring with 18 ... (cont.)

The only markings I can see besides CHINA is a faint 409 on the coil. This is the bottom sash of a vinyl simonton window. I have many of these similarly broken. You helped me previously on another window of a different type.

The plastic that holds the balance shoe has broken on both sides of the sash. I've sent pics of the info attached to the window. Do you have replacement parts?

I returned Pivot Shoe 15-192 because it has extended rails/guides either side, making it not a suitable fit for my 2007 Simonton brand windows. Please image indicating dimensions of my intact pivot shoe along with image of the ill-fitting pivot shoe. Please recommend a shoe that fits. Thank you ... (cont.)

I cannot determine what balance weight to choose to replace these coil springs. The stamp appears to be 100 on the coil spring. What would you recommend? Thank you!

I need 2 coil balances Thank you Joe

I have several windows where the balance shoe is broken and when the windows tip in they have to be held in place by hand so I need to replace those parts. I can' find any part numbers on anything except img_1220

The following is a list of windows I need a parts estimate for. These are Simonton windows, I tried looking up the coils, but was informed some of the stampings are no longer available, so I weighed each window. 3 windows 32 lbs each coil stamp 408 short tongue 409 long tongue 1 window ... (cont.)

The photo of the broken piece does not show the round metal part that the tilt part in the window slides into. There is no markings I can find. I looked online and couldn't find anything that looked like what I sent. This is a tilt in window.

I am trying to get a coil balance to go onto the coil support. I purchased 4 of each and had no problems with 3. Could either the coil balance or the coil support be the wrong size.

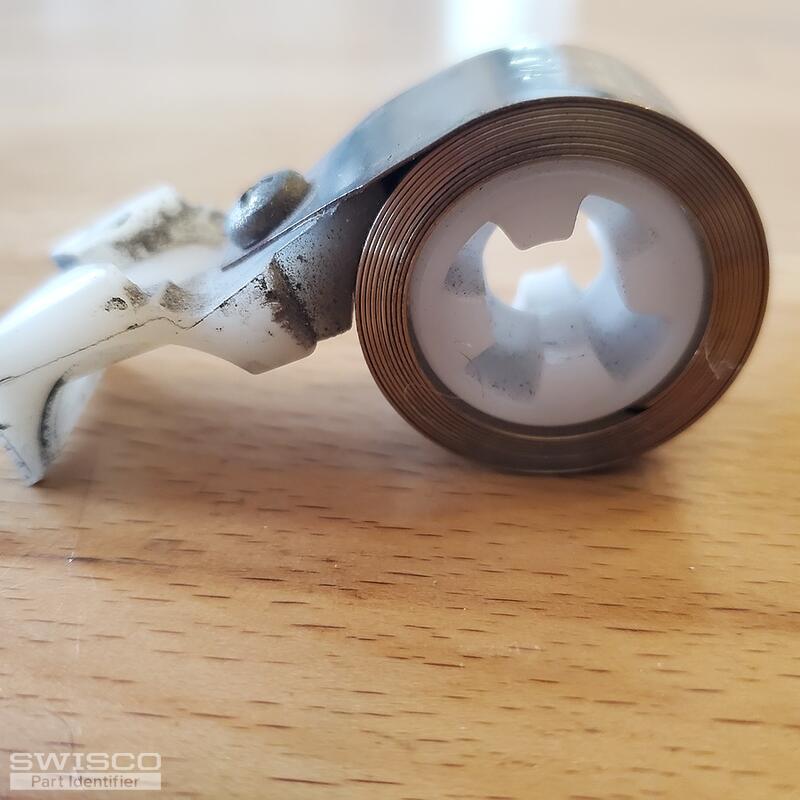

I ordered the 15-259 coil balance pivot shoe, but the coil I have uses screws to attach to the shoe. I am assuming the 15-259 is not correct but I need a different coil/shoe part?

I need to replace these parts with new ones. The sash weighs 30lbs. I have changed similar parts for sashs weighing less then 30lbs but did not find a coil balance that supports 15lbs.

Hi, trying to find the parts to fix my parents window. I am fairly sure the Pivot Shoe is this ( https://www.swisco.com/CertainTeed-Pivot-Shoe/pd/Tilt-Window-Replacement-Pivot-Lock-Shoes/15-192 ) but I don't see the same Sash Pivot Bar anywhere. I also can't get the coils out yet because I didn't ha ... (cont.)
