Casement hinges and crank or handle

Quick Learner
Sep 7, 2024 2:14 pm
Need to buy these parts that are not available at Home Depot and I don't know the original manufacturer. Please tell if you sell these or who I can buy this from. I live in South Florida. Don't mind mail order.

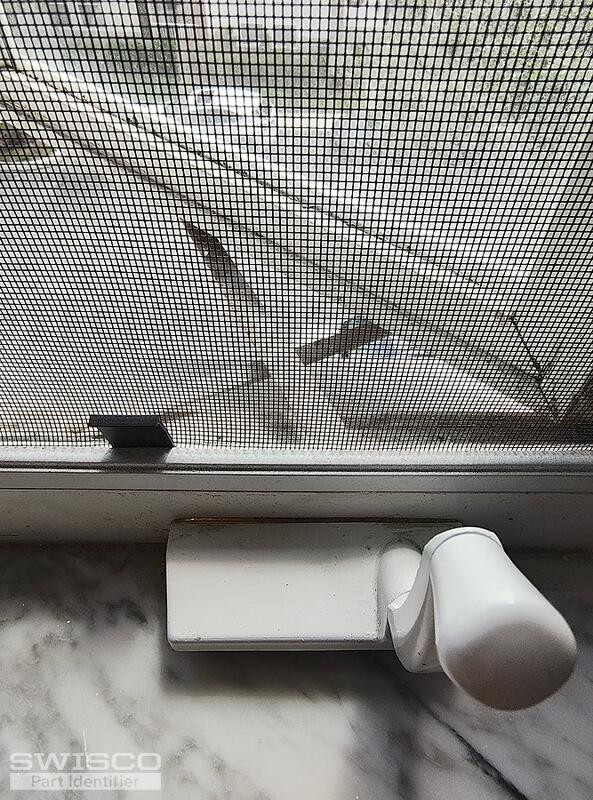

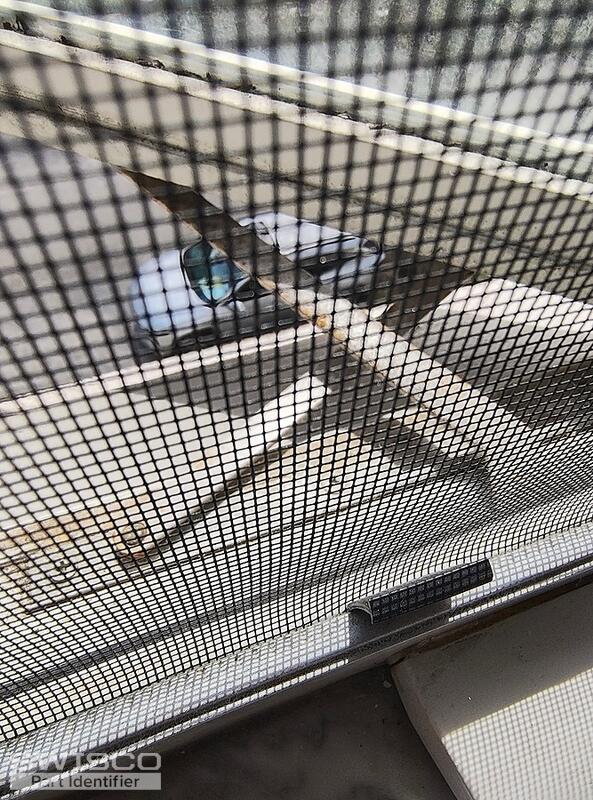

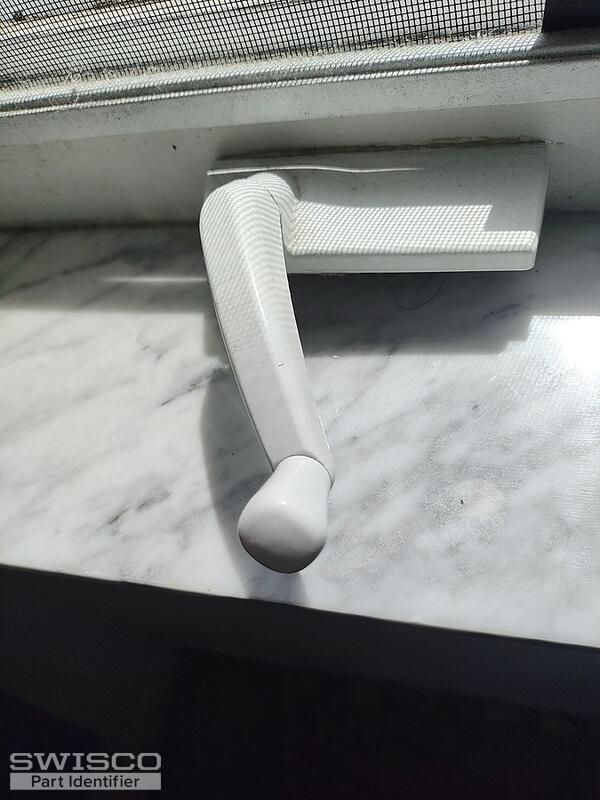

IMG_20240906_113149391_HDR IMG_20240906_113136749_HDR IMG_20240906_113058703
3 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
Sep 7, 2024 4:08 pm
SWISCO
EXPERT

Hello there. This looks like it might be an older version of the 39-013 or 39-027E operators, depending on the length of the link arm. Please compare with the diagrams below. In either case, for a new handle see the 39-114L sold separately.

Dimensions for 39-013
Dimensions for 39-013
Dimensions for 39-027e
Dimensions for 39-027e
