18" Caldwell
Quick Learner from Seattle
Sep 2, 2017 12:57 am
I need to replace a channel balance on my double hung window. The balance measures 18" an has 17 4 AQ CALDWELL stamped on the side.
4 Replies
Tom from SWISCO
Sep 6, 2017 12:17 pm
Definitely sounds like an 18" channel balance with a 1740 stamp option. You verified the length already, so you still need to verify the option, and determine the Series.
Start by identifying the Series based on the channel balance guide, which will have you compare your plastic attachments to our selection.
Once you determine the Series, verify your option by weighing the sliding window sash and comparing to the chart on the item webpage. Check the chart to tell what the weight range for a 1740 option is, and make sure your sash falls within the range. If it doesn't, select the option that works for your weight.
Start by identifying the Series based on the channel balance guide, which will have you compare your plastic attachments to our selection.
Once you determine the Series, verify your option by weighing the sliding window sash and comparing to the chart on the item webpage. Check the chart to tell what the weight range for a 1740 option is, and make sure your sash falls within the range. If it doesn't, select the option that works for your weight.
Quick Learner from Seattle
Sep 6, 2017 2:57 pm
Hi Mike,

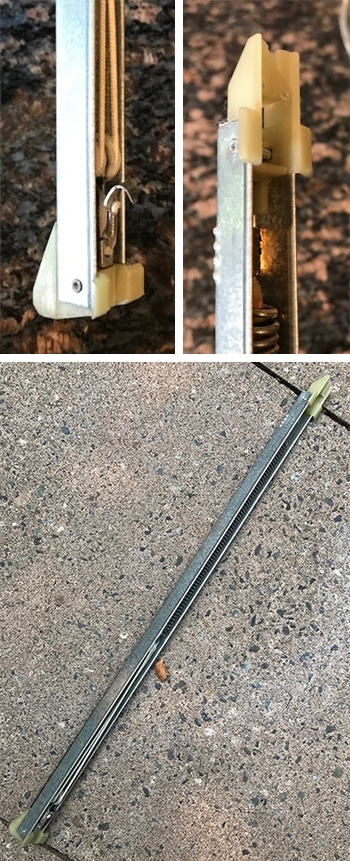

Thanks for your reply. My channel balance with a 1740 stamp option looks like 3 different models. I cannot distinguish if it is an S350, S380 or S385. It's 1/2 inch wide with no holes in the side channel and 4 bumps on the side. Attached are 3 pictures.
Which one do you think it is?
All the Best,
Anne Totah
Thanks for your reply. My channel balance with a 1740 stamp option looks like 3 different models. I cannot distinguish if it is an S350, S380 or S385. It's 1/2 inch wide with no holes in the side channel and 4 bumps on the side. Attached are 3 pictures.
Which one do you think it is?
All the Best,
Anne Totah
Tom from SWISCO
Sep 11, 2017 11:05 am
It's S380-18 or S385-18. Series 350 is definitely not it. Measure your bottom shoe to determine which you need. Series 385 uses the plastic shoe shown below, measuring 1-3/32", and the Series 380 uses a 1" shoe instead.
Comparison of the S380 and S385 balance shoes.
