2 ft by 4 ft crank window hinges

Question

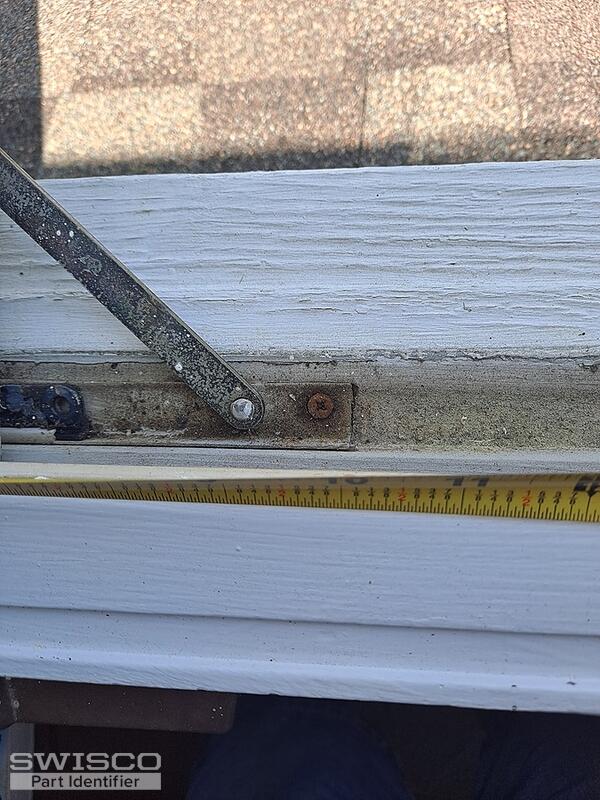

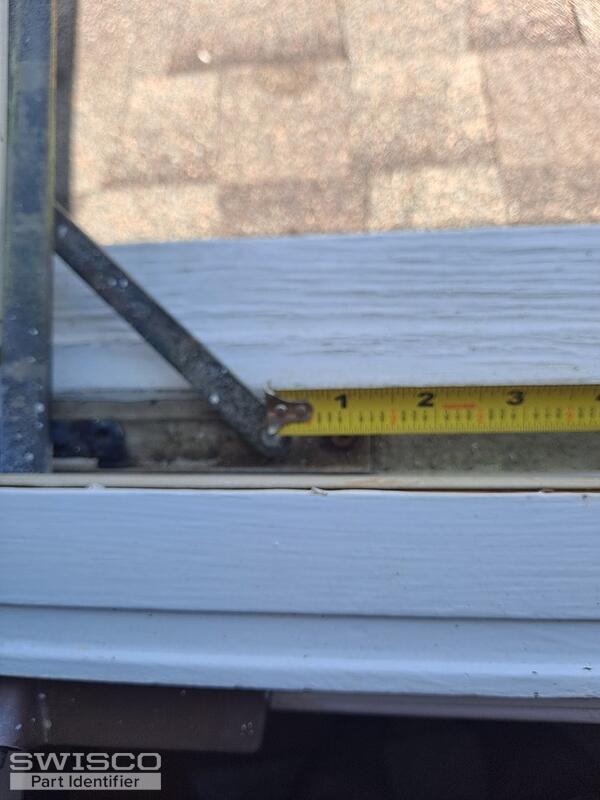

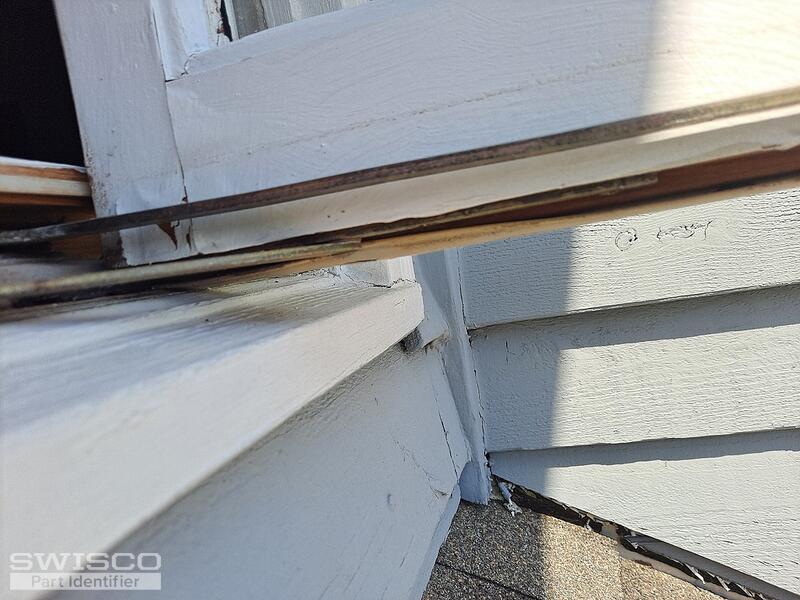

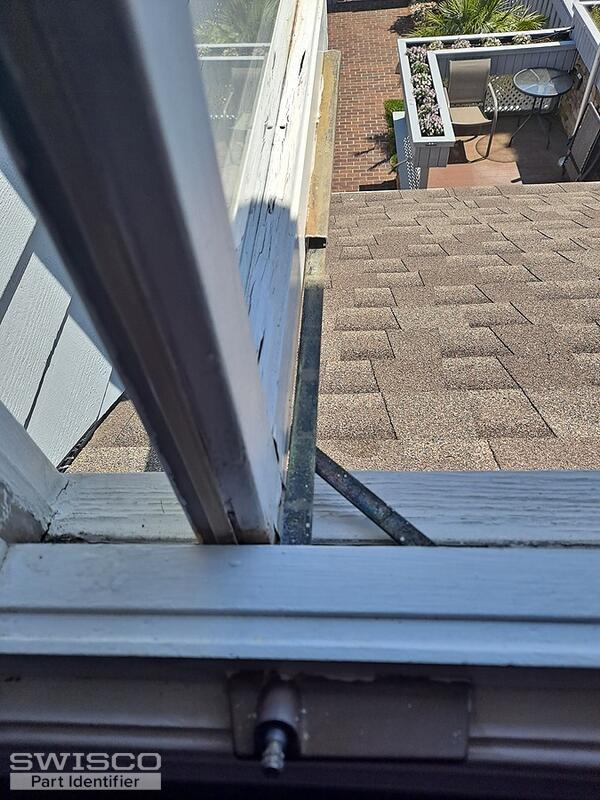

I'm looking to replace a broken lower hinge on my 24" by 48" crank window. it's the bottom hinge on the left side on a double crank window. It looks like the parts you have are one piece crank arm and hinge ?
Thanks,
Mike

Jasmine · Accepted Answer

Thanks for posting. Your casement operator looks like an older version of our 39-014. Look over the dimensions and compare them to your existing hardware to confirm that this is the right replacement for your window. The opposite side is part 39-013 and they are available in bronze.

Dimensions for 39-014

Additional information for 39-014

The compatible handles are the stand handle, part 39-11L or the folding handle, part 39-205. If you are looking to replace the tracks as well, take a look at parts 39-505 and 39-533. You'll need to compare the dimensions to confirm that this is the right replacement.

In regard to your hinges, take a look at our 36-048. Carefully compare the dimensions to your original to confirm if this will be a fit. Keep in mind you may need to drill new holes to install this. You'll also want to replace both the top and bottom hinge so that the hinges operate the same. These hinges can work for the right and left sides of the window.

Detail of 36-048

Additional dimensions for 36-048

Feel free to reach out with any questions.
