2004 MW vinyl window broken

Home Owner from USA
May 31, 2024 11:24 am

House window broke.

I need 2 balancers and 2 pins.

Please help me find the correct parts.

The stamp on balancer, 38 inches long, housing reads.

38E.

PB BS1

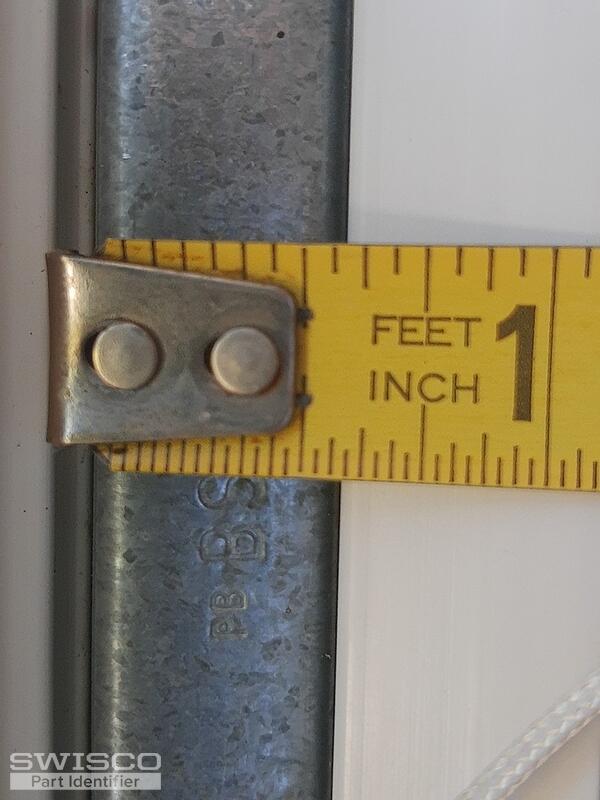

Photo ending in 3103 is width of balancer housing.

Let me know what additional information or photos that may help.

Thank you

PrestonĀ

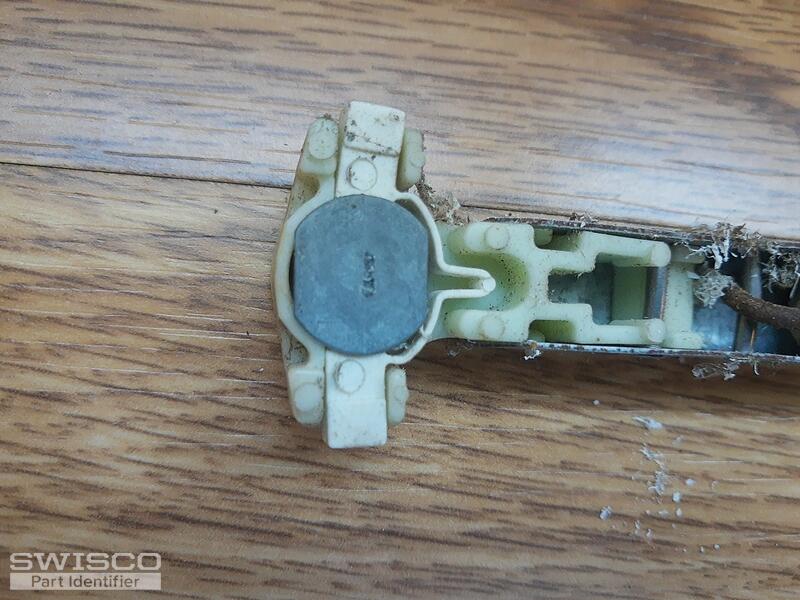

pivot bar end pivot bar end t lock shoes t lock shoe channel width
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
Jun 4, 2024 2:33 pm
SWISCO
EXPERT

Hi there Preston.

Thank you for reaching out to us. This appears to be a match for the Series 795. However, this must be a custom order since your old stamp isn't a stock option of ours. Can you confirm how the balance mounts to the top of the window track?

We're happy to help with the pivot bar but I'm afraid it's too damaged. May we see an undamaged version removed from the window sash?

Home Owner from USA
Jun 4, 2024 3:40 pm

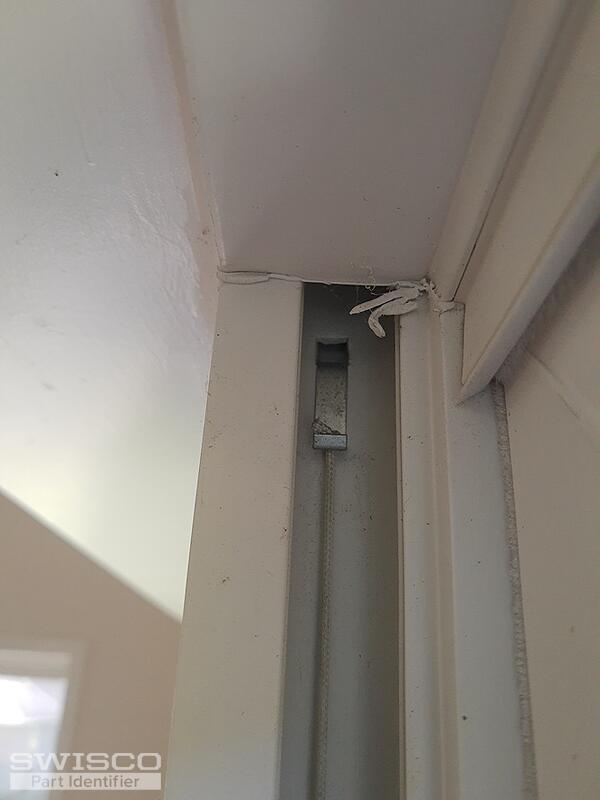

There is no mounting for the top of the balance. There is a clip on the end of the string that goes in a hole or slot in top of vinyl. Photo attached for working assembly

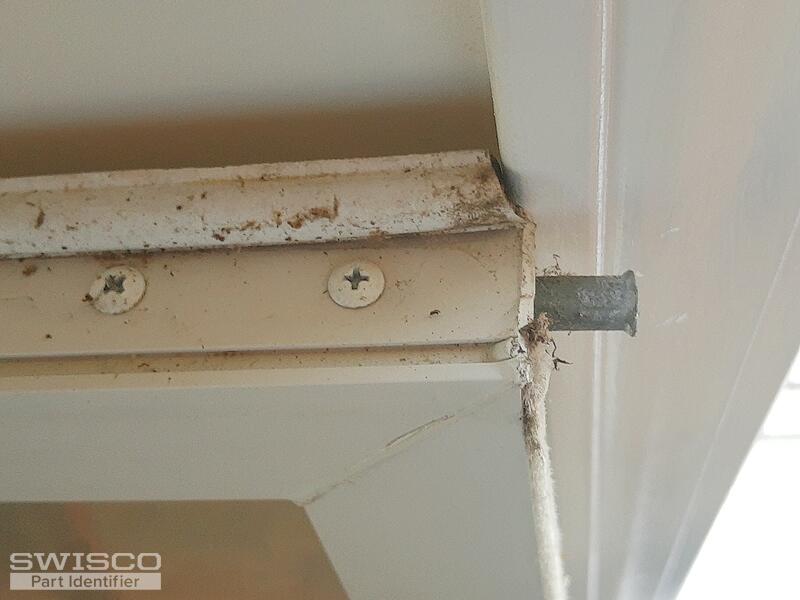

The pivot bar, I have not removed yet, really don't want to do that now. The bar is flat. I attached photo of what shows on an unbroken pivot bar
.
installed pivot bar hook attachment
2 user uploaded images
Emily
Emily from SWISCO
Jun 5, 2024 9:25 am
SWISCO
EXPERT

Thank you for the additional photos. It looks like your balance mounts with a hook. I'll go ahead and email you an order link for (2) S795-38 balances with the 38E stamp and 15-198 hook that you can use to place an order on our website. Please note that there is a 5-6 week lead time as well.

The 26-360 comes to mind for the pivot bar but I recommend you compare the specifications to confirm. This isn't included in the order link so don't forget to add the desired quantity to your cart separately.

Alternate image for 26-360
Alternate image for 26-360

End detail of 26-360
End detail of 26-360
