2213 BSI LJ

Professional from Kailua Kona, hawaii

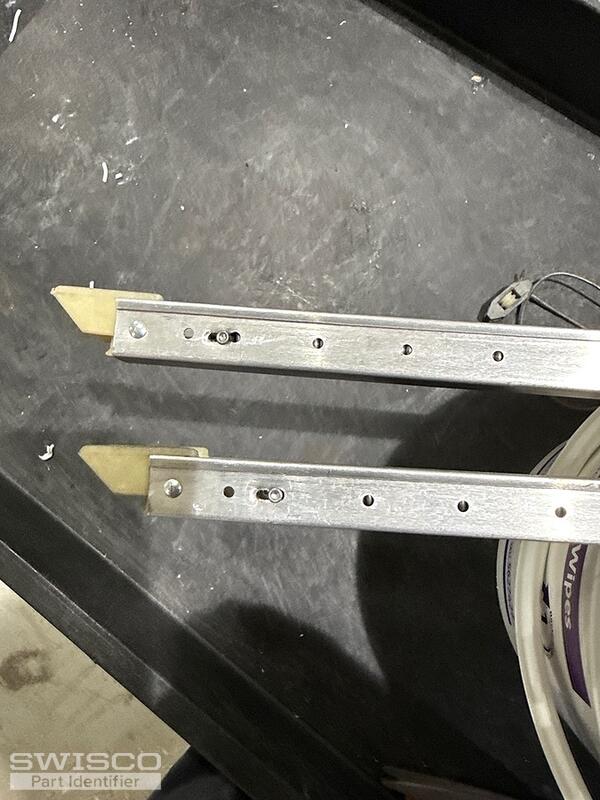

23" long by 5/8" wide
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

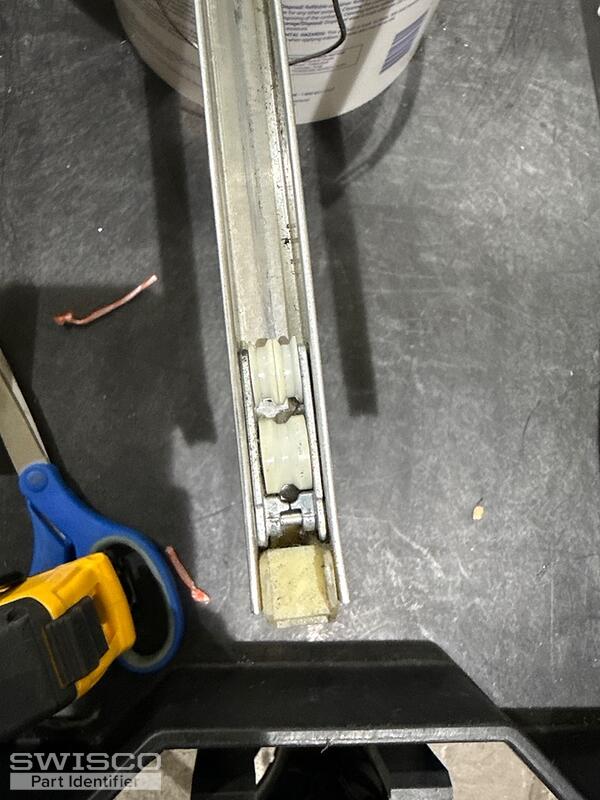

Thank you for reaching out to us. Your balance looks like a match for the S351-23 and S390-23. The important difference is the depth of the bottom shoe, so you'll have to measure as shown below.

You will also need to weigh the window sash on a scale to determine the correct stamp option since the old one doesn't match any of our options. There's a chart under the S351-23 and S390-23 product descriptions that you can use as a reference.

Please let us know if you have any questions.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Professional from Kailua Kona, hawaii
Thanks for your reply. I weighed the window it is approximately 7.8 kg or 17 lbs. the measurement of the the shoe is 1 1/8 ". the window higth is 24" and width is 34 1/8"
Emily
Emily from SWISCO
SWISCO
Expert

In that case, see the S390-23 with the 2230 stamp option. A pair of balances with this stamp will support a sash weighing 12 to 19 pounds.
