23 lbs sash 29" tall. single hung constant force

A contractor from Indianapolis says:
October 3, 2019
Spring block is 1-1/4 inch wide and 5/8 inch thick. Window support lug is 3/8" long from edge of window to head and head is 3/8" wide at its widest, approximately 1/8" at its thinnest. 23 lbs sash weighed alone. 29" tall sash
Thumbnail of the uploaded file named 15700791110337579243664487822270.jpg
Thumbnail of the uploaded file named 15700792096021522257593075545443.jpg
Thumbnail of the uploaded file named 15700792732482437254387554181030.jpg

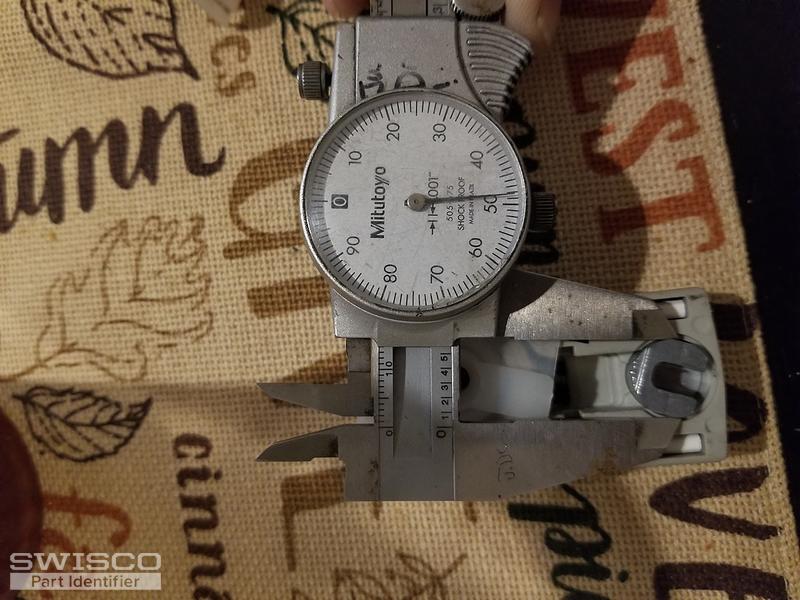

Thumbnail of the uploaded file named 15700793105855880199103697534029.jpg

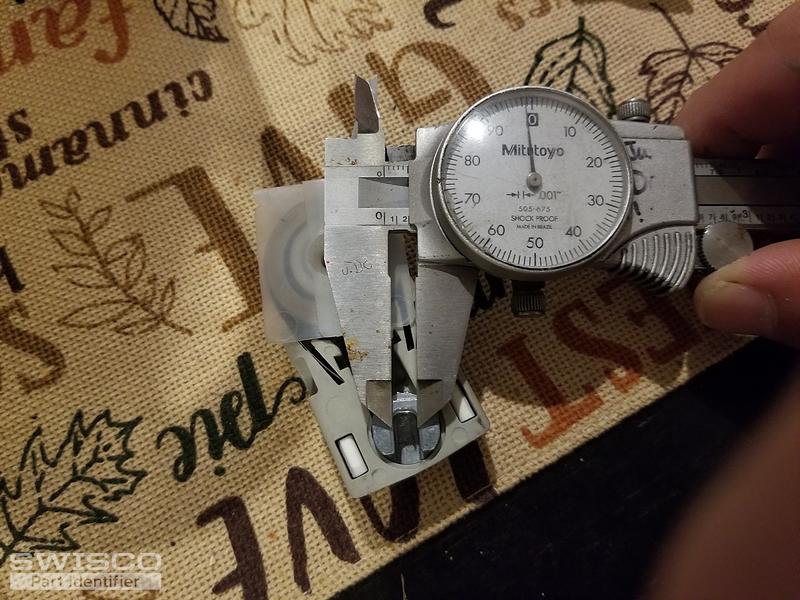

Thumbnail of the uploaded file named 15700794108348540194453611442540.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 8, 2019

Thanks for contacting us. Your pivot shoe looks like our 15-177, which itself is compatible with our Series 152 coil spring. Look these parts over and let me know what you think. Your cover looks to be in good condition so you can probably still use that.

As for what Series 152 option to use, it depends on how many springs are used to support it. 23 pounds is pretty heavy so I would imagine you use four springs. If so, I recommend our S152-6. It'll be a little stronger, supporting 24 pounds, but I think that will be fine.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
6 lb Series 152 Coil Balance
6 lb Series 152 Coil Balance
S152-6
$4.80
