26C

Question

Hi there -

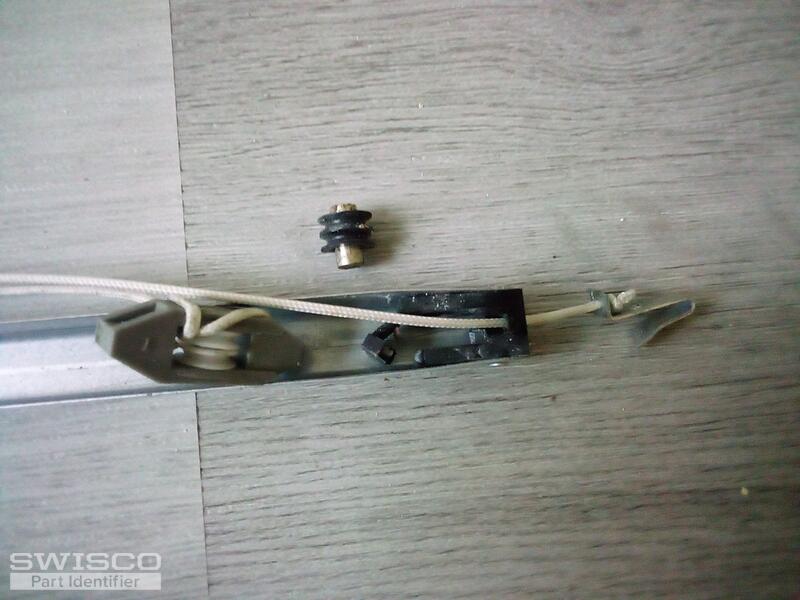

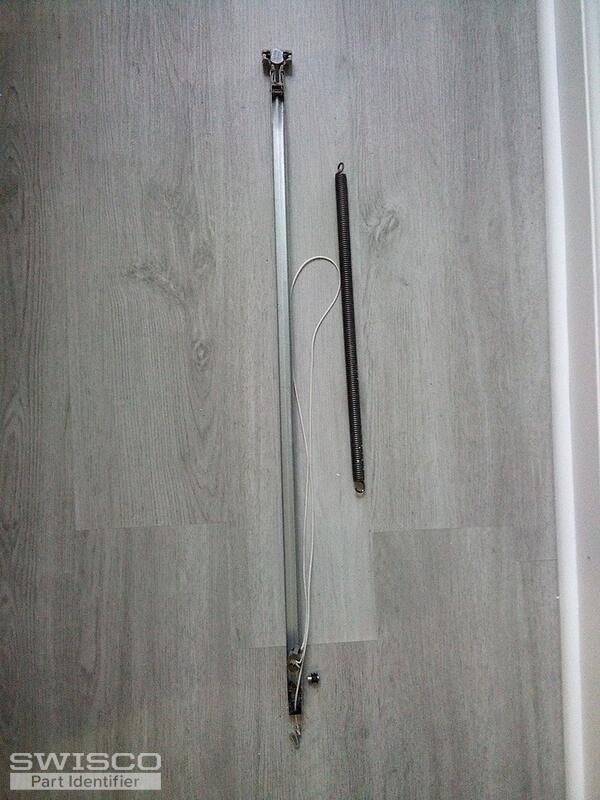

Hoping you can tell me which part I need. The only marking on these is in one of the attached pics. It says "26C", then what looks like "BSI", then written smaller and sideways "RN".

Please advise. Thanks!

Dennis

Emily · Accepted Answer

Hey, Dennis.

Thank you for reaching out to us. This looks like our Series 795 channel balance with the 26C option but you'll notice that this installs with a screw tab, unlike yours which uses the 15-198 hook. We'd be happy to provide this configuration via custom order if that interests you.

Another option would be the use the stock S795-26 with the 26-200 screw plug since the hole at the top of the jamb is square. See the video below for more information.
