26C Replacement balance

A quick learner from Camdenton, MO says:
I am not sure what cam lock end I need

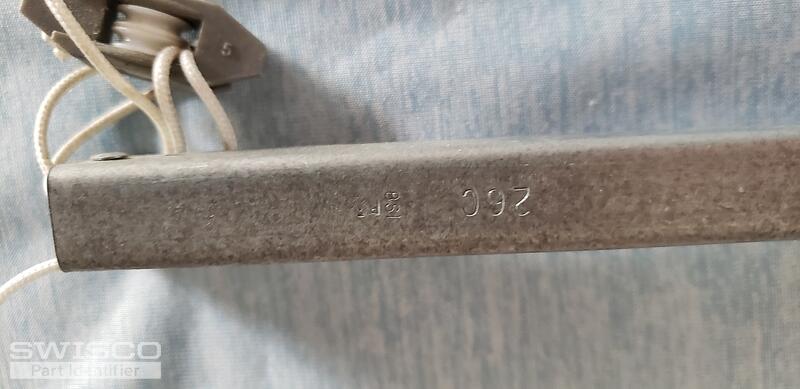

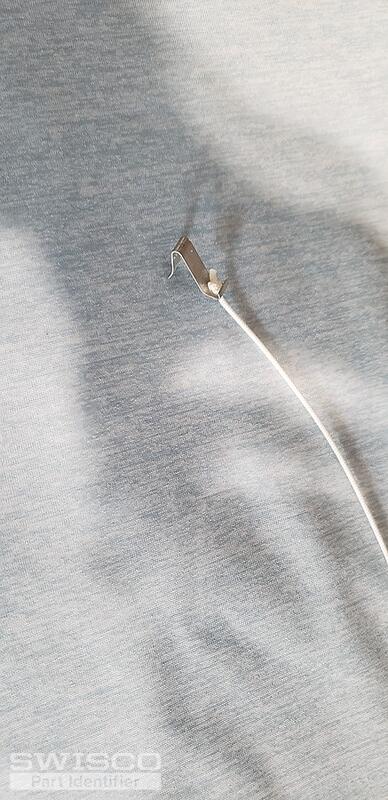

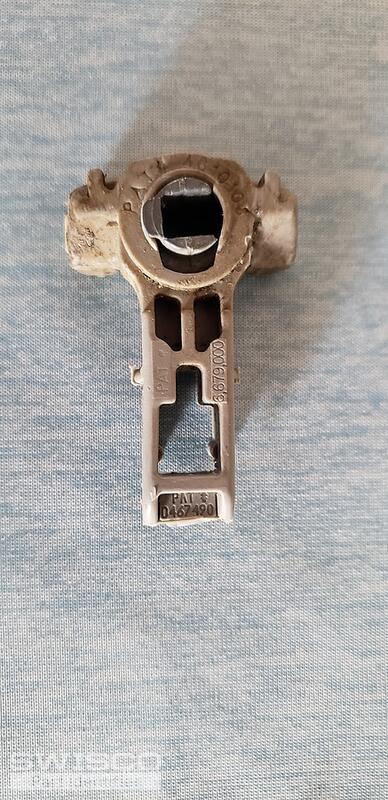

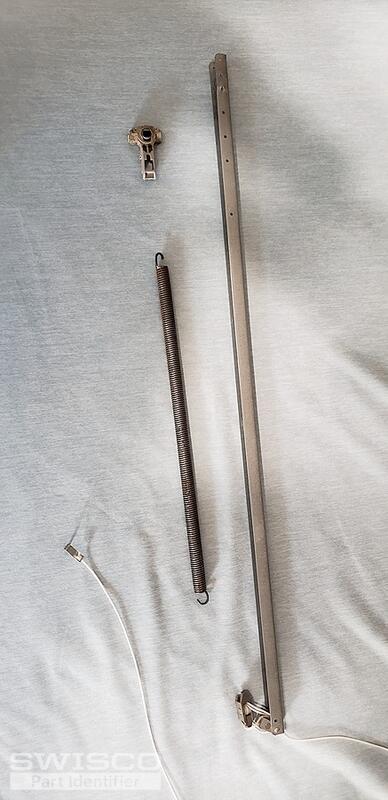

Thumbnail of the uploaded file named 20221107_110350.jpg
Thumbnail of the uploaded file named 20221107_110337.jpg
Thumbnail of the uploaded file named 20221107_110323.jpg
Thumbnail of the uploaded file named 20221107_110305.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the 15-195 T-lock shoe to yours. If you need new balances for your window, we'd be happy to supply them but it would need to be a custom order since our S795 balances do not come with the 15-198 clip shown in your photos. We'd just need to confirm the number of balances that you need, with the minimum order being two, to send you an order link and price quote. Thank you!

A quick learner from Camdenton, MO says:
Yes I would take 2. Please send price quote

Do you have videos of these being installed?
Profile picture of Casey
Casey from SWISCO responded:

We just sent over an order link and price quote for the balances you've requested, as well as the installation video below for the S795 shown at 3:15. Take a look and let us know if you need anything else. Thank you!

A quick learner from Camdenton, MO says:
I also need a couple of latches. Both latches come from the right side of the window.

Length 3 7/6"
Width 1"
Holes are 2" on center
Profile picture of Casey
Casey from SWISCO responded:

We'd be happy to look into this as well but we'll need to see photos of the original latch to compare to our inventory.

A quick learner from Camdenton, MO says:

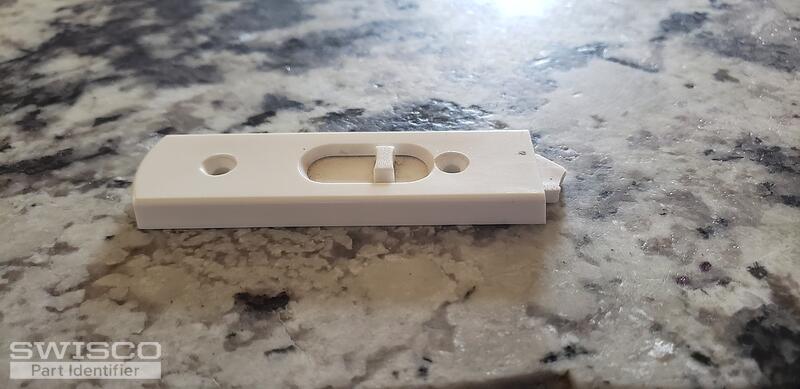

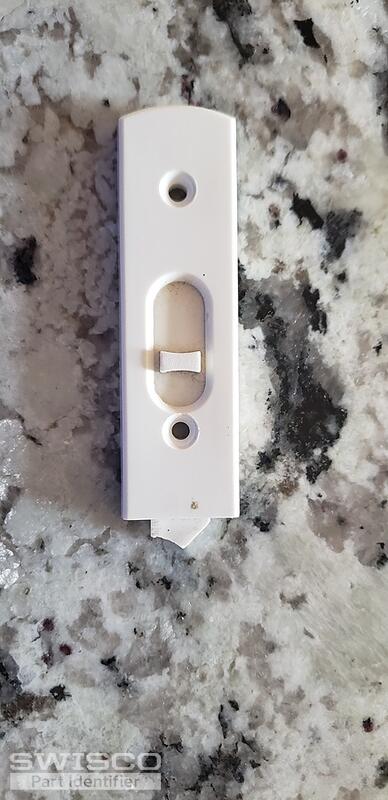

Thumbnail of the uploaded file named 16684426869129173009129910919716.jpg
Thumbnail of the uploaded file named 16684427413754508593319716353669.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Take a look at the 26-435 top tilt latches to see if these could work on your window. Take note of the end of the tilt pin to see if it would fit in your track and if the holes line up with the installation hole placement in your sash. Thanks for posting.

Alternate image for 26-435
Alternate image for 26-435

A quick learner from Camdenton, MO says:
I have been a bad boy and did not follow through fixing this window in the winter

I did not order the parts. Can you send me a new order link?
Profile picture of Casey
Casey from SWISCO responded:

No problem at all. We just sent over an updated order link for you. Just let us know if you need anything else!

A quick learner from Camdenton, MO says:
I also need one of the 26-435 latches

Can that be added to the other so I pay only 1 shipping charge
Profile picture of Casey
Casey from SWISCO responded:

Sure, you are welcome to add the custom order link and a pair of the 26-435 tilt latches to your shopping cart and purchase them together.
