27" Channel balance replacement

Start a new Discussion

Contractor from Goldsboro

Jul 9, 2012 11:11 am

I'm looking for a 27" 1/2"x1/2" replacement balance for a tilt sash.

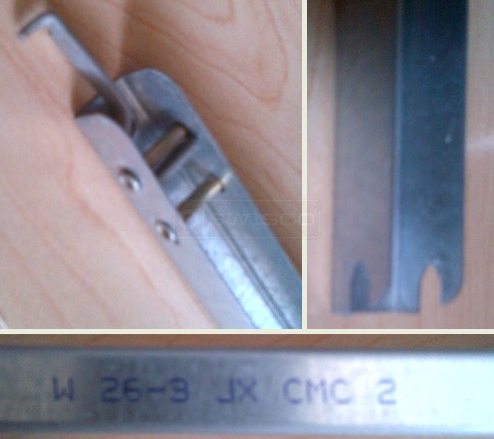

A customer submitted photo of channel balance attachments.

4 Replies

Tom from SWISCO

Jul 9, 2012 1:41 pm

Thanks for posting! It looks like you may have had something attached to the bottom of the channel balance. Perhaps a shoe, or some other plastic attachment. Before I can recommend an applicable replacement for this hardware, I will need to see that part. Do you still have it? If not for this balance, is there another balance in your house, or perhaps that very same window, that has it? Let me know!

Contractor from Goldsboro

Jul 13, 2012 11:06 am

The only parts intact on the right side of the window are the shoe and metal channel. Everything else is missing: spring, string, pulley, anchor. Thank you for your assistance.

A user submited photo of window operator

Casey from SWISCO

Jul 31, 2012 7:18 pm

We just added balance Series 765 online for you.
Please see SWISCO product code S765-27, looks like you have stamp option 26-3.
