27" metal block and tackle balance

A handy person from Georgia says:
27" vinyl block and tackle balance

26-5 stamp on top

BSIN horizontal stamp along with vertical RV stamp
Thumbnail of the uploaded file named 15814279559726363936547651510838.jpg
Thumbnail of the uploaded file named 158142801237927875819553728261.jpg
Thumbnail of the uploaded file named 15814280304077553637976823771240.jpg
Thumbnail of the uploaded file named 15814280475044456220499186020454.jpg
Thumbnail of the uploaded file named 15814280665201247299645083315960.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. This looks like a Series 795 Channel Balance. We need a little more data to confirm exactly what you need, however. Confirm that the metal channel, not including the T-Lock Shoe on the bottom or the hook on top, is 27" long. You'll need to obtain the exact weight of your window sash to determine what stamp option to select.

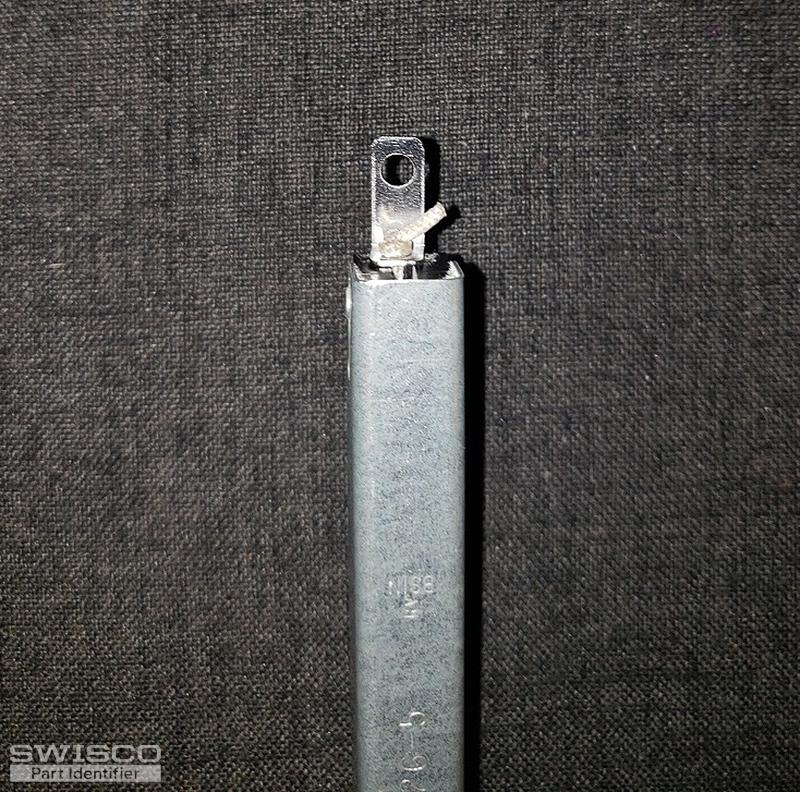

It appears your balance has a hook like our 15-198 attached to the top that it uses to connect to the window track. Our standard Series 795 balances use a screw-on tab instead. This may mean we need to custom build balances for you that have this hook; there may be an alternative solution however. May we see the hole in the window track that this hook attaches to? The shape of that hole will tell us what you need.

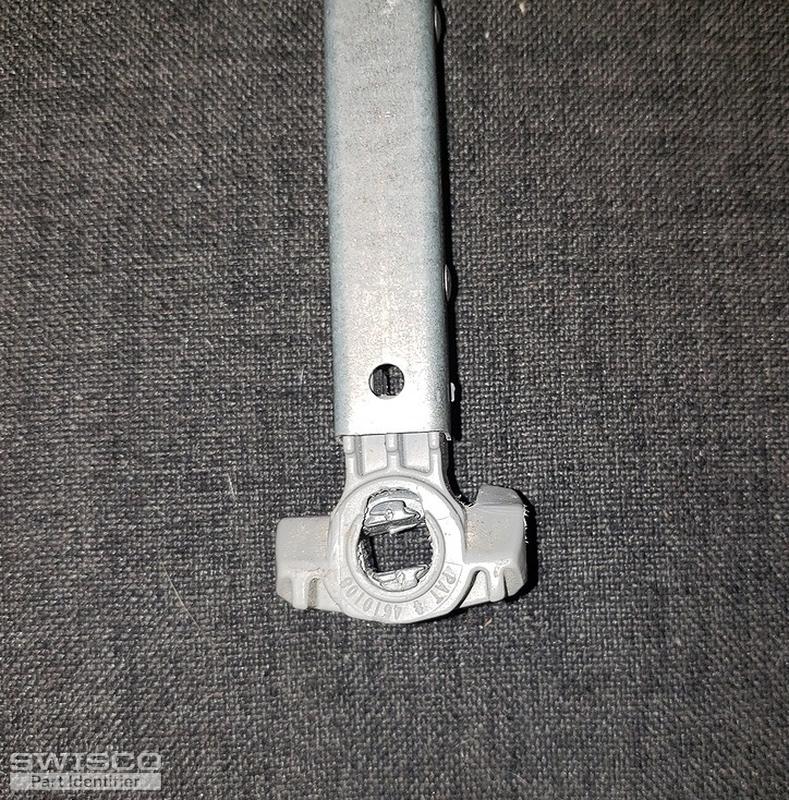

Finally, the bottom T-Lock Shoe looks like our 15-195B Open Cam 1-1/4" Shoe. Compare to confirm. Once you get back to us with this information, we can get all this started for you. Many thanks.
