27c channel window balance.

A quick learner from Georgia says:

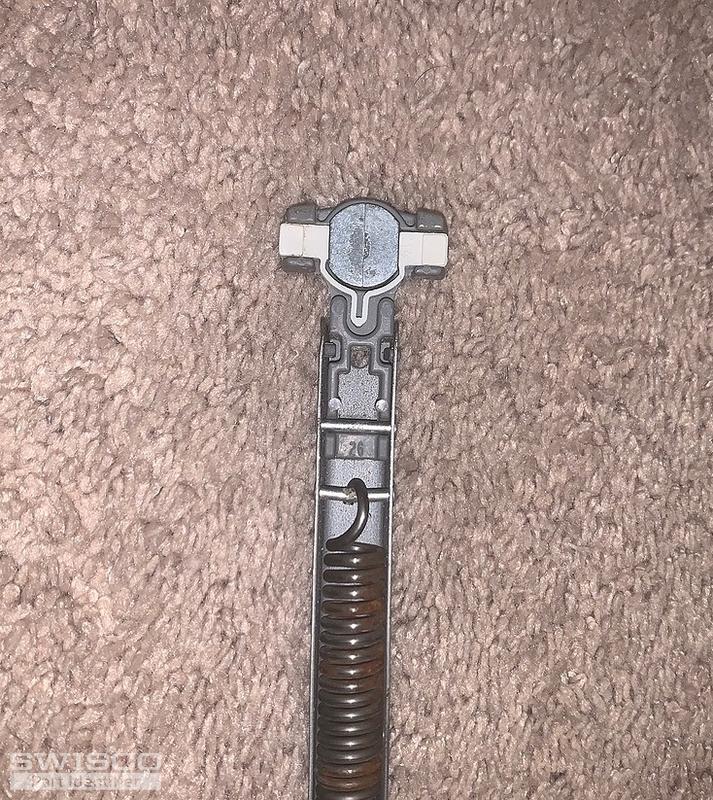

Looking to replace these on my window. Has marking 27c on it. Measures 27" long. 5/16 wide and deep. Single hung window. It has the metal clip style
Thumbnail of the uploaded file named 78FBD637-E471-493C-B093-0D46F14C8602.jpeg
Thumbnail of the uploaded file named 2713A64F-666D-4B14-88F7-BE9893EA9A53.jpeg
Thumbnail of the uploaded file named 453E00CD-A3B9-4643-ACBD-24F7DDC8CF16.jpeg
Thumbnail of the uploaded file named 4AF33AB4-AAB4-41A6-AA53-F21834435DF9.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. We can certainly replace this Series 795 balance for you, but I want to narrow down a few things first:

  • Does your T-Lock shoe more closely resemble the 15-195 1-1/4" shoe, or the 15-194 1" shoe?
  • We can custom make these balances with the 15-198 hook attached, but there might be another solution. Can you show us the hole in your window track that this hook attaches to? The shape of the hole is a clue that can help us narrow down what you need. Many thanks.

A quick learner from Georgia says:

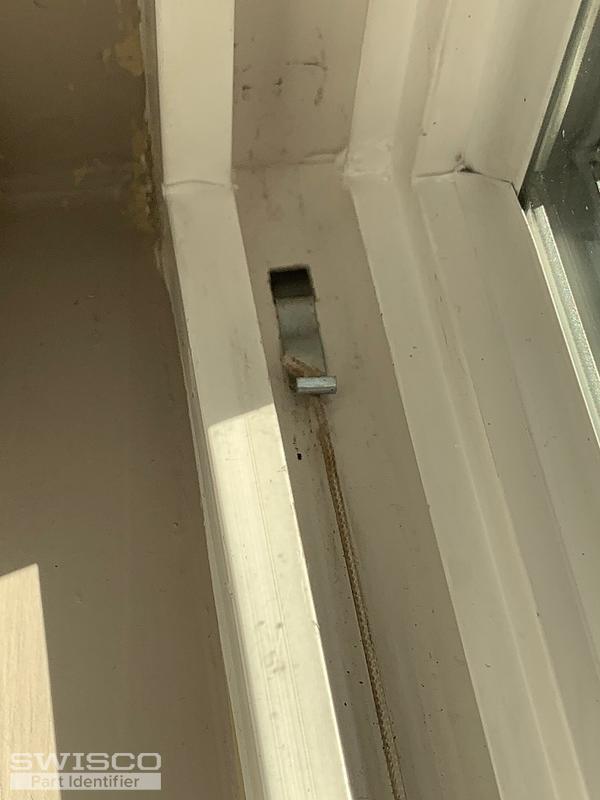

My T at the bottom is 1 1/4. Here is the holes notches not where the spring goes. Thanks
Thumbnail of the uploaded file named 77C9F312-CC1B-435A-9313-94C1A96AAB79.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for getting back to us! Looks like the hole for the old hook is square shaped, which just made this a whole lot easier. You should be able to use our standard S795-27 channel balance as-is. This comes with a screw clip, not a hook, but I have a little trick for that. If you also purchase our 26-200 screw plug then you can pop that in that square hole and install our S795-27 without any issue. No custom order necessary.

Let me know what you think!
