34 inch long Balance for weather shield window

Home Owner from Madison, WI

Jun 8, 2019 4:33 pm

I have a broken balance with a label of (DB F04) 33TGX. (See photo) It is 34" long, 9/16" wide and because of a little extra bevel? It is about 5/8" deep. (See other photo) this is for a weather shield, single hung window which is 40" wide and 69" high.

I've not been able to find a replacement through the manufacturer. Do you have one which may be equivalent?

Thanks

2 user uploaded images

6 Replies

Tom from SWISCO

Jun 11, 2019 1:17 pm

Looks like a ribbed channel balance for a tilt window. That's about all I can say, though. Can you show me a photo of the shoe or clip that was at the end of the cord? Can you also show me a picture of the top of the balance where it installs in the track? That will help us determine the Series.

Home Owner from Madison, WI

Jun 16, 2019 3:58 pm

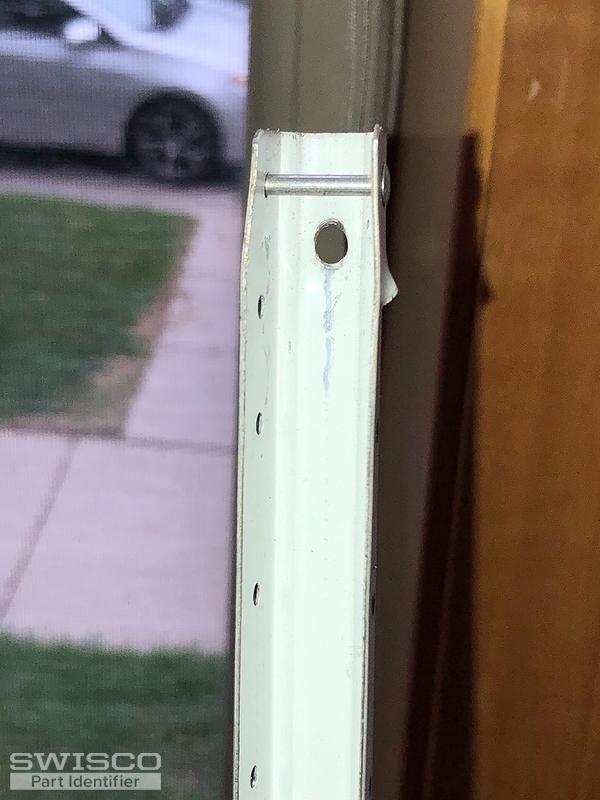

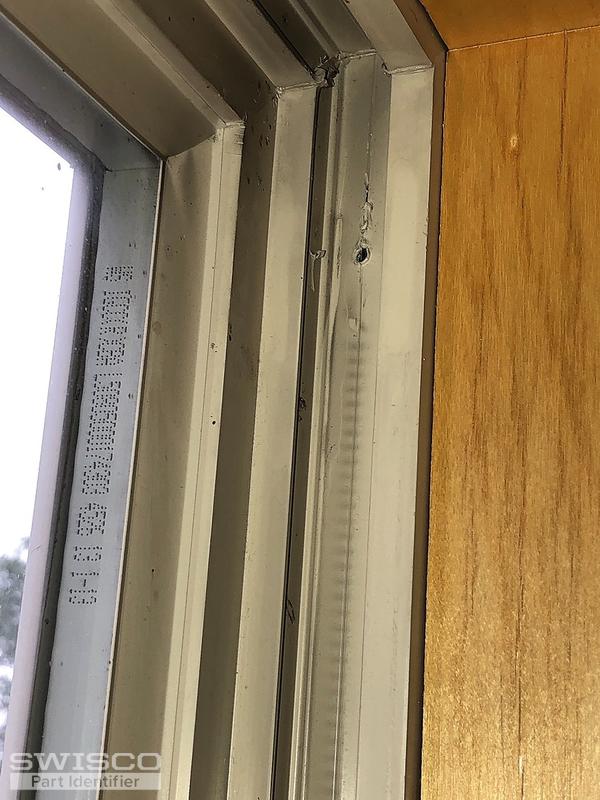

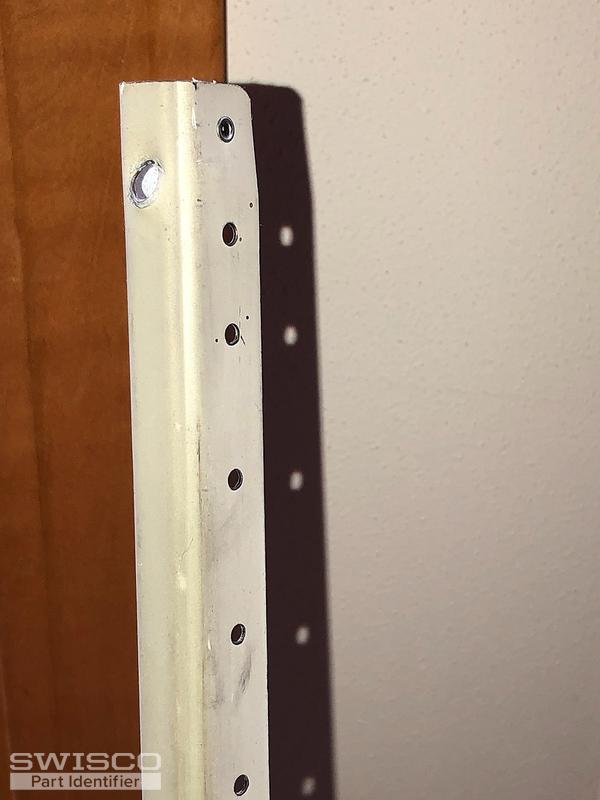

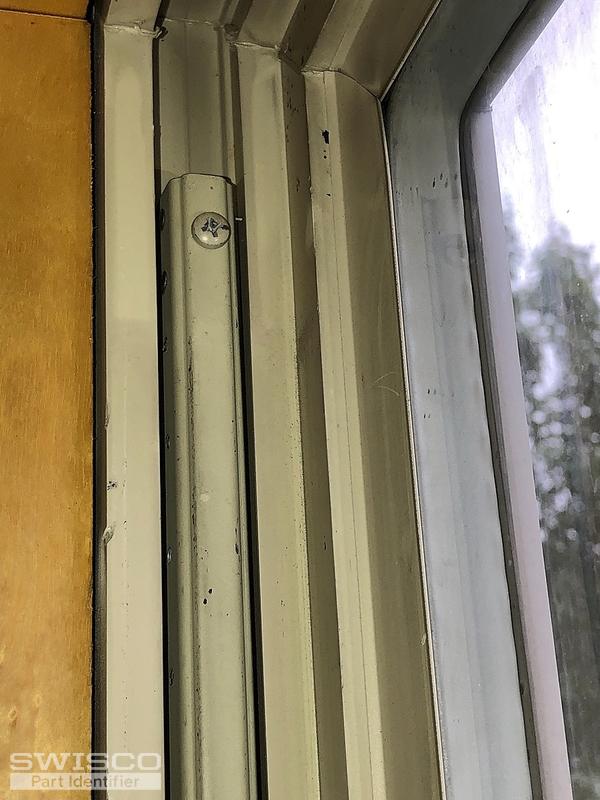

Thanks for the response. I've attached several photos. Hopefully it is useful. It appears that the shoes are cracked and broken. On both sides of the window.

Thanks again,
Alan

5 user uploaded images

Tom from SWISCO

Jun 17, 2019 7:37 am

Thanks for getting back to me. This looks a S751-34. The only thing I'm certain about is the identity of your balance's locking shoe. The S751-34 comes default with the 15-014 Knife Lock Shoe; however I would remove the balance and shoe from the window track and make sure the shoe does not more closely resemble the 15-197 Great Lakes Shoe. Compare and let us know.

Home Owner from Madison, WI

Jun 25, 2019 8:51 am

Thank you for the feedback! I'll take a look at the shoe in the next couple weeks. I really appreciate the help!

Tom from SWISCO

Jun 25, 2019 11:36 am

Perfect! We're here whenever you need us.
