34B

A quick learner from Montpelier, VA says:
What do I need to order for replacements and the latch on the spring fits in a hole drilled in the sash.

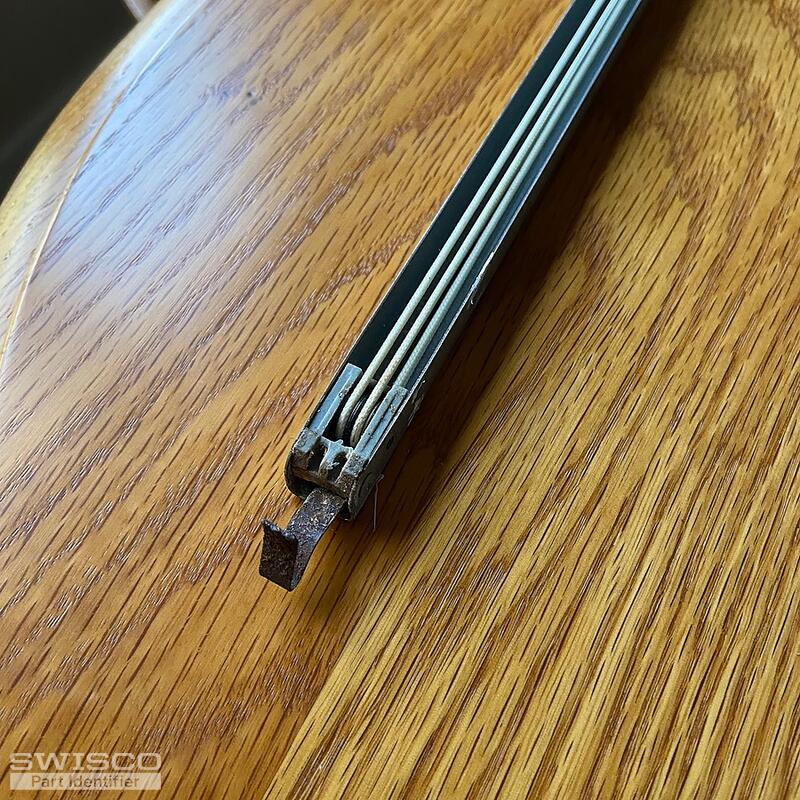

Thumbnail of the uploaded file named 95AF70E0-3A92-4905-A44F-F7E47229683A.jpeg

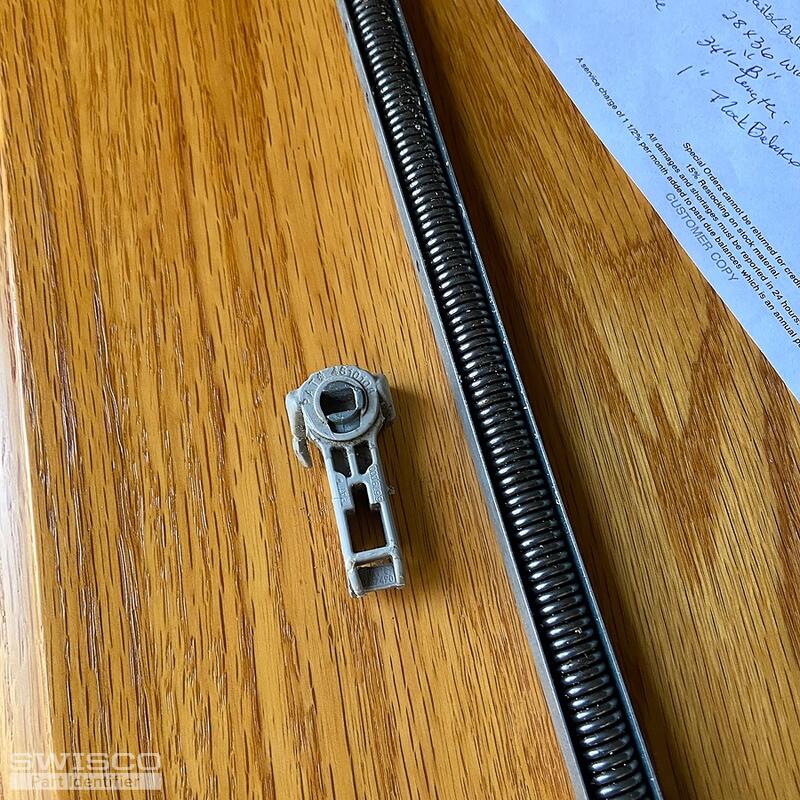

Thumbnail of the uploaded file named FD66FD22-227E-44B3-8E64-D26FA404C395.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Your balance resembles our S795 except yours uses the 15-198 clip instead of a screw tab. It also looks like you have the smaller 1" wide 15-194 t-lock shoe. We can supply these balances with the specifications that you need but it will need to be a custom order. We'll just need you to confirm the number of balances that you need, with the minimum being two, to send you an order link and price quote. Thank you!
