8 swing window hardware identify help

Contractor from Hazlet , NJ
Jul 23, 2024 1:36 pm

Hi,

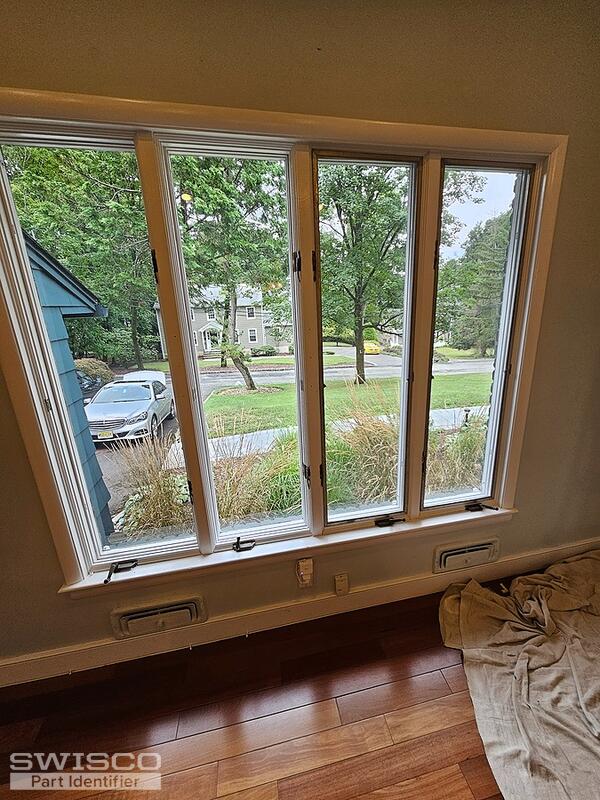

I need help with replacing the hardware on these older windows I believe from the 80's.

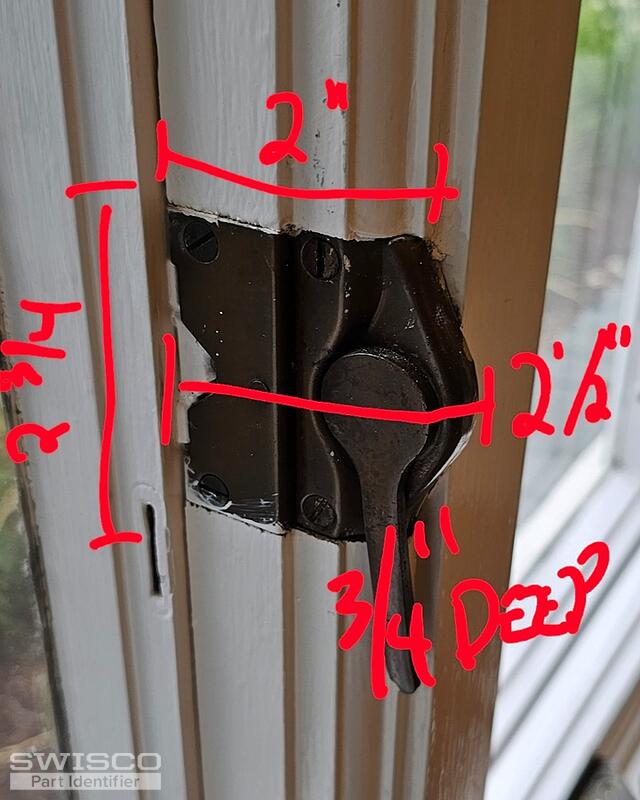

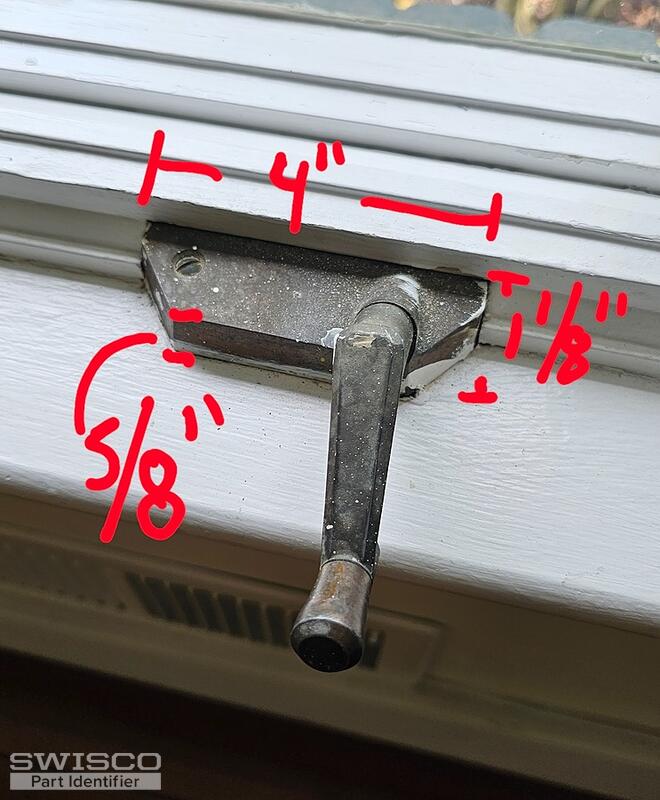

There are 8 total but I am sending pictures of these 4. I drew the dimensions on the pictures.

I can customize as much as you recomend so don't worry if yhere needs to be modifications to the wood.

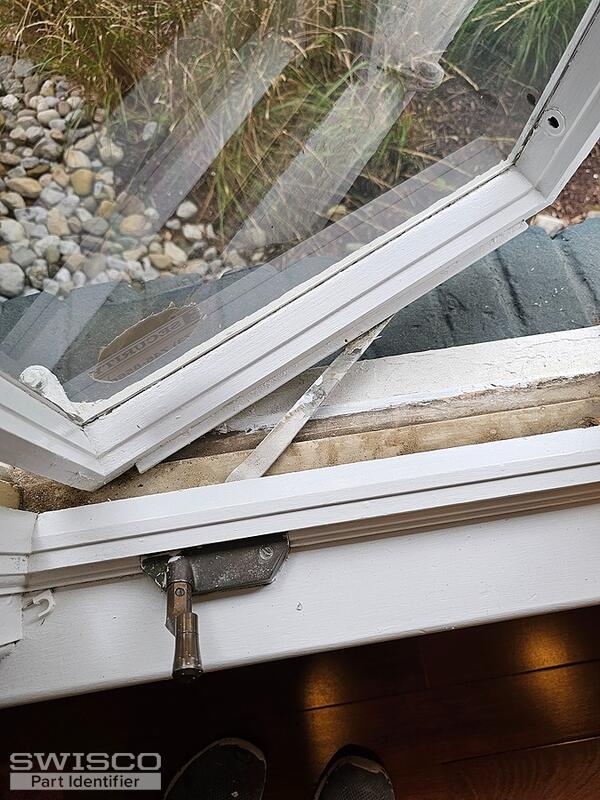

20240723_131151 old style andersen operator old style andersen operator base old style casement lock
4 user uploaded images
2 Replies
Dave Sr.
Dave Sr. from SWISCO
Jul 26, 2024 8:52 am
SWISCO
EXPERT

Hello!

Thanks for reaching out to us. It looks like you have older-style Andersen hardware. We carry the newer style Andersen, but not sure they will work on your window. Take a look at the 39-365 operator with the SS roller which takes the 39-520 track. We also have the 39-027E operator which uses the 39-533 track.

The 38-056 and 38-057 are Andersen brand locks that use the 38-135 keeper. We have the 38-097 and 38-098 casement locks as well which come to mind. They use the 38-079 keeper.

We can't promise any of these parts will work but take a look at the specifications and see what you think.

Contractor from Hazlet , NJ
Jul 26, 2024 11:21 am
Thank you for the help! I will see what works.
