Hi,
I need to replace the pivot shoes on our Acorn single-hung tilt-in aluminum windows. I know I'll have to remove the lower sash to do this. The pivot shoes look like either the 15-046 or the 15-121. With this style of shoe, do the pivot bars have to be removed in order to remove the lower sash?
Thanks,
Norm
Acorn tilt-in pivot shoe replacement

Home Owner from Colorado
May 27, 2012 10:03 am
5 Replies

Paul from SWISCO
May 29, 2012 12:48 pm


Thanks for posting. You shouldn't have to remove the pivot bars before-hand in order to remove the lower sash. They should be screwed into the lower sash, and come out when it comes out.
Take a look at our tutorial video on how to replace a tilt window spiral balance, which shows how to remove the lower sash of this type of window.
Take a look at our tutorial video on how to replace a tilt window spiral balance, which shows how to remove the lower sash of this type of window.

Home Owner from Colorado
May 29, 2012 7:18 pm
Hi Paul, thanks for the reply.
I imagine I'm doing something wrong. I tried twisting the sash as shown in the video, and cracked the cam on one of the pivot shoes. The pivot bars are like the 26-040, and are held in a slot at the bottom of the sash with a single screw. There isn't much wiggle room where the pivot bar fits into the cam.

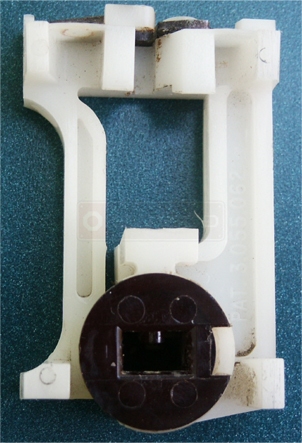

After looking closer at the pivot shoes, they actually don't look like the 15-046 or 15-121. I've attached a picture. In size, the width is about 1-9/32" (just a bit over 1-1/4"), height is 2-1/8", and thickness is 9/16". The opening in the cam for the pivot bar is 5/16" x 3/16". The only marking is "PAT. 3,055,062". If you could suggest a replacement, I'd appreciate it.
Thanks,
Norm
I imagine I'm doing something wrong. I tried twisting the sash as shown in the video, and cracked the cam on one of the pivot shoes. The pivot bars are like the 26-040, and are held in a slot at the bottom of the sash with a single screw. There isn't much wiggle room where the pivot bar fits into the cam.
After looking closer at the pivot shoes, they actually don't look like the 15-046 or 15-121. I've attached a picture. In size, the width is about 1-9/32" (just a bit over 1-1/4"), height is 2-1/8", and thickness is 9/16". The opening in the cam for the pivot bar is 5/16" x 3/16". The only marking is "PAT. 3,055,062". If you could suggest a replacement, I'd appreciate it.
Thanks,
Norm


Paul from SWISCO
May 31, 2012 11:19 am


Thanks for the additional picture, Norm. Please see our 15-015 pivot shoe. Do you think this might be a better replacement?
