Al side casement window

A quick learner from Woodbury, MN says:
August 15, 2022

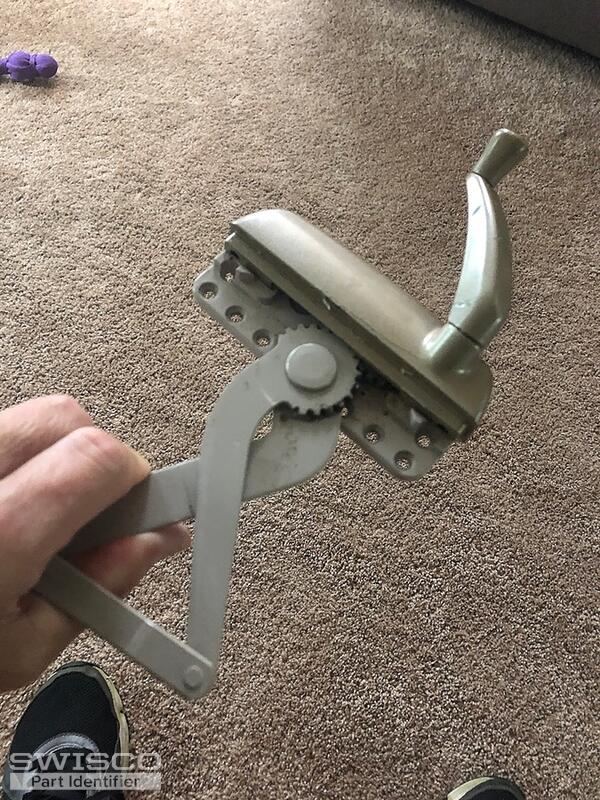

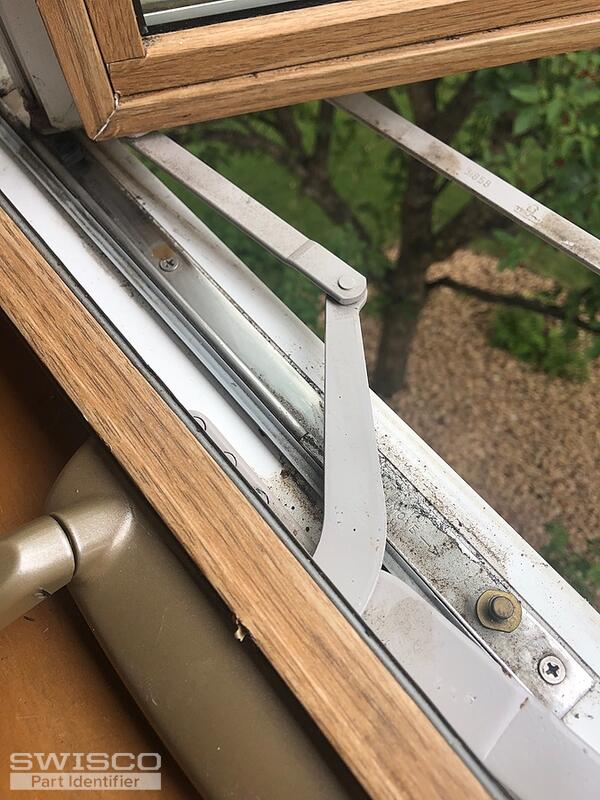

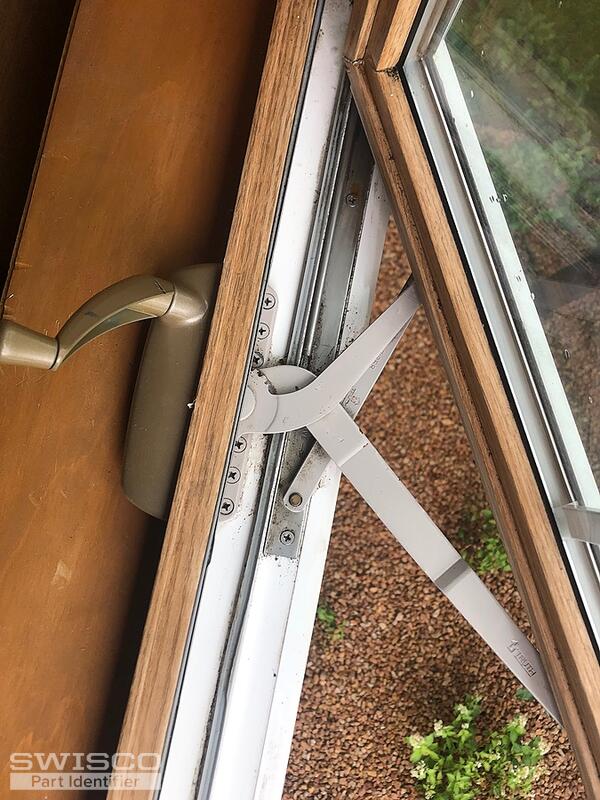

Gears are bad on crack out assembly
Thumbnail of the uploaded file named D5B8A986-8FFD-417A-B5A2-9AE57E669BF9.jpeg
Thumbnail of the uploaded file named 1DB85627-C01E-410B-BAE4-2E73D49D28C9.jpeg
Thumbnail of the uploaded file named 525BDDA5-56D8-4048-ACEA-C5B6B812FEA9.jpeg
Profile picture of Casey
Casey from SWISCO responded:
August 17, 2022

Hello,

Take a look at the video below that will help you choose between the 39-253LB & 39-253RB , or the 39-438B & 39-439B Encore operators.

If you need new hinges as well, you can start by comparing the 36-048 or 36-049 to your assembly, depending on the size of your original assembly. Thank you!
A quick learner from Woodbury Minnesota says:
August 24, 2022

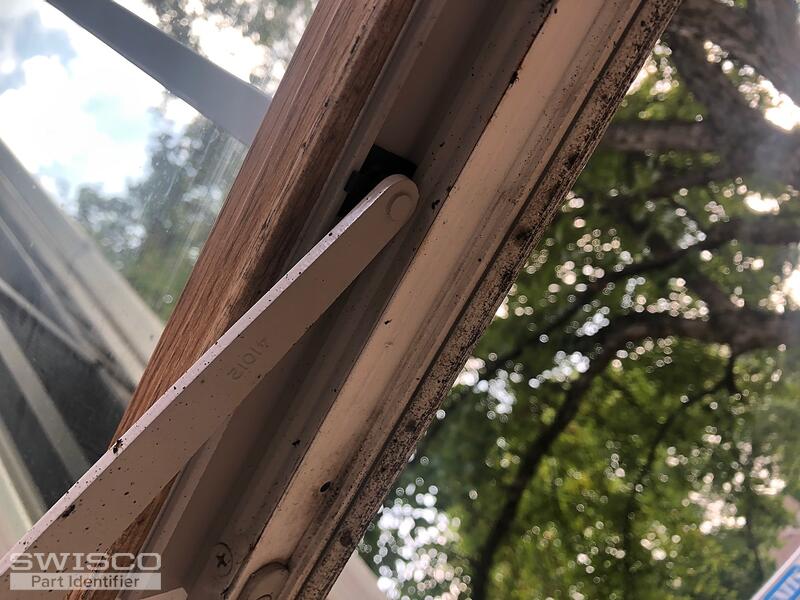

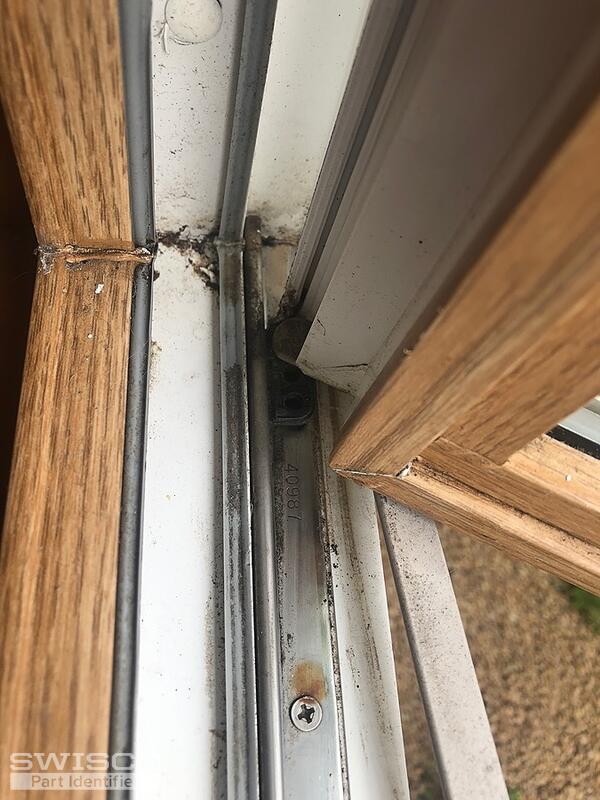

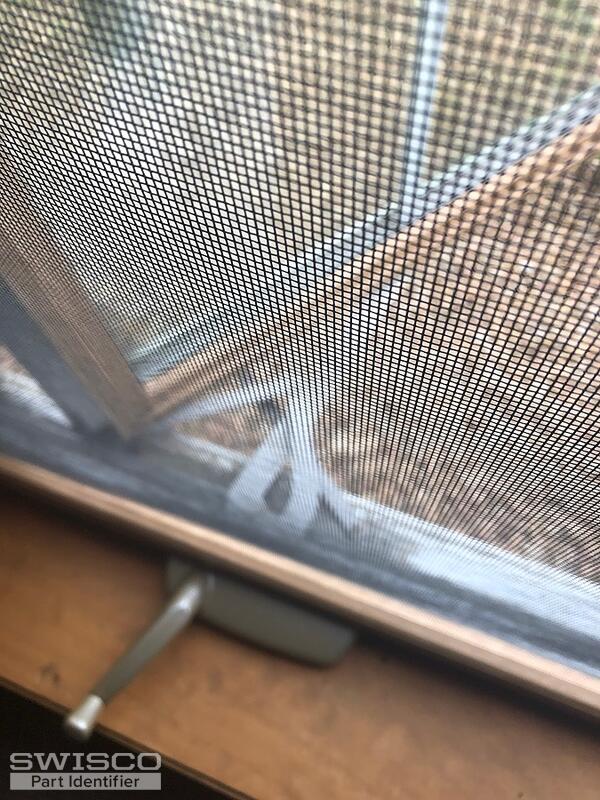

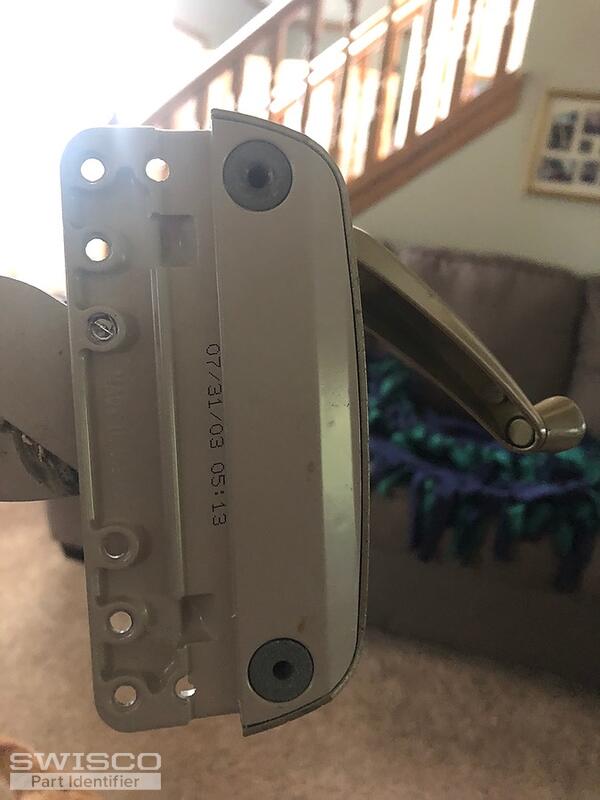

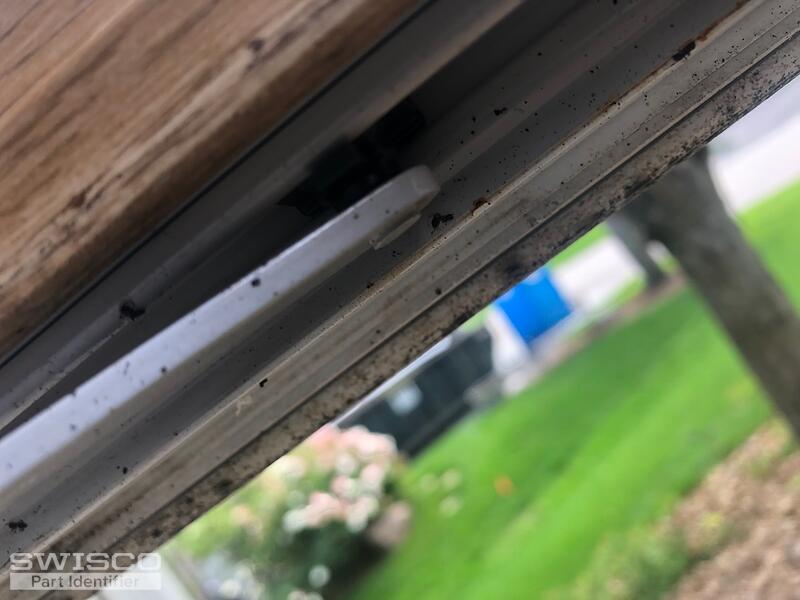

Please see photos. Looks like it uses a one hole slide. See photo of the bottom of part the front cover that hides the gears is riveted from the bottom can I get a whole assembly with the cover installed? Also it hinges from the right
Thumbnail of the uploaded file named 0D2DD954-A301-41D8-B6F6-42583B4B4BD6.jpeg
Thumbnail of the uploaded file named 817A7D93-1138-4605-95E1-2C7D4F0959C7.jpeg
Thumbnail of the uploaded file named 498ADAAE-2DBA-4263-95F5-85F34533D66F.jpeg
Thumbnail of the uploaded file named 86D9B6FD-6291-482A-A2EA-95D7363B8BBA.jpeg
Thumbnail of the uploaded file named BC4B4805-EF54-4AE4-915F-DC2FD8AF5B45.jpeg
Profile picture of Casey
Casey from SWISCO responded:
August 25, 2022

It looks like you may have the 39-529 track slider used with the 39-253LB and 39-253RB but I'd recommend detaching it from the track to confirm that it is an exact match.

If so, you can use the 39-375 and 39-376 handle and cover kits for your replacement operators.
