Alliance Window Pivot Shoe & Coil Balance

Question

I am writing in hopes of identifying the parts for an Alliance Window Systems - Double Hung Window. I have attached pictures of the assembly with the post. I have looked through the site and believe I've located the right parts. Can you help to confirm is these are right?

Coil Balance (7lb per marking on existing coil) - S152-7

Balance Shoe - 15-177

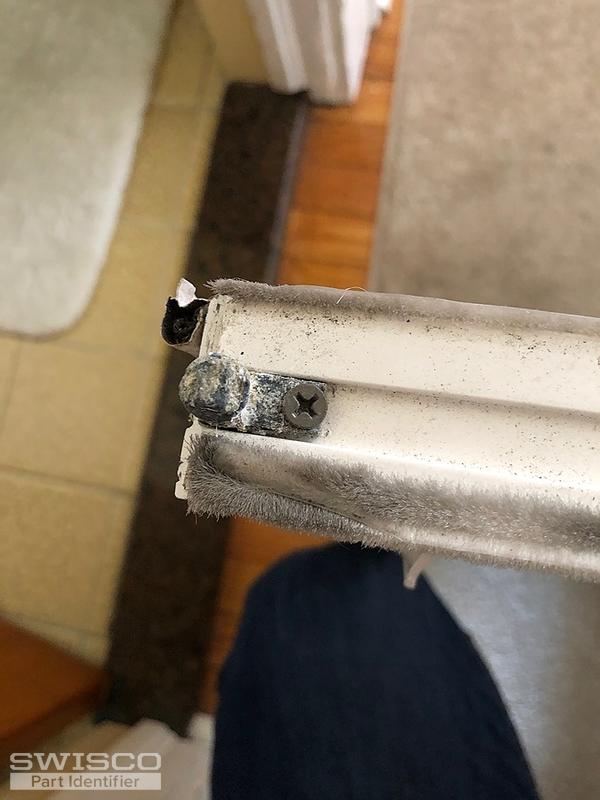

Additionally, I've attached a picture of the foot/peg of the window that goes into the shoe. As you can see they are quite corroded. Do you have a replacement for this as well?

Lastly, Do you sell sash caps to cover the notches I had to cut to remove the balance and shoe? I have searched for these, but can't seem to locate them.

Thank you as always for your help!

Bob · Accepted Answer

This Pivot Shoe looks like more like our 15-175 to me; however, this shoe also uses our Series 152 Coil Balances, so the S152-7 would be correct. I am less certain about the pivot bar, but our 26-446 might be what you need; you'll need to remove to compare. I am afraid we don't sell new covers for where a cut out was made, but note that if you made the cut outs in the upper reaches of the window track, it shouldn't affect window function. Let me know if you have further questions.
