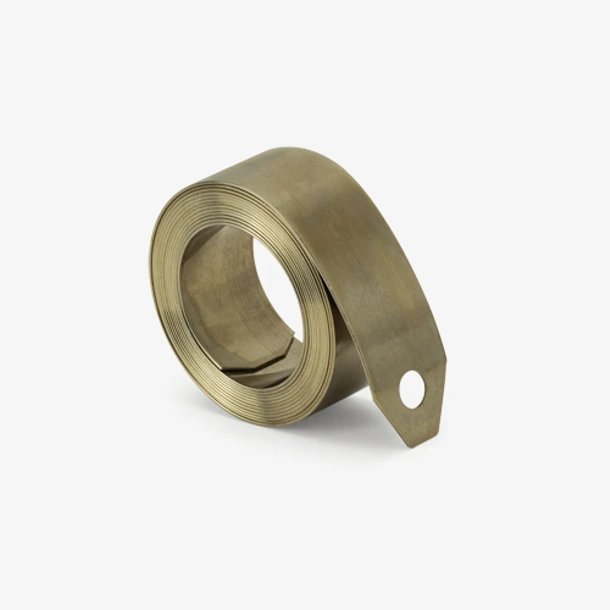

7 lb Series 152 Coil Balance

Product Code: S152-7

Product Description
This is a Series 152 stainless steel spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.
  • Individually, this coil balance can hold 7 pounds. This is added together with the other coils to support the whole weight of the sash.
  • The weight you need should be indicated as a stamp or imprint on your old spring.
  • Measures 1/2" thick.
  • Designed to work with the 15-175, 15-177, or 15-158 pivot shoe (sold separately). These shoes are not interchangeable.
  • This coil balance spring is sold individually, not in sets.
  • Can work for either the left or right side of the window interchangeably.
  • Coil balances are also known as constant force window balances.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
