Andersen window

A contractor from Cherry Hill Nj says:
January 12, 2021

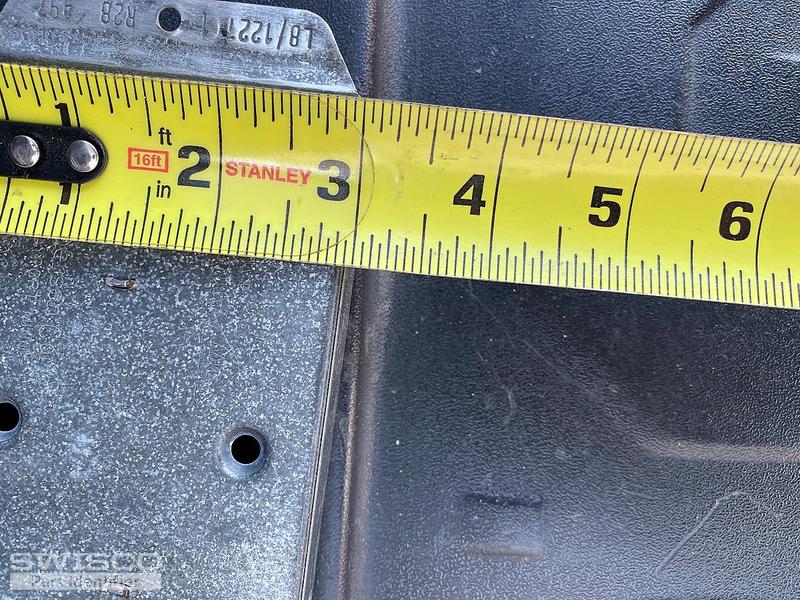

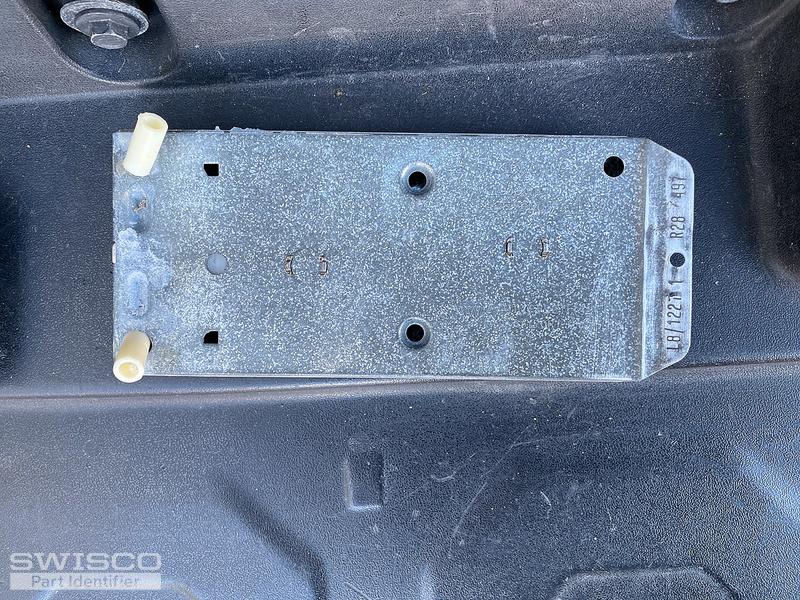

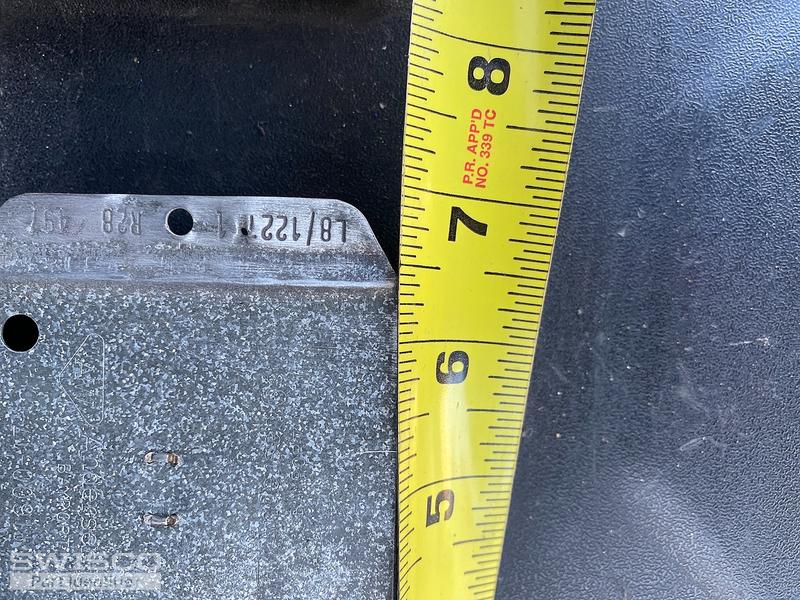

Left and right sash balance also widow lock
Thumbnail of the uploaded file named 9891CAF8-4BD7-421B-B405-0C1904947F65.jpeg
Thumbnail of the uploaded file named EA9E4A84-756C-40CC-B202-055D36E76D05.jpeg
Thumbnail of the uploaded file named A64B5C1C-04E0-42DD-8394-1B5D46D46531.jpeg
Thumbnail of the uploaded file named 7C51CEE1-4698-47FA-8B98-679399F91980.jpeg
Thumbnail of the uploaded file named 14479F60-595A-4D85-BA65-7050914E44E7.jpeg
Profile picture of Tom
Tom from SWISCO responded:
January 13, 2021

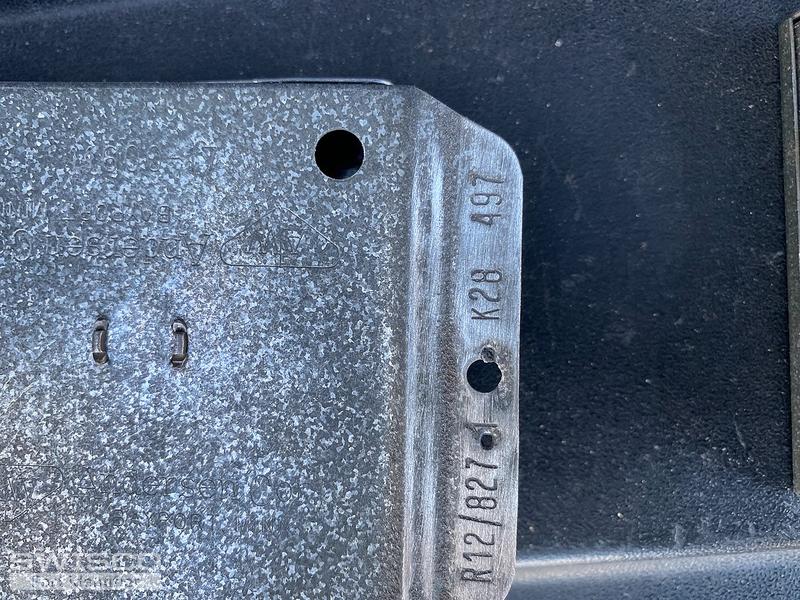

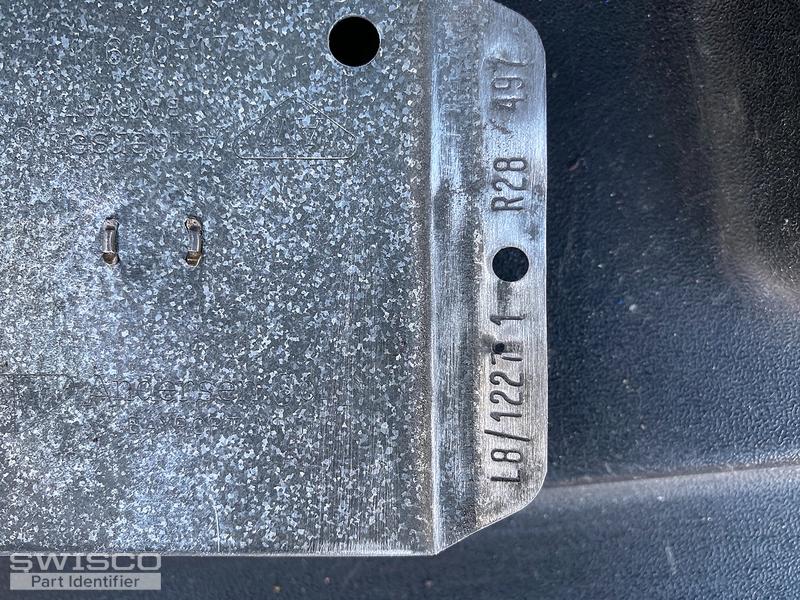

Hello! We can definitely help with these. The balance marked with "827" can be replaced by our 24-837 while the balance marked with "1227" can be replaced by our 24-1231 .

Please note that these two balances are different sizes and are not meant to be used on the same window.

A contractor from Cherry Hill Nj says:
January 13, 2021

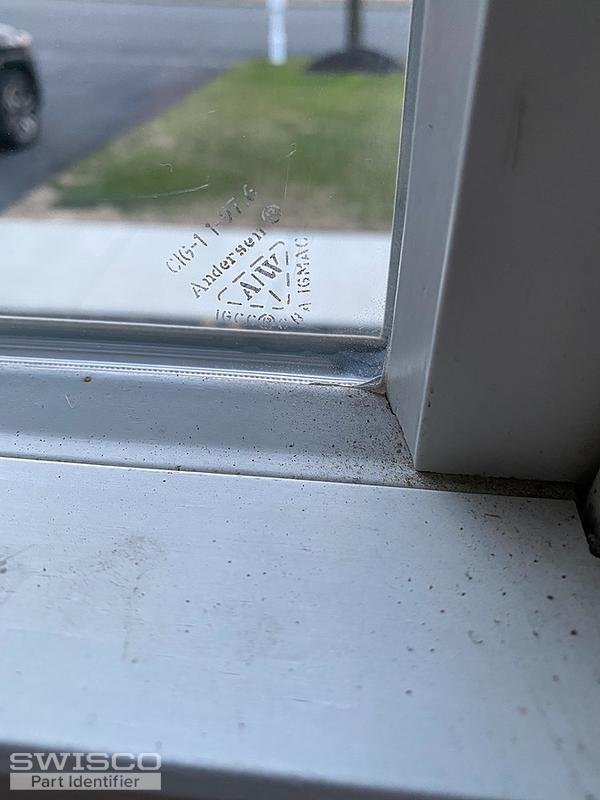

So they both came out of the same window which should I use and also l need a lock I also added a photo of the numbers on the window if that is any help the window measurements are 28 7/16 x 37 15/16 Thanks
Thumbnail of the uploaded file named 99962AB6-F93C-4C46-A086-D2723E8F02AE.jpeg
Thumbnail of the uploaded file named CD7C831C-E064-41F7-B441-D4B6390D5725.jpeg
Thumbnail of the uploaded file named BFA8C104-FD68-4BE6-8B98-59925D9D1D14.jpeg
Profile picture of Paul
Paul from SWISCO responded:
January 14, 2021

I actually think Tom may have misidentified your balances, at least partly. The two balances in your window I think are a closer match for our 24-R12-827 and 24-L8-1227 . These are designed for Andersen cottage windows where the top and bottom sash are different heights.

However, from the sash dimensions you gave (28-7/8" x 34-15/16"), your window has the top and bottom sash being the same size. Can you confirm that that's the case? If so, I would recommend the 24-1231 .

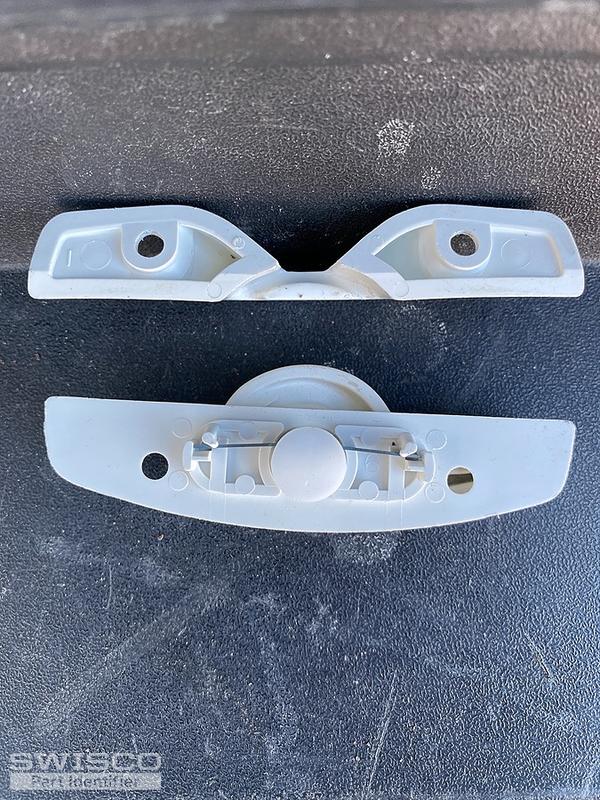

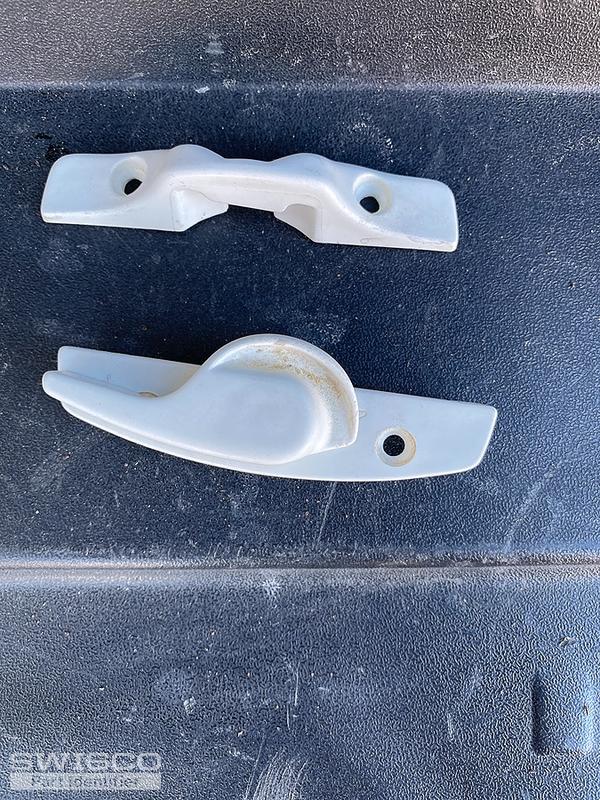

The window latch set you show would be 90-095 .

A contractor from Cherry Hill Nj says:
January 15, 2021
The top sash measures smaller 28 7/16 x23 15/16
A contractor from Cherry Hill Nj says:
January 15, 2021
Also I was wondering if local pick up of parts is available
Profile picture of Paul
Paul from SWISCO responded:
January 19, 2021

Thanks for confirming. It definitely sounds like you have a cottage window, so go with our 24-L8-1227 and 24-R12-827 Andersen balances. These should work for you.

We unfortunately do not offer local pickup. Our business is exclusively online.
