Assistance With Custom Order Purchase

A quick learner from USA says:
I have included additional photos. I measured the metal channel end to end, excluding the end pieces and it is 32". It is marked 32C BS1. From what I see from the picture of the top piece of the S795-32, it is a metal piece that needs to be screwed in. As, hopefully you can see, mine is a clip that is set in a hole in the window frame. I appreciate any help you can provide as to what I should buy.

Thanks, Dave
Thumbnail of the uploaded file named 20210323_155404.jpg
Thumbnail of the uploaded file named discussion 4.jpg
Thumbnail of the uploaded file named discussion 3.jpg

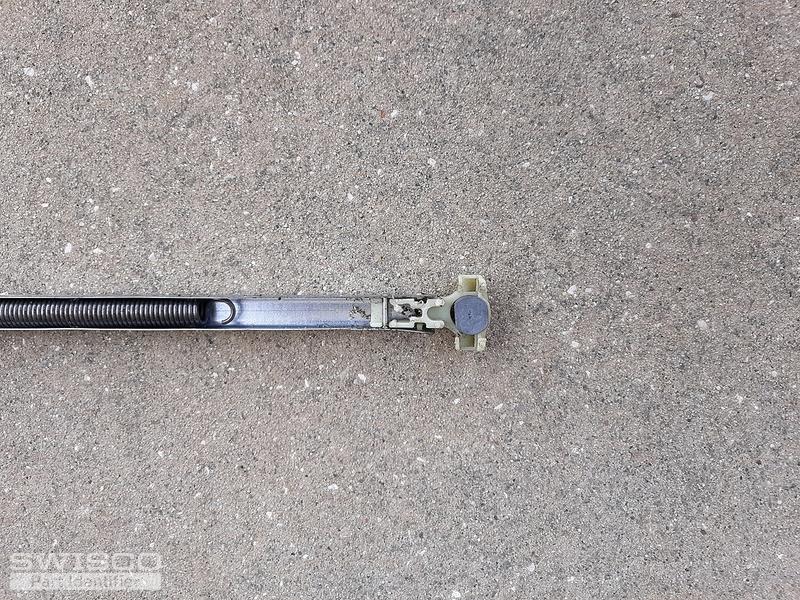

Thumbnail of the uploaded file named 20210323_155152.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

This looks like our S795-32 channel balance with a 32C strength option. As you pointed out, ours uses a screw tab at the end of the pulley instead of the hook shown on your balance.

You may be able to use our stock balance if the hook on your balance installs in a square cutout that will fit our 26-200 screw plug. If not, we can custom make balances with a hook instead of a screw tab but we'd need to know how many you'd like to order, as well as confirm that the t-lock shoe on your balance measures 1-1/4" wide. Please let us know how you'd like to proceed. Thank you!


A quick learner from USA says:
Casey

Thank You for the response. My t-lock shoe is 1.25". My clip does install into a square cut out, approximate size of .25" square. Since I know the clips work, I'd prefer to stick with that. I would like to purchase four (4) balances with clips, if this isn't cost prohibitive. I see that balance price is $13.55 and the clips are $0.45. Swapping in these clips would cost ??? Please let me know the cost and I will follow up with an order. Any special order # I should ???

Thanks again, Dave
Profile picture of Casey
Casey from SWISCO responded:

No problem Dave. We just sent over an order link and price quote for custom S795 balances with the 15-198 clip attachment. Thanks for posting!
