Atrium Window Parts

Question

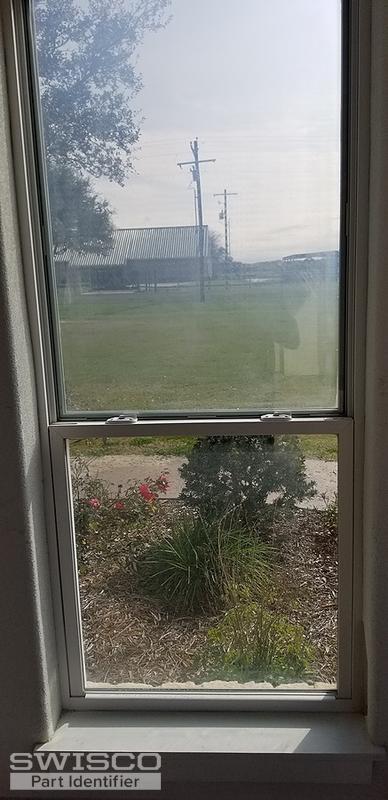

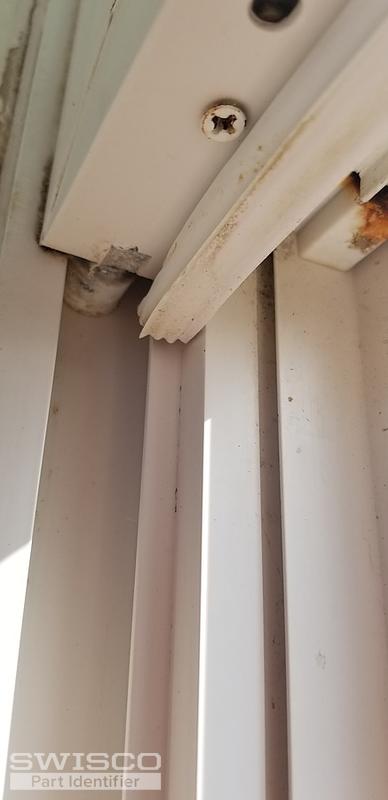

My window is a series 160 single hung swing out. What I need is the balance channels, window locks and the window tilt latches. Here are some photos of the parts and window frame.

Casey · Accepted Answer

Hello,

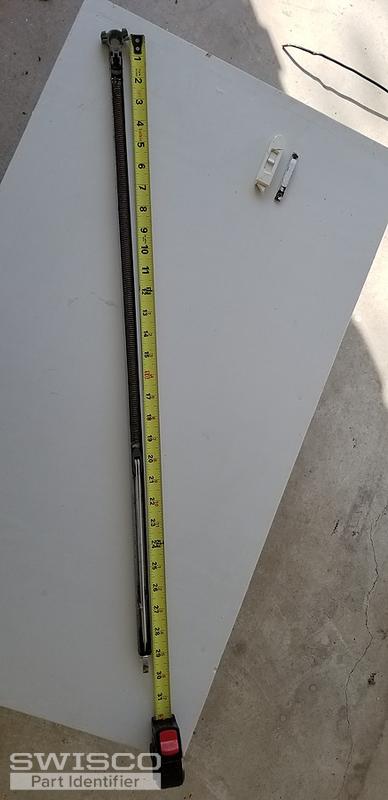

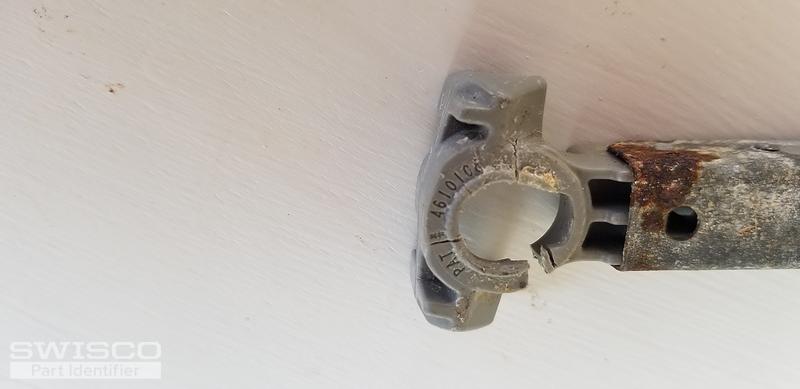

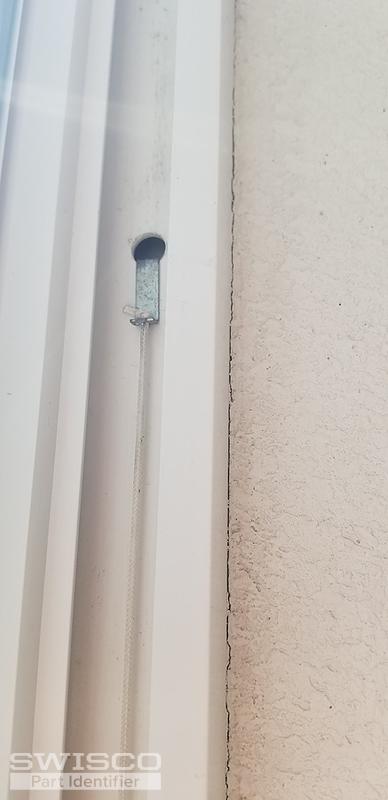

Your balances look like our S795 but yours will have to be custom made because of the hook at the end of your pulley cord compare to the screw tab on our S795. We'll just need to know how many balances you need, as well as the stamp on your balance channel, to get started.

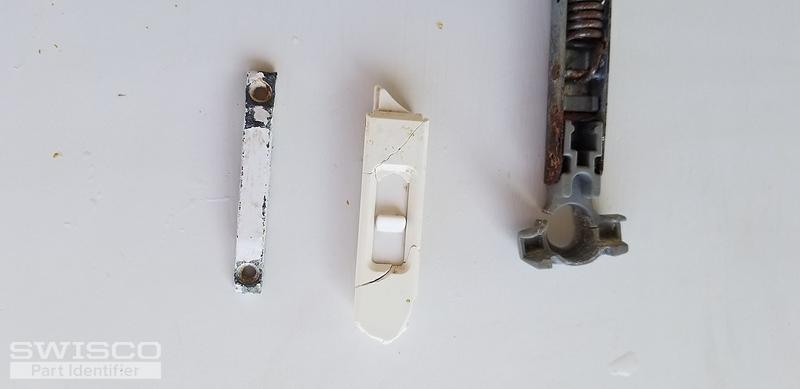

Also, it looks like you may be looking for tilt latches like our 2-5/8" long 26-419 and 26-420 or 26-243 and 26-244 but you'll need to compare all of the dimensions on both product pages to see which latch pair will work for you.

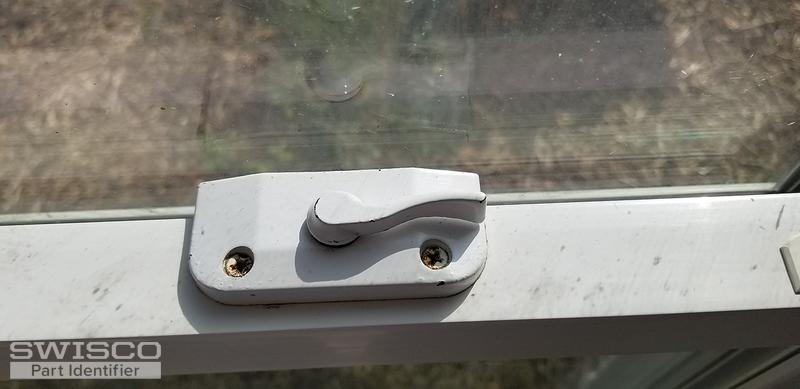

Lastly, we'll need to know the exact distance between the mounting holes in your sash lock, measured from center to center. Thank you!
