Channel Balance Help Me

A quick learner from Lewiston, Minnesota says:
October 16, 2020
Need 6 of these. It appears the parts you have attach with a screw rather tan a hook like shown in the picture.
Thumbnail of the uploaded file named 20200910_124952.jpg
Thumbnail of the uploaded file named 20200910_125016.jpg
Thumbnail of the uploaded file named 20200910_124924.jpg
Profile picture of Bob
Bob from SWISCO responded:
October 20, 2020

This looks like a Series 795 with a 15-198 hook installed on top. We can provide these for you via a custom order. I need just a little more information to get this moving:

  • Please confirm the length of the metal channel.
  • Please show us the stamp code on the metal channel.
  • You will need to determine what T-Lock Shoe your balances use: the 15-195, 15-195B, or 15-194.
  • How many balances do you need?

From there, I should be able to write up a quote for you.
A quick learner from Lewiston, Minnesota says:
October 20, 2020

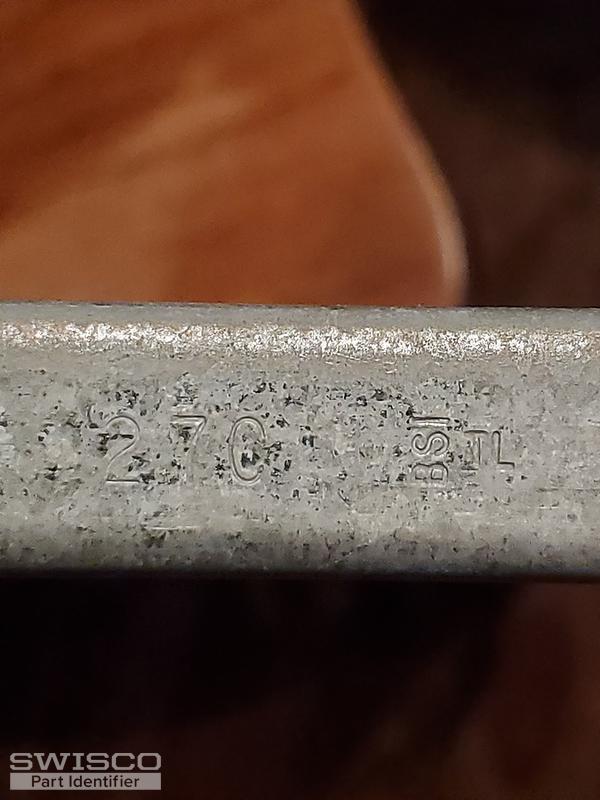

The metal measures 27 inches.The stamp says 27C. How do I determine which lock shoe it is? I'll order 6 of the balances and 12 of the T locks
Thumbnail of the uploaded file named 16032254728742203154763961262665.jpg
Thumbnail of the uploaded file named 16032259208361003471730237295969.jpg
Thumbnail of the uploaded file named 16032259653672805508650035488496.jpg
Profile picture of Bob
Bob from SWISCO responded:
October 21, 2020

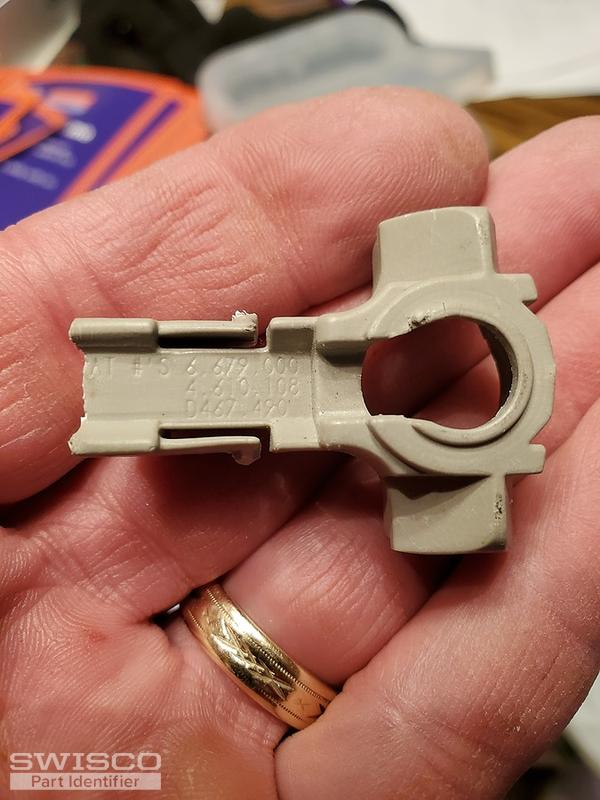

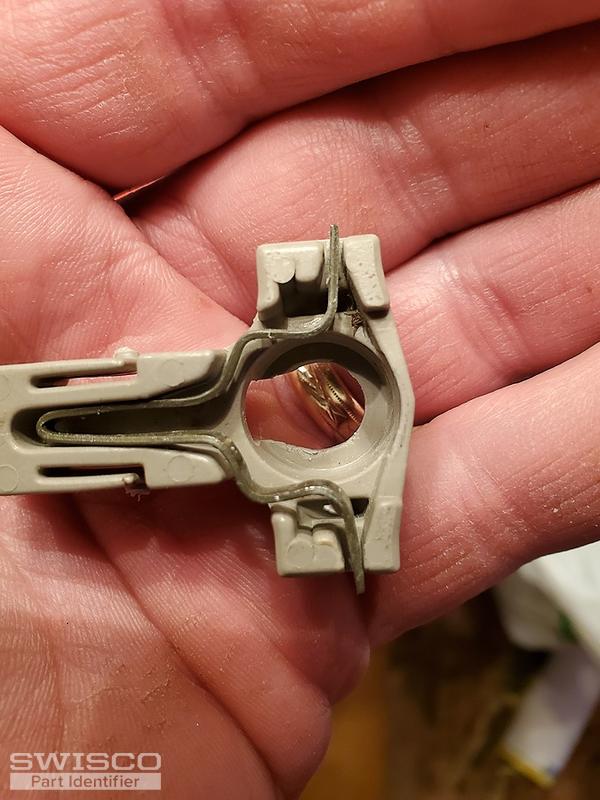

Thanks for the info. I believe you have the 15-195 T-Lock Shoe, which is 1-1/4" wide and has a 'closed cam' (the cam has a back wall, so you cannot look 'through' it. This shoe comes by default with our Series 795 balances.

I just sent you an email with a custom link to order (6) 27" Series 795 balances, stamped 27C, and with the 15-198 hook attached. You can order any additional 15-195 shoes through our online store. Let me know if you have further questions.
