Balance

Question

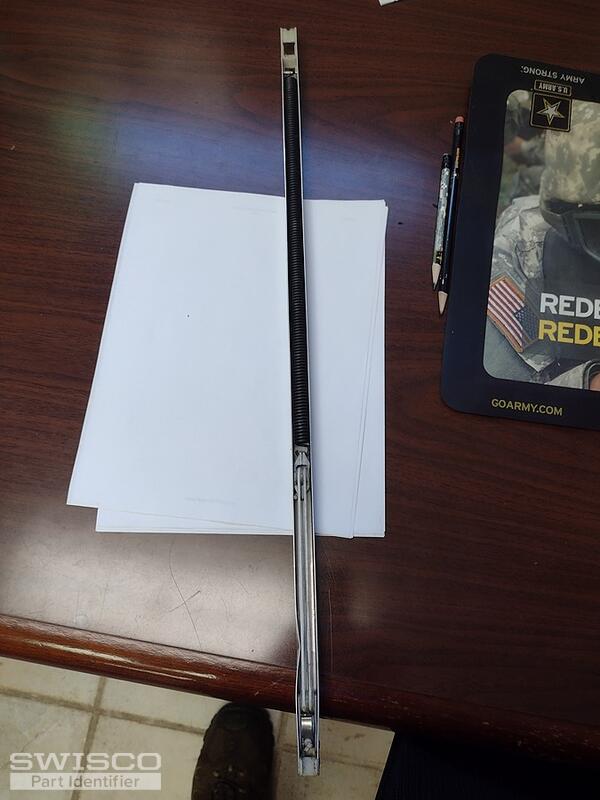

Jordan Aluminum Windows, single hung, installed 25 - 30 years ago in a small metal office building. Windows are approximately 48 in X 48 in. The balances appear to be 24 in long x 1/2inch wide; can't locate my notes so it's a guesstimate.
The windows in question either won't open or won't open smoothly nor without substantial effort.

Tom · Accepted Answer

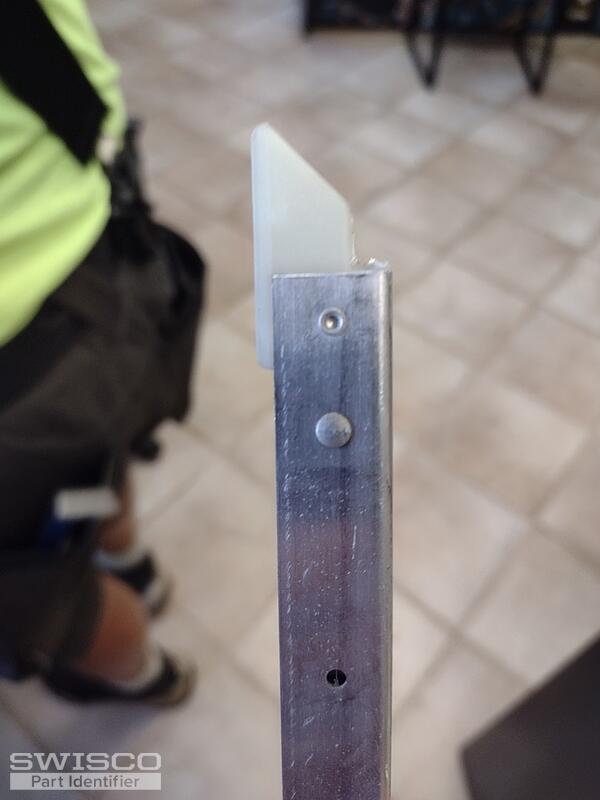

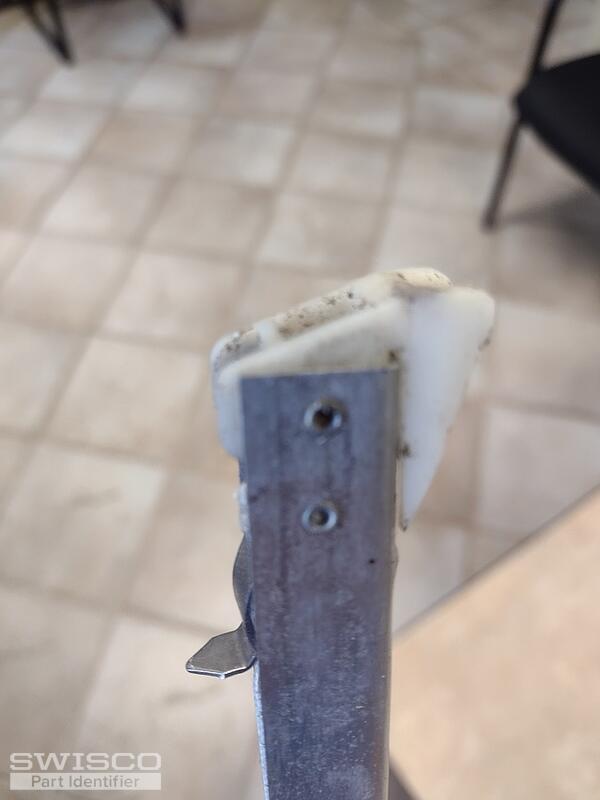

Thanks for your photos. Based on what I see here, you have either our S351-23 or S390-23, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

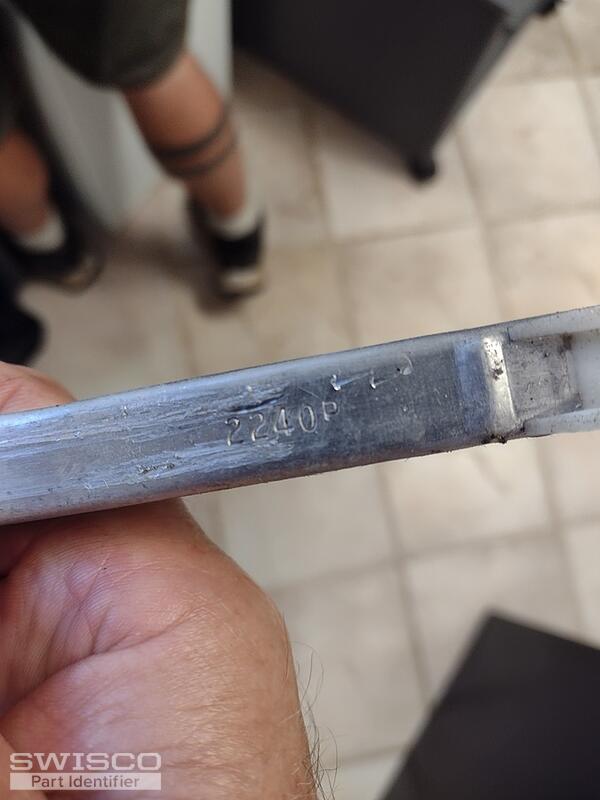

Note that your stamp indicates a metal channel length of 23", not 24". That's something you should triple check before you buy anything. It's best not to guess when it comes to balances.

Comparison of the S351 and S390 balance shoes.
