Balance Metal belt/spring

Start a new Discussion

Home Owner from Springfield, Ma

Sep 8, 2025 9:47 am

Need replacement pair part
Balance Metal belt/spring
Only marking is ABCDEF and a numeral 4

2 user uploaded images

5 Replies

Home Owner from Springfield, Ma

Sep 8, 2025 10:26 am

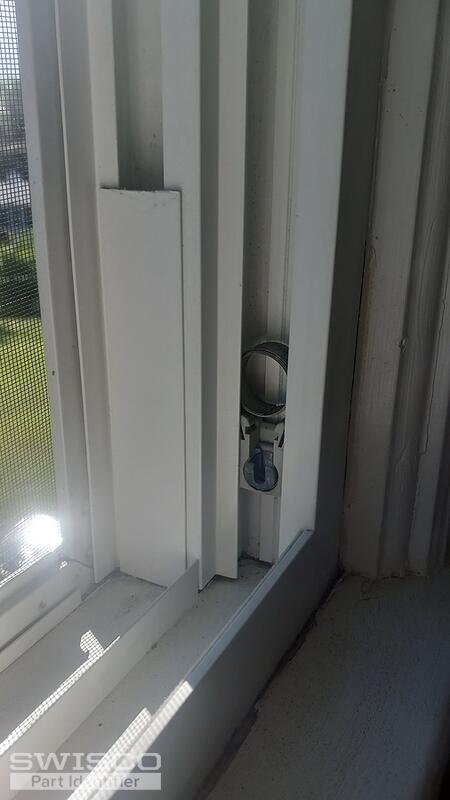

Additional post below of balance metal belt broken in window jam

2 user uploaded images

Bob from SWISCO

Sep 15, 2025 4:25 am

Thanks for posting. This is a 15-177 Pivot Shoe, which works with Series 152 Coil Balance springs. Let me know if you have any questions about this hardware.

Home Owner from Springfield, Ma

Oct 1, 2025 9:32 pm

Window is 14 lbs weight. Kensington Window double hung. Series 35104510 DH. MST 3'8"X 50"
I need to purchase 15-177 Pivot Shoes? I need to purchase Series 152 Coil Balance Springs?
I imagine I need two 7 lb. rating coil balance springs for a 14 lb. window?
Is that correct? Thank you very much.

Bob from SWISCO

Oct 3, 2025 2:44 pm

You got it. For a 14 pound window, the S152-7 7 pound springs, one for each side, will work. Let us know if you have further questions.
