Balance Sash replacing Hardware

A contractor from Canada,Quebec says:
January 31, 2012
Good morning,

I am looking to the complet system for those part see-attached (Coil,plastic part,ect...
Let me know if you are able to help me

thank you

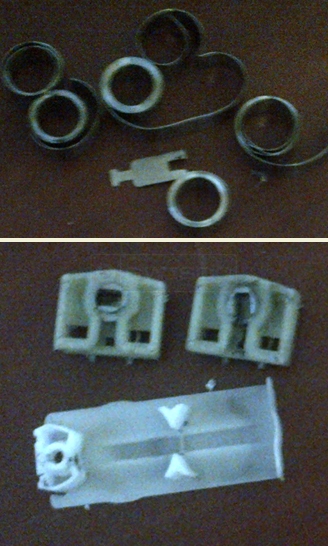

A customer submitted photo of their spiral balances and shoes.
Profile picture of Paul
Paul from SWISCO responded:
January 31, 2012
The spring carrier appears to be our 15-150D, while the pivot lock shoe looks like our 15-111. Please take a look at those two parts and see what you think.

As for the springs, can you please tell me what number is printed on them? I think it might be our Series 160, but I want to be certain.
A contractor from Canada,Quebec says:
January 31, 2012
Good afternoon Paul, thank you for the fast reply! This is the first time we've foudnd this system. Do we need other part to make sure the system work fine? For example, do we need 15-149 to make it work?

On the spring (Cole) it has the numbers: 5.5 35''P
Profile picture of Paul
Paul from SWISCO responded:
January 31, 2012
Thank you. Please take a look at our S160-5 Coil Balance.

If you had the 15-149 with this original hardware, then you do need to replace them. If not, though, then they won't be necessary.
A quick learner says:
January 31, 2012
thank you for your time! Let me send the order

Thank you
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
5.5 lbs Series 160 Coil Balance
5.5 lbs Series 160 Coil Balance
S160-05
$4.63
