Balance coil
Quick Learner from Hugo, mn
Apr 24, 2025 6:34 pm
I have simonton windows and need two valence coils. There are three coils in each.
2 user uploaded images
4 Replies
Emily from SWISCO
Apr 29, 2025 10:27 am
Hi there!
Thanks for reaching out to us. We're happy to help with this. Can you show us a photo of the pivot shoe that goes with these coil springs? We must ID that first to determine the compatible spring balances.
Quick Learner from Hugo, mn
Apr 29, 2025 8:36 pm

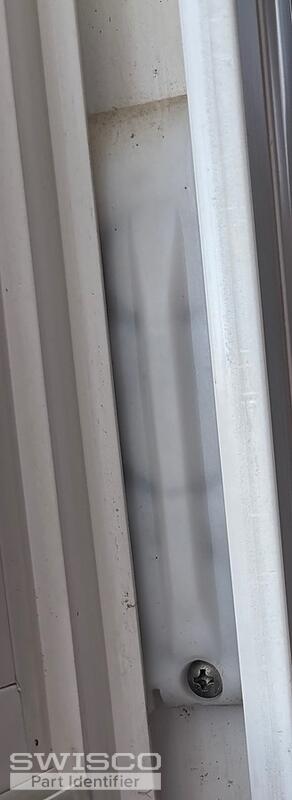

I would also need the cover for the balance coils. Thank you!
2 user uploaded images
Emily from SWISCO
Apr 30, 2025 8:36 am
Thank you kindly for the additional photos! Your pivot shoe matches the 15-199, which uses the 3/8" wide Series 165 coil springs. It looks like the weight codes are faded on the springs so you'll have to divide the sash weight by the total number of springs in the window to determine the appropriate spring weights.
If this is a triple spring setup, see the 15-205 coil support.
Please let us know if you have any questions!
