Balance identification

A contractor from Virginia says:
December 22, 2020
Needs assistance please in identifying this balance
Thumbnail of the uploaded file named CDC65F26-DAD3-4D85-8CC6-5E73C9D56A67.jpeg
Thumbnail of the uploaded file named 2C295700-756A-4A20-A296-85427A36C133.jpeg
Thumbnail of the uploaded file named B0962D43-DEAA-4705-ABE0-08FB27F7BF4E.jpeg

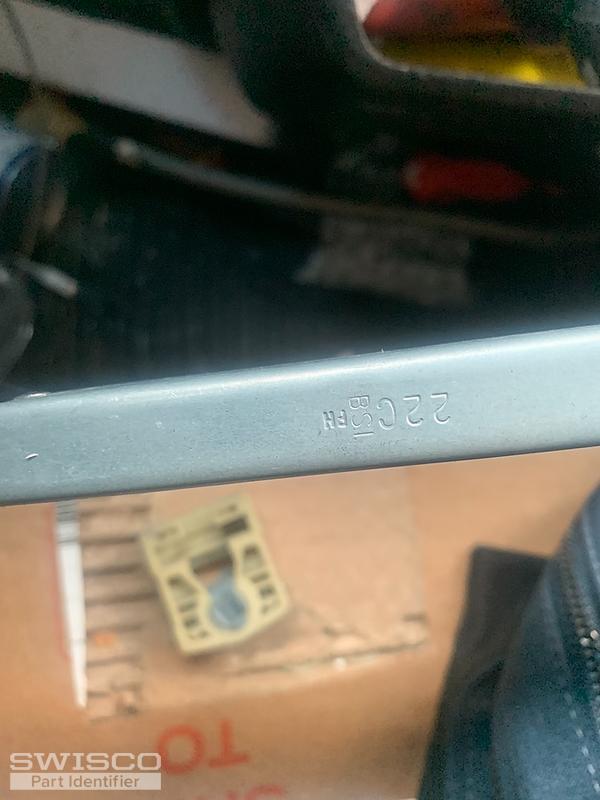

Thumbnail of the uploaded file named F89A7393-1C95-405F-B542-6DDBA4953FA9.jpeg

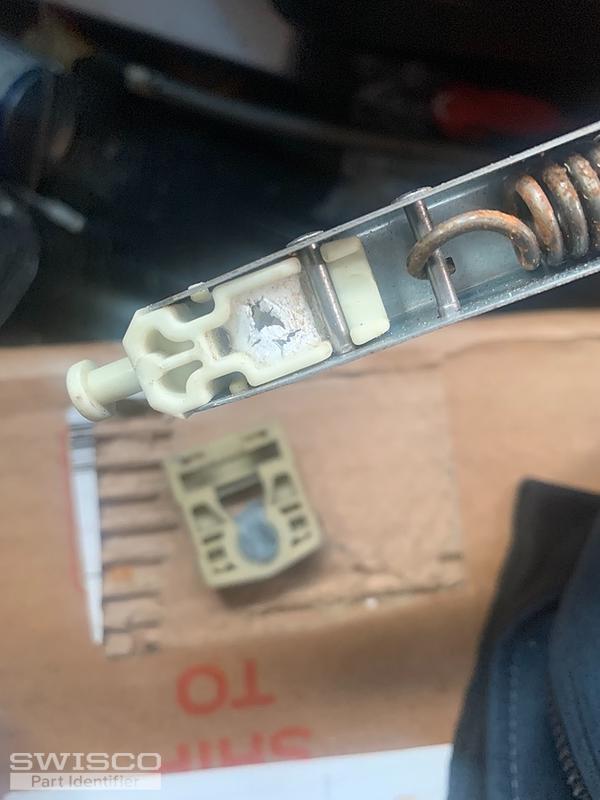

Thumbnail of the uploaded file named A306447D-D839-421A-8C7E-2C8D8F443760.jpeg
Profile picture of Paul
Paul from SWISCO responded:
December 28, 2020

Hello,

It looks like you'll need custom Series 795-22 balances with our 15-198 top balance clip attached to the cord and the 15-224 inverted link attached to the bottom of the balance channel. The spring weight will be 22C to support a sash weighing between 16-21 lbs.

We just sent over an order link and price quote for you to review. If you need the pivot shoe as well, see our 15-216. Thank you!
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
22" Series 795 Channel Balance
22" Series 795 Channel Balance
S795-22
$13.29
Inverted Link
Inverted Link
15-224
$0.95
T-Lock Pivot Shoe
T-Lock Pivot Shoe
15-216
$2.55
