Balance spring for hurricane windows

Quick Learner from Fort Myers Florida
Feb 19, 2024 8:55 am
can you please advise if you have springs that will fit my windows?

Numbers on the spring is: 34 C and looks like a BS1 (not sure if 1 or i or L)

34" long and 1/2" square
balance spring base in sill together balance sill connection apart balnace spring in window balance spring roller end balance spring clip
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Feb 19, 2024 12:22 pm
SWISCO
EXPERT

Hey there,

Thanks for reaching out! Your channel balance appears to be a custom-made assembly. It is made with a channel like the ones used for our Series 795 Balances and the 15-224 Inverted Link.

I've forwarded a link with a quote for two of the S795-34 balance with a 34C stamp option and the inverted link attached. You'll be able to use this link to review the quote and place the order in your online cart. Please let me know if you would like a larger quantity of balances and I'll be happy to update the quote for you.

The shoe compatible with the balance attachment is the 15-216 T-Lock Pivot Shoe. To confirm that this is the right fit, carefully review and compare the dimensions below. I am confident this is the replacement you'll need.

Alternate image for 15-216
Alternate image for 15-216

Your pivot bar looks like it could be replaced with either the 26-407 Corner Pivot Par or the 26-473 Corner Pivot Bar. To determine which of these is the right replacement carefully review and compare their dimensions and design.

Alternate image for 26-407
Alternate image for 26-407

Profile view of 26-407
Profile view of 26-407

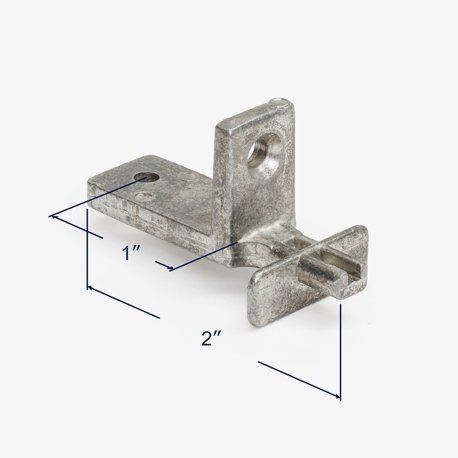

Dimensions for 26-473
Dimensions for 26-473

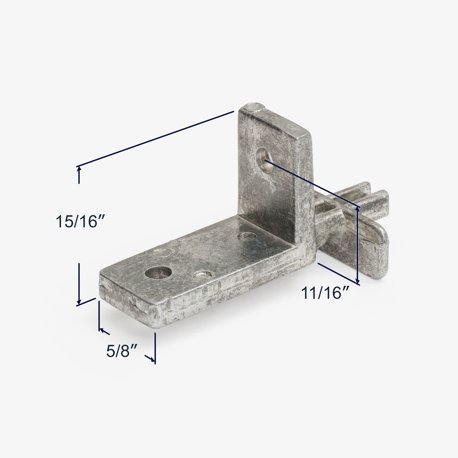

Additional Dimensions for 26-473
Additional Dimensions for 26-473

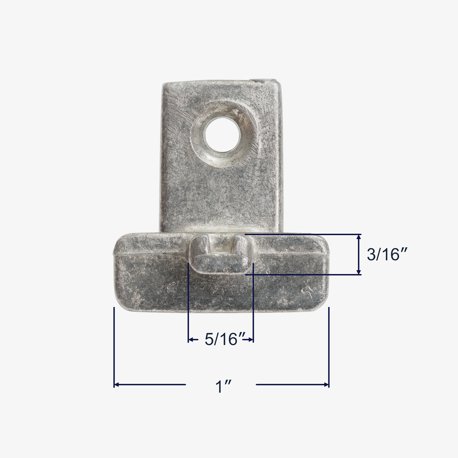

Front view of 26-473
Front view of 26-473
