28D and 28B Balances

Start a new Discussion

Quick Learner

Jun 16, 2025 11:29 am

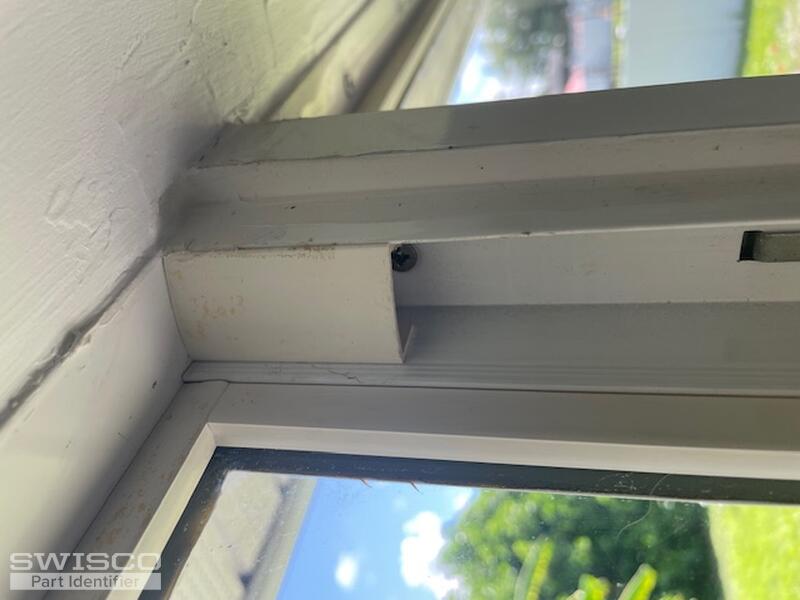

See attached pics: 28B and 28D

I have six windows and will need:
12 balance rods
12 clips
12 plastic stops

5 user uploaded images

4 Replies

Tom from SWISCO

Jun 23, 2025 8:55 am

Thanks for your photos. Based on what I see here, you have either our S380-29, S385-29, or S378-29 depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

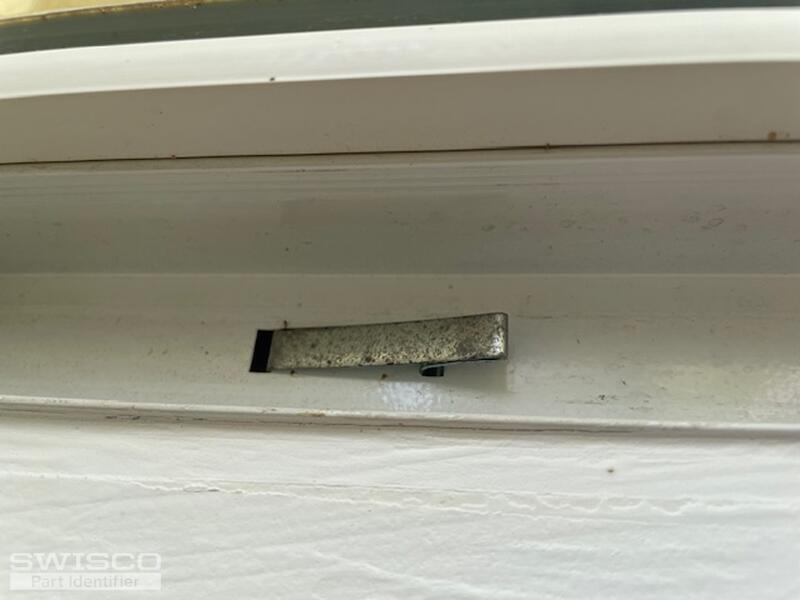

The take out clip is our 16-002. We don't sell this exact sash stop, but the design is similar to our 55-043. You will need to compare dimensions before you buy it to ensure that they're the same.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Cape Coral, FL

Jun 24, 2025 11:13 am

Thank you, Tom,

They both appear to be 7/8" or possibly 15/16" but not quite 1". So the S378 is likely the right balance rod...and I'm good with that.

let me know next steps for ordering, as I have six windows and will need twelve rods.

Leo

Tom from SWISCO

Jun 24, 2025 12:50 pm

Great! All orders can be placed directly on our site at your convenience. Your product would be the S378-29, and your two stamps (28B and 28D) would match our 2820 and 2840 options, respectively. That said, you may still want to weigh your sash on a scale just to be sure that these options are appropriate for your sash weight.
