Broken Coil Balance

Quick Learner from Lodi
Broken balance ?? Idk
4 user uploaded images
9 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

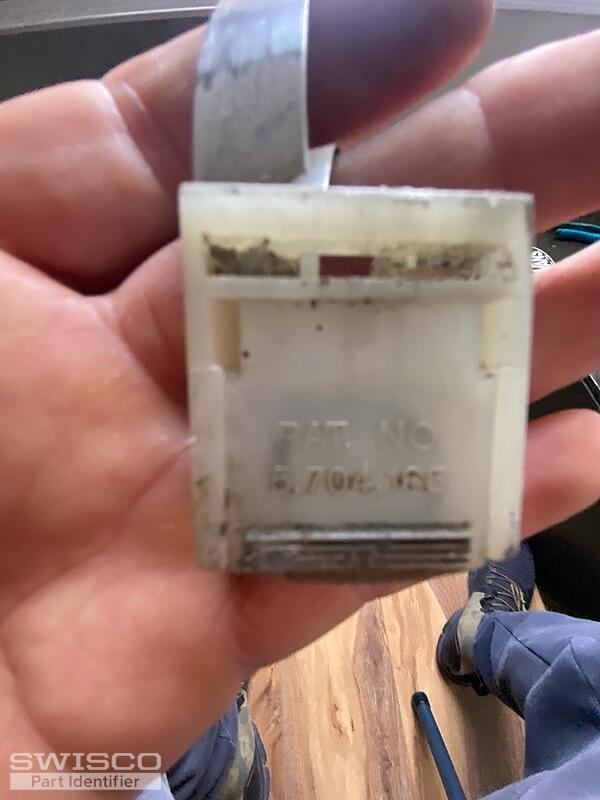

Your balance assembly resembles the 15-199 pivot shoe that is compatible with either the 1/2" thick Series 160 coil springs or the 3/8" thick Series 165 coils. The 15-199 pivot shoe has a 17/32" thickness/depth. Please review the style and dimensions to confirm a good fit. Let us know what you think and if you have any additional questions!

Alternate view of 15-199
Alternate view of 15-199

Quick Learner from Lodi
Yes that is the size of my pivot shoe. My springs are 1/2" thick. I think the series 160. I believe there are 2 springs that are broken, so I need 2 springs (series 160) and #15-199 pivot shoe to repair? Does this sound right?
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello,

Yes, that looks correct! You will want to look at the coils to see if there is a number stamped into the metal that informs the weight option of each coil. If numbers are not present, please provide the weight of the window sash to move forward!

Quick Learner from Lodi
I don't see anything on the coils. And don't know the weight of sash. Took a pic of sticker on frame if this helps. Thanks
Quick Learner from Lodi
Weighing the window at about 22 lbs.
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for confirming,

For a 22 pound window sash, you can use (2) S160-5 coil springs on each side of the window using the 15-150D coil support. Please review and let me know if you have any additional questions!

Quick Learner from Lodi
Thank you for the help!
Lauren
Lauren from SWISCO
SWISCO
Expert

No problem! Please let us know if you have any future hardware questions!
