Broken balancer pin : SWISCO.com

Quick Learner from Rhode Island

Jul 1, 2024 11:07 am

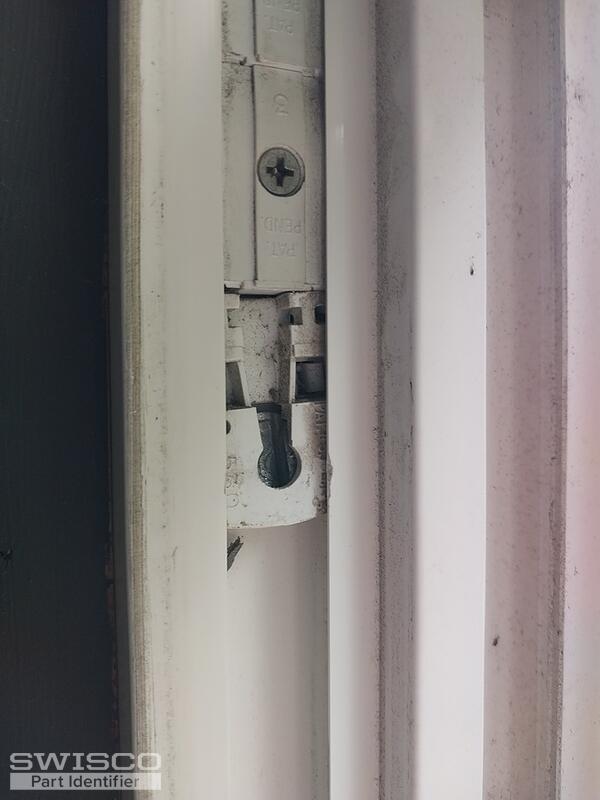

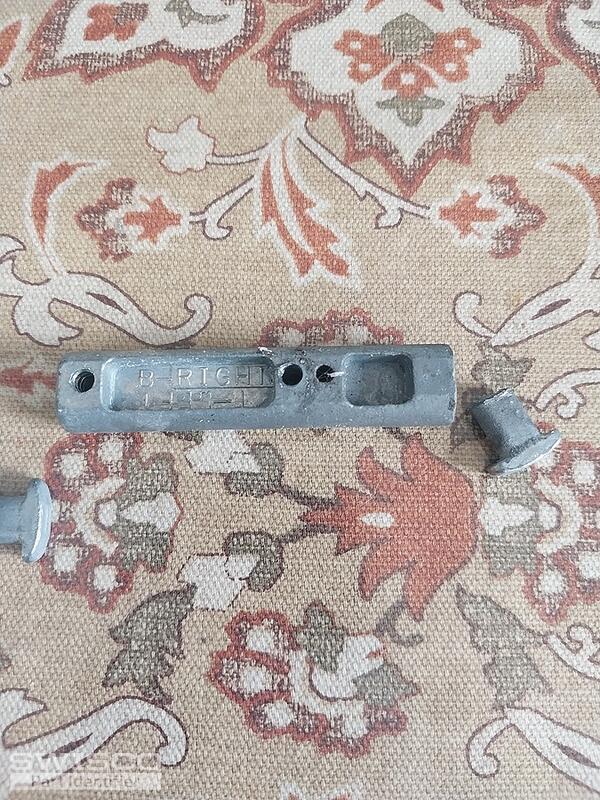

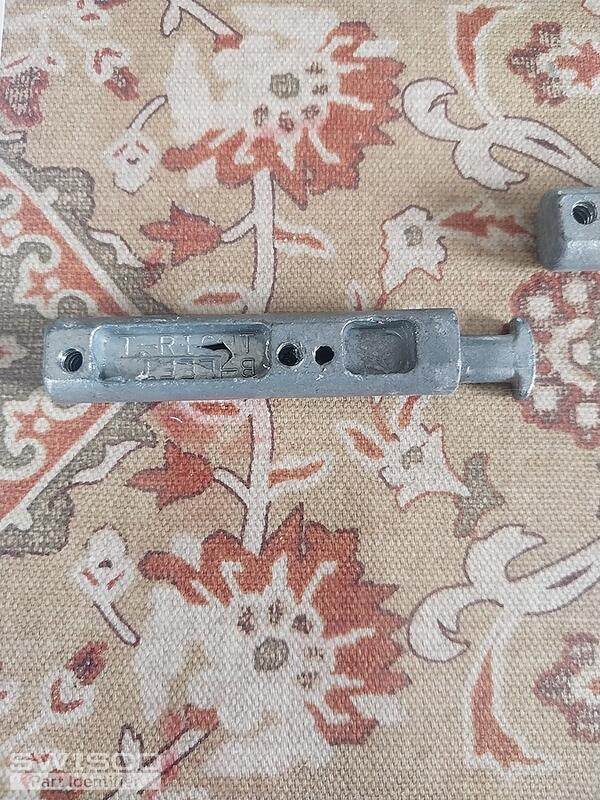

The darn thing is about three Inches long and no numbers, comes from a double hing window that is roughly 33' x 70' and uses a sring coil thing (that also needs replacing, the No. Is PAT#5.704.165) if I could have help identifying it that would be wonderful

3 user uploaded images

4 Replies

Emily from SWISCO

Jul 2, 2024 2:41 pm

Hello there!

We don't sell your exact pivot shoe but take a look at the 15-199. This is compatible with a pivot bar like the 26-378 and the 1/2" S160 and 3/8" S165 coil springs. Carefully review the specifications for these parts and see how they compare with yours.

Alternate view of 15-199

Alternate image for 26-378

Quick Learner from Rhode Island

Jul 8, 2024 10:26 am

Thank you so much, im going to try it since its not too expensive and i think it will work, you guys are amazing i couldn't even get close to finding an answer

Emily from SWISCO

Jul 9, 2024 7:55 am

We're happy to help. Please let us know if you need anything else!
