Broken coil spring, thinking of replacing all while I'm at it

Question

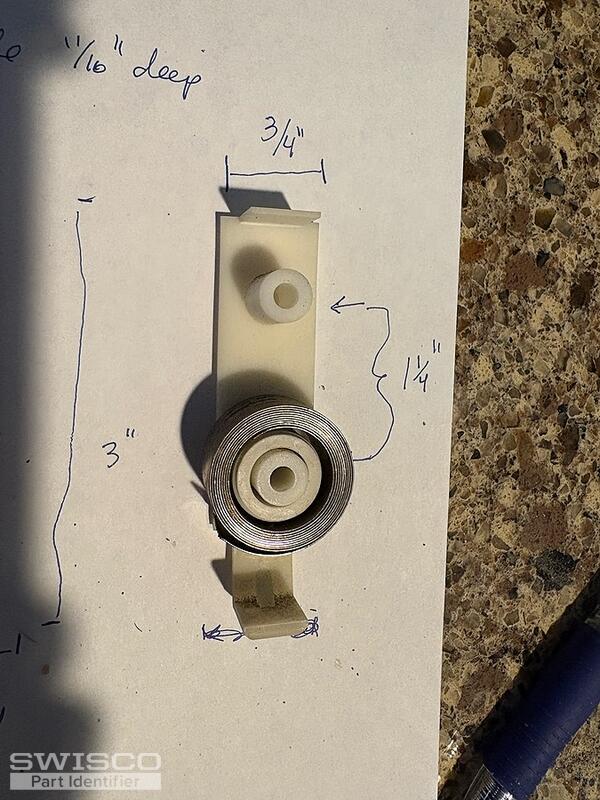

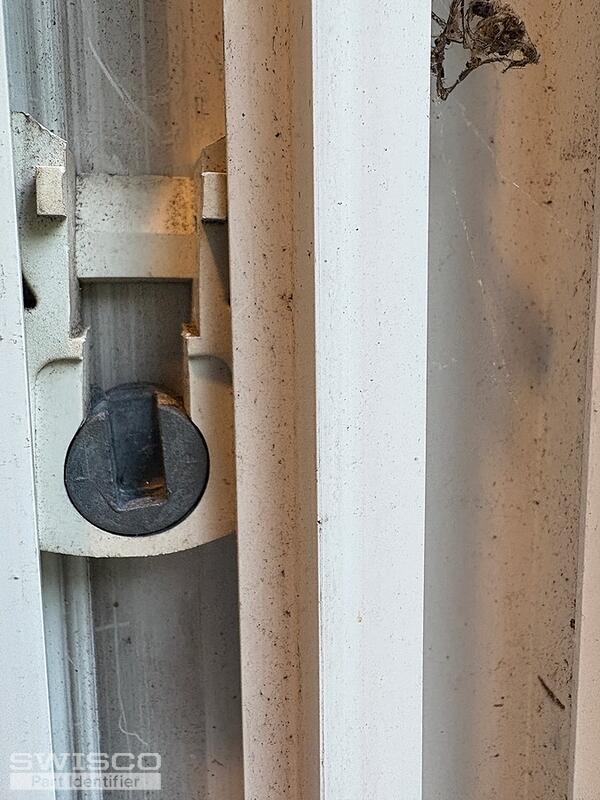

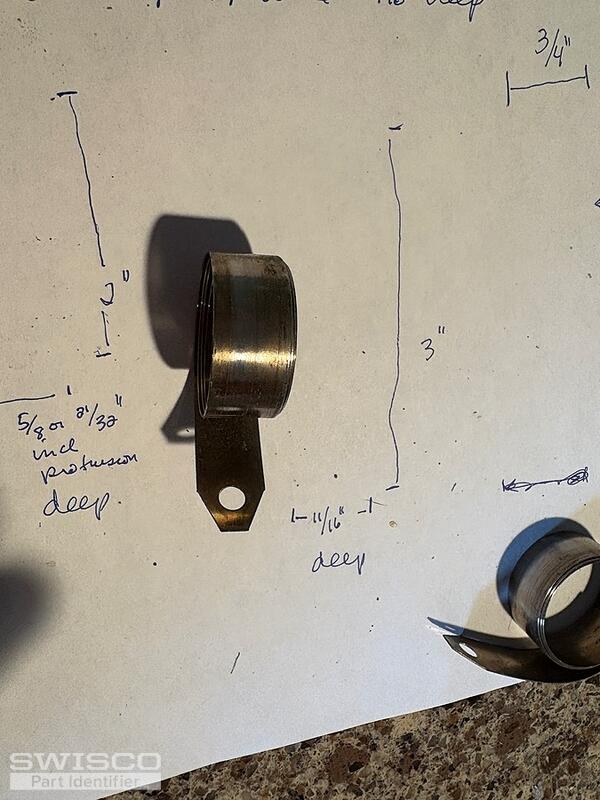

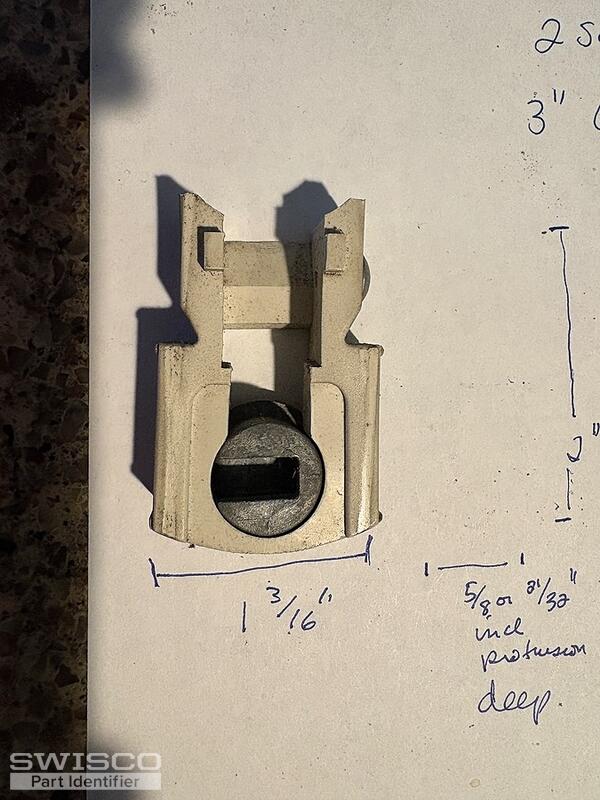

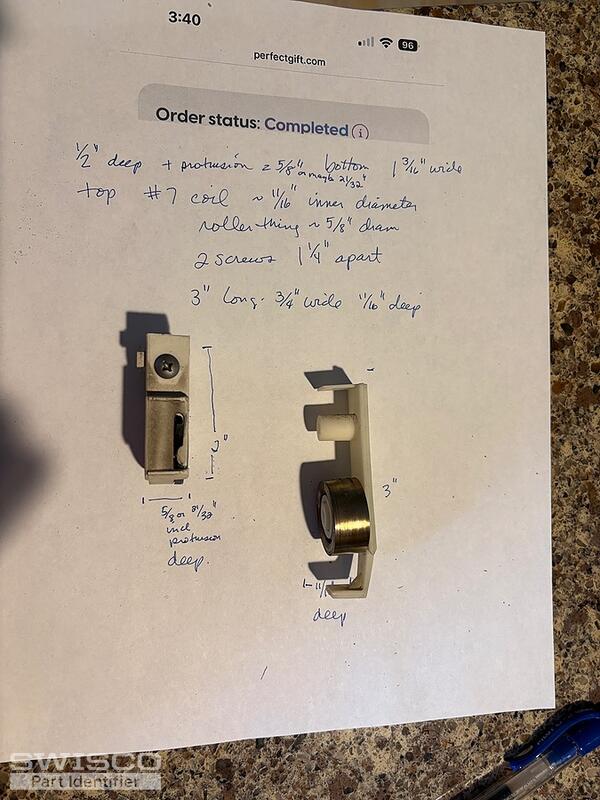

Hi, I think I need the 15-177 coil balance shoe, the 15-144 coil bushing cap, the 15-145 coil support barrel and the S152-7 7 lb 152 series coil balance (the current one is stamped 7) and 33-072 Philips screw. 2 of each, but I’m concerned that the shoe may be too wide (the current one measures 1 3/16). All are 1/2” in depth. Please advise. Thanks!

Casey · Accepted Answer

Hello,

Your pivot shoe looks like an older style version of the 15-180. This shoe is used with our Series 190 coil springs. You'll need the S190-740 based on the 7 stamped on your springs. We also offer the 15-181 double-support and 15-182 support barrel. Thanks for posting!

Alternate image for 15-180
