Broken parts on sides of windows

A quick learner from Illinois says:
September 23, 2020
The spring covers and springs are in really bad shape on several of my windows. I'm looking to replace them as some of the plastic has deteriorated so badly that I can't open and close the windows.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 28, 2020

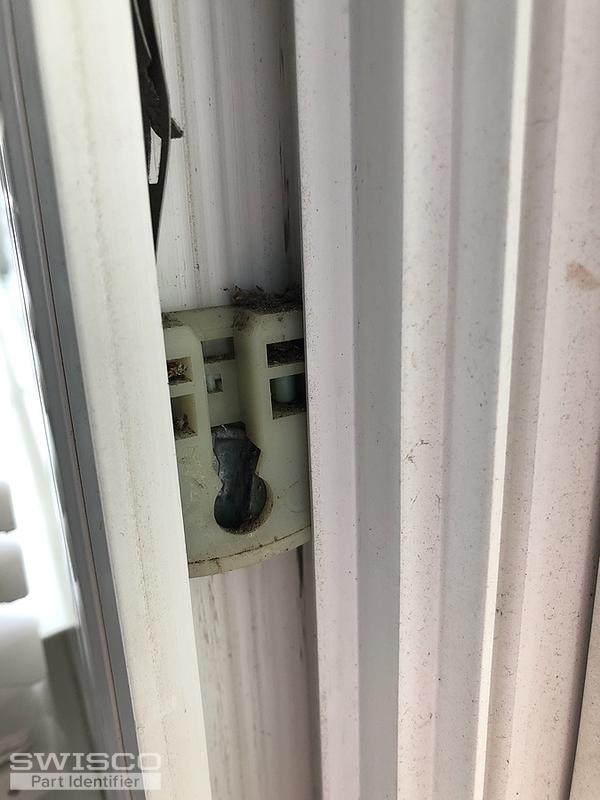

Thanks for your patience during this busy season. We can definitely help with this, but I need a bit more information. Can you show me a clear picture of the pivot shoe to which the springs connect? Can you also tell me how thick the springs are? Thanks!
A quick learner from Illinois says:
September 29, 2020
The springs seem to be about 1cm wide, if that's what you mean.
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 30, 2020

That's a little over 3/8". Can you confirm that that's accurate? Assuming your spring is 3/8", then I recommend the Series 165 coil spring and 15-205 triple coil cover, since it looks like you have three springs per side.
A quick learner from Illinois says:
September 30, 2020
Yes, that's accurate. Thanks for the recommendation, I'll give those parts a try. Do I need to replace the pivot shoe as well while I'm at it? Or anything else?
Profile picture of Tom
Tom from SWISCO responded:
September 30, 2020

Nah, it seems to be in good condition to me. If you wanted to anyway, though, then you can use our 15-199.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
