Casement Operator Help

Handy Person from Rochester NH USA

Jul 16, 2023 3:17 pm

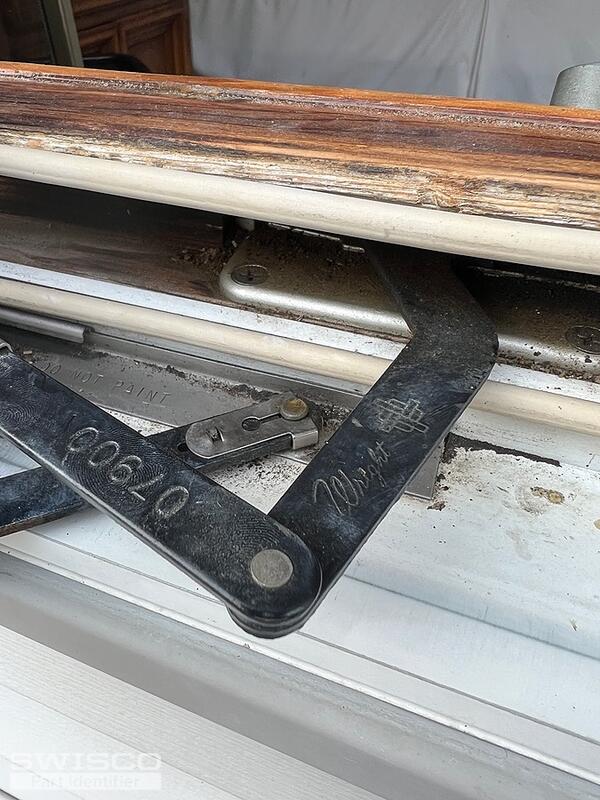

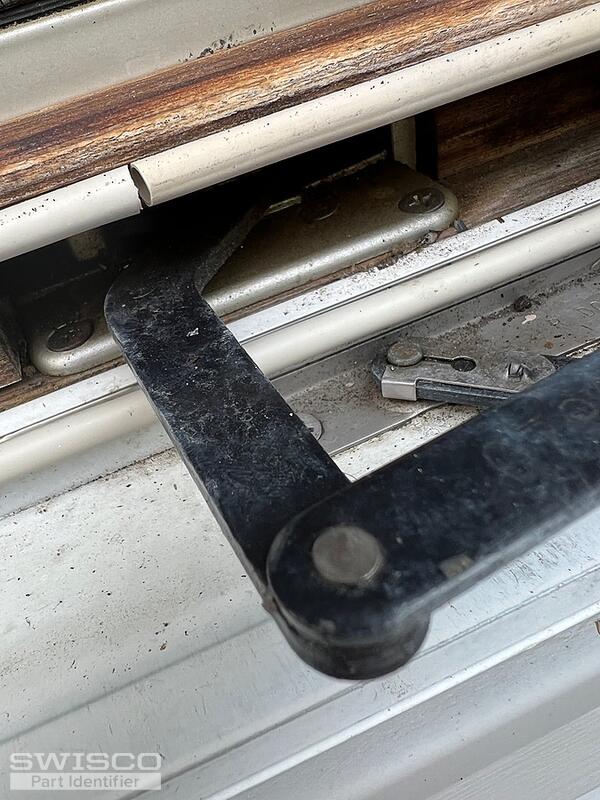

Looking for two left hand crank left from looking out double casement. hand cranks for Hurd casement windows 1988 cranks only just the section only in picture 07900 Wright. The picture is the of the right. Thanks

2 user uploaded images

9 Replies

Bob from SWISCO

Jul 16, 2023 4:51 pm

Thanks for posting. I suspect this is either the 39-388 or its opposite-handed counterpart, the 39-387. Review the diagram below and see if this type matches what you have. For a compatible crank handle, go with the 39-114L.

Dimensions for 39-388

Handy Person from Rochester NH USA

Jul 19, 2023 6:25 pm

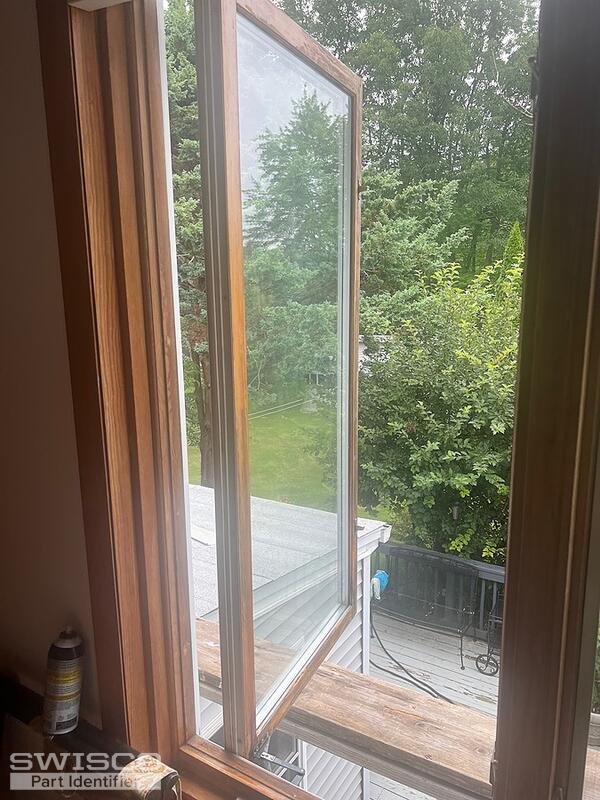

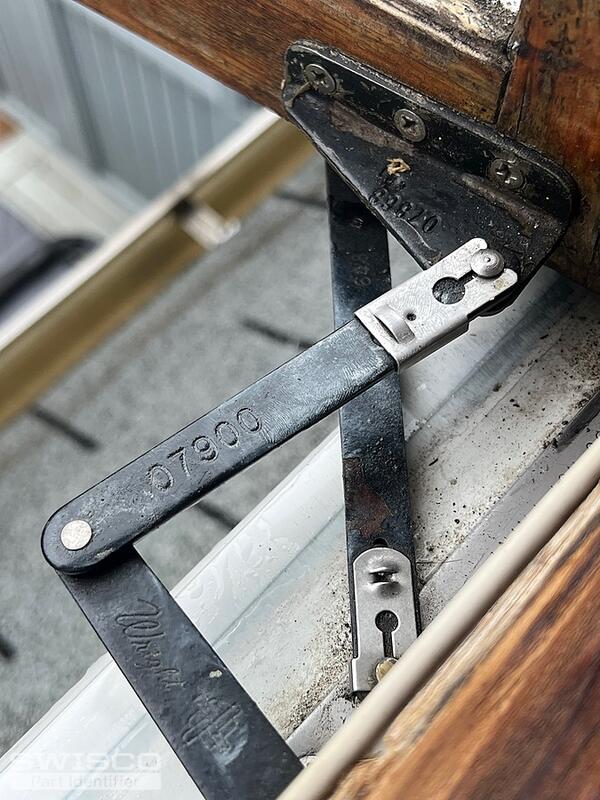

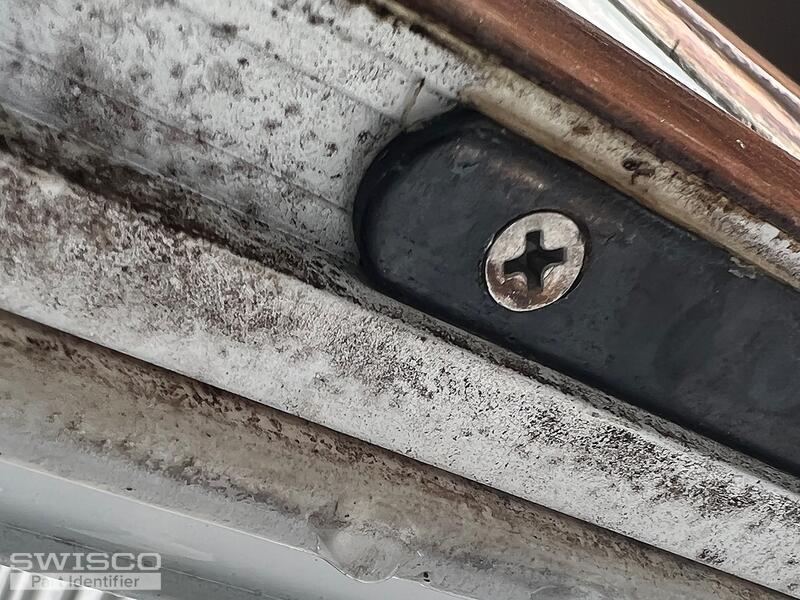

I have a curve on my existing one, will the one you showed work?

5 user uploaded images

Bob from SWISCO

Jul 24, 2023 10:55 am

I'm afraid I don't see the curve you're talking about. Referring to your photos, I don't see any particular detail that sticks out as disqualifying. Can you specify why exactly the 39-388 and 39-387 won't work?

Quick Learner

Jul 30, 2023 9:03 am

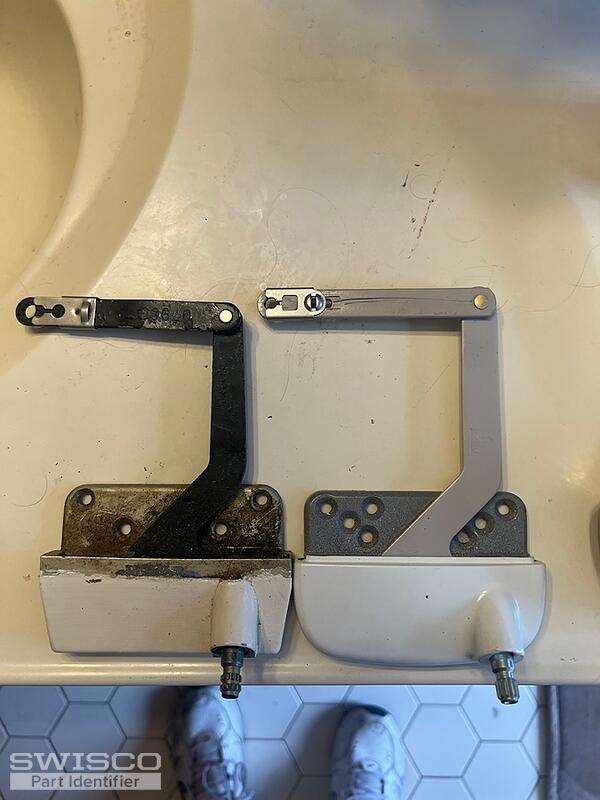

I bought two cranks, it's 1/2 too long, the 3.5 " is correct, need the other length 1/2 shorter or 4 1/4 not 4 3/4. In the picture , I took a measurement from the top right hole on each to the swing pin, again difference 1/2" Do you have a number on this so I can order right and left of each, thanks Bill

1 user uploaded image

Bob from SWISCO

Jul 31, 2023 9:46 am

Thanks for getting back to us, Bill. Unfortunately, we don't have a version of this operator with a gear arm that's shorter than 4-3/4". This appears to be the only size currently available. To be perfectly honest, I've never encountered a shorter version. It's rare that the gear arm length is the issue, usually it's the link arm.

Either way, at this time the 39-388 and 39-387 remain the best and only replacement options we can supply for this design. I am sorry for the inconvenience.

Quick Learner from Rochester NH

Jul 31, 2023 10:57 am

Hi Bob,

I was about order another one but wanted to check with you first, Please compare 39-317 39-318 with the 39-387 and 39-388, it looks like this is the length I need. Its a different company Truth, but will it work, its only a difference of 1/8" from what I measured. The Wright is 4 3/4 this is 4 3/8"

Bob from SWISCO

Jul 31, 2023 1:07 pm

The 39-317 and 39-318 have another major difference, which is that the link arm is riveted below the gear arm, rather than above it like on the 39-387 and 39-388. That may not seem like a big difference but it does affect how the link arm aligns with the bracket it must connect to on the sash. If it can't connect to that bracket, it won't be able to function properly.

Handy Person from Rochester NH USA

Jul 31, 2023 2:59 pm

Hi Bob, thanks for the info, even if I could reverse the connection upside down not sure if it would stay clipped on, thanks for checking, wright must of discontinued that one. That's a bummer
