Can you please help me find the right coil balance?

Quick Learner from Mt. Washington, KY

Dec 3, 2015 11:14 am

My coil balance has broken and I got everything off of the window and sash and hear it all is. Can you identify which part I need? T

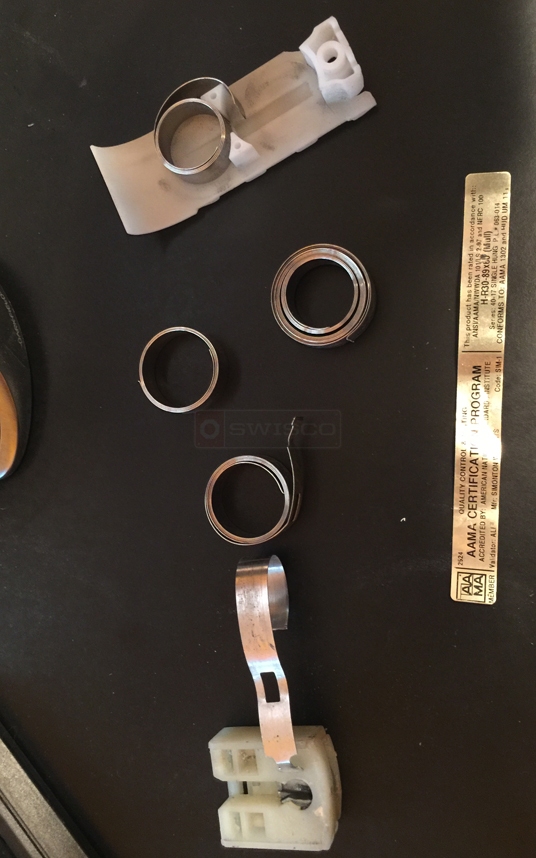

User submitted photo of their window hardware.

he coils are 3/8" wide.

4 Replies

Paul from SWISCO

Dec 3, 2015 2:01 pm

Thanks for posting. Please see our 15-199 shoe, 15-204 housing, and Series 165 coil spring. You will need to match the numbers printed on the end of the spring to determine the proper Series 165 option.

Home Owner

Dec 3, 2015 2:50 pm

I have looked at every piece of the broken spring (inside and outside) and I have not seen any numbers located on it. Can you please advise?

Thank you

Tom from SWISCO

Dec 3, 2015 3:25 pm

In that case, tell me exactly how many springs are used for one sash, then tell me the weight of the sash. That will allow me to determine the right option.
