Can't find these operators

Quick Learner from Artesia, NM
Oct 5, 2024 10:35 pm

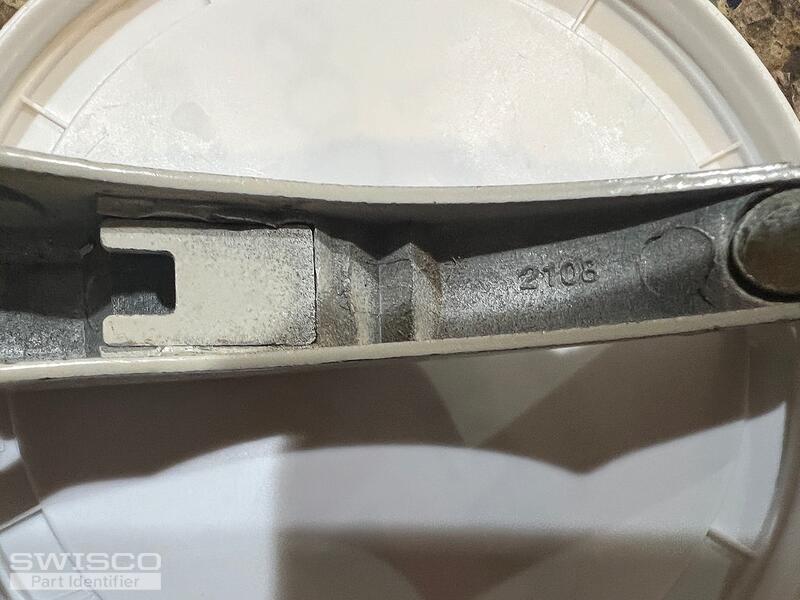

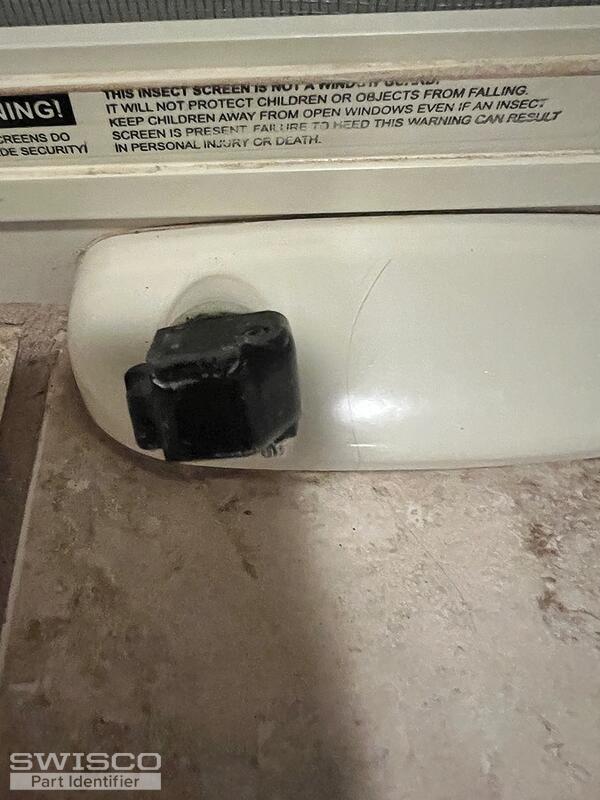

I also have many window cranks labeled 2108 for Anderson windows that have broke. I've attached photos. I'm in need of replacements but am having a hard time finding them. The plastic piece in the handle has broken off as well on most windows.

Thank you,

KimĀ

casement handle casement spline spline casement handle casement handle
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
Oct 10, 2024 10:54 am
SWISCO
EXPERT

Hi there Kim!

Thanks for reaching out to us. Can you show us a photo of the window open? We would like to see a shot of the operator's arms that move the window sash. If we can ID the operator first, that will help us determine the compatible handles.

Quick Learner from Artesia, NM
Oct 13, 2024 12:46 pm

Emily,

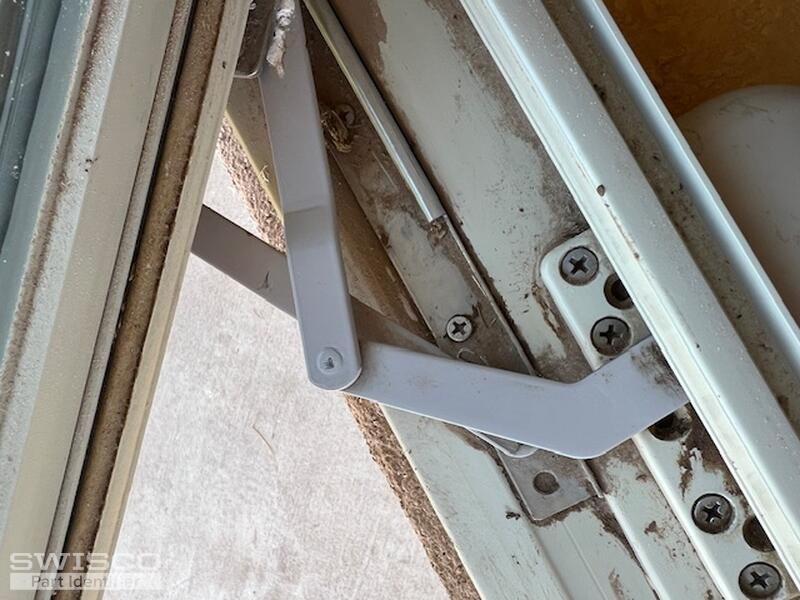

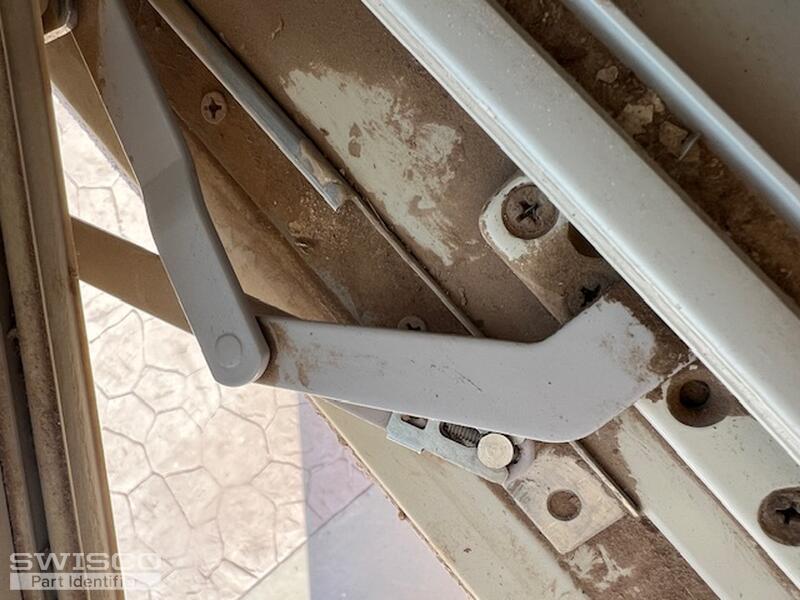

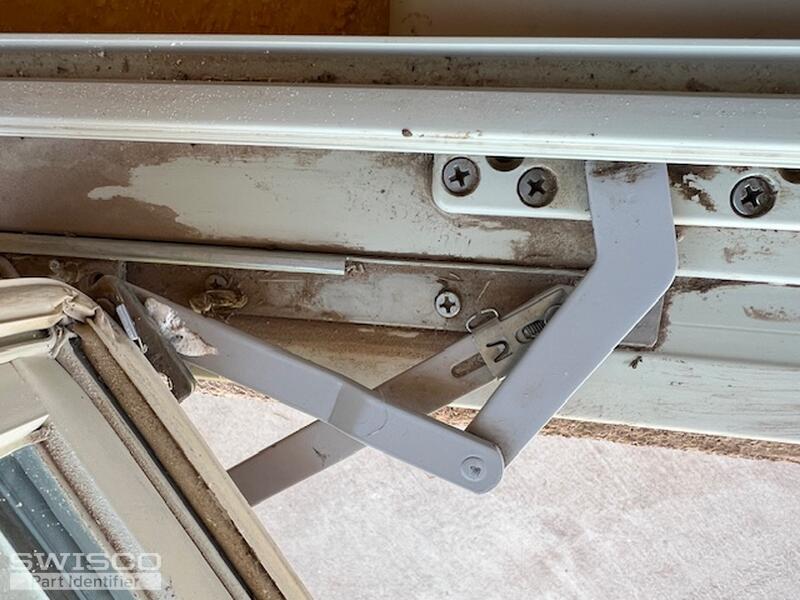

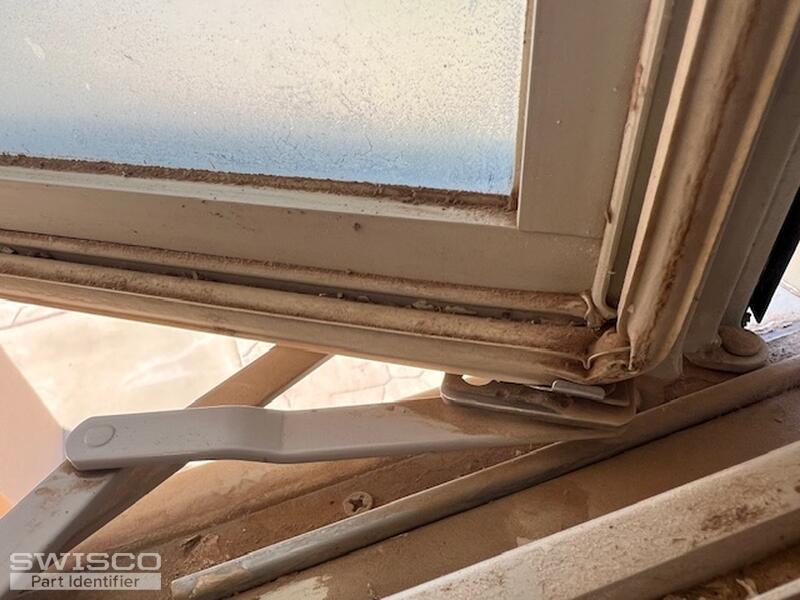

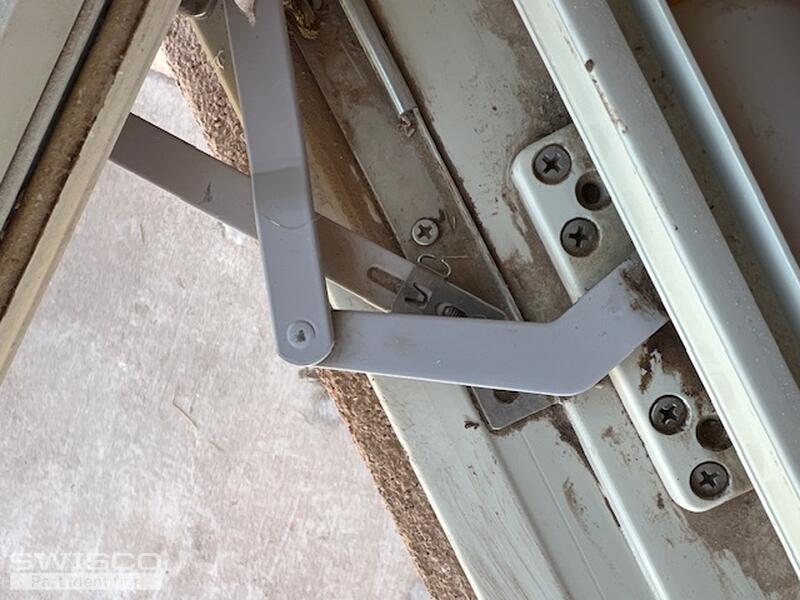

Here are pictures from one of our larger windows and a smaller window. I will need a small window replacement arm as well.

Thank you,

KimĀ

casement arm casement arm casement arm casement arm link arm
5 user uploaded images
Dave Sr.
Dave Sr. from SWISCO
Oct 15, 2024 7:41 am
SWISCO
EXPERT

Thank you for getting back to us with these photos, Kim. At first glance, your operator looks like the 39-315 and 39-316. However, your assembly has an offset arm. It also appears to use some kind of bracket that reminds me of the 39-553 and 39-554. I recommend you inspect the bracket to confirm if these are what you have.

If the brackets are what you have, the 39-329 and 39-330 could be better matches. These are compatible with the 39-232 handle (sold separately). Review the specifications for these parts and see how they compare with yours.

Please let us know if you have any questions!

Alternate image for 39-329
Alternate image for 39-329

Side profile view with measurements
Side profile view with measurements

Alternate image for 39-330
Alternate image for 39-330

Side profile view with measurements
Side profile view with measurements

Dimensions for 39-553
Dimensions for 39-553

Dimensions for 39-554
Dimensions for 39-554
