Casement Crank Replacement

Thanks for writing in! I am confident we can supply you with a replacement crank operator but I'll need a bit more information to determine the the correct replacement. Unfortunately, I am unable to cross-reference the stamp you've provided.

I'll need to see a photo of the entire operator, preferably removed from the window. I'll also need to see a photo of the end of the operator arm to determine how it connects to the window.

Please let me know if you have any questions in the in meantime.

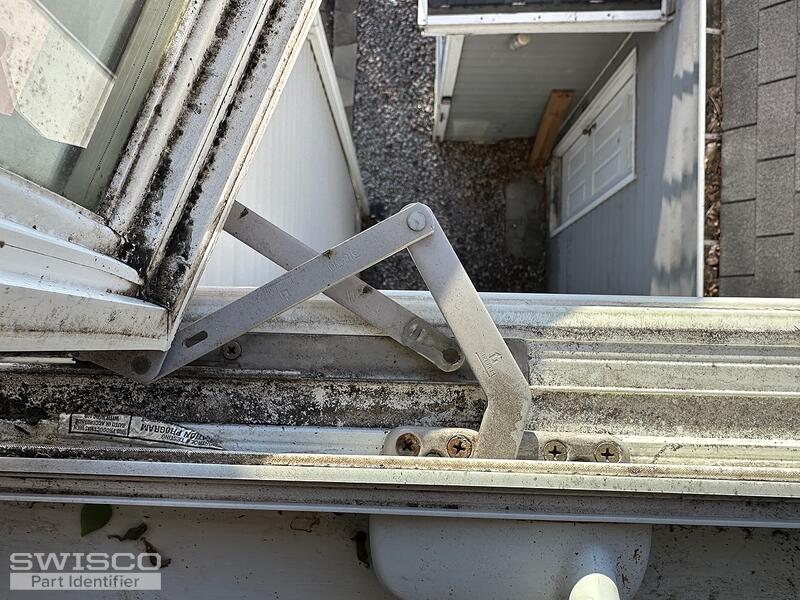

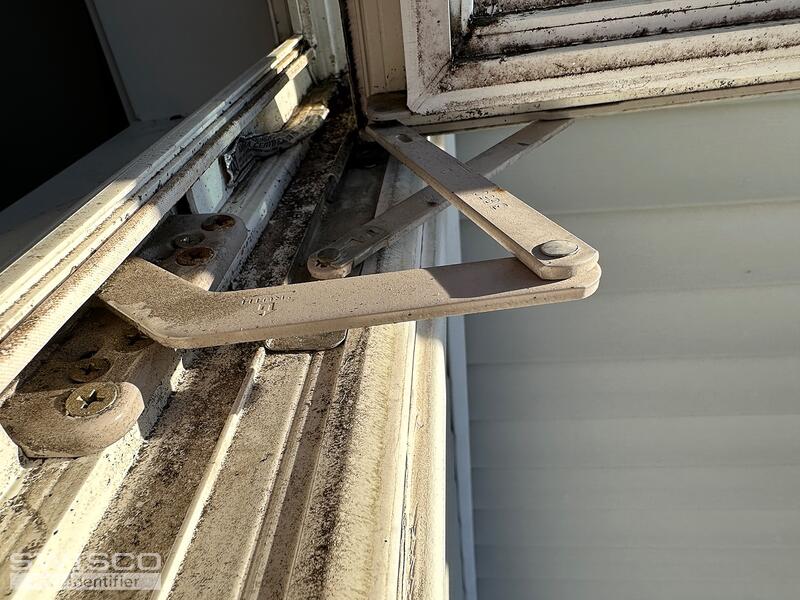

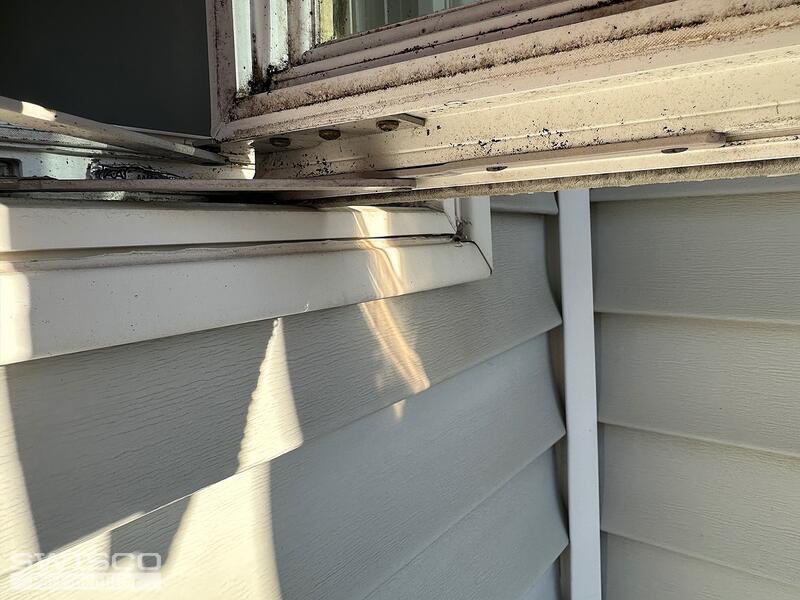

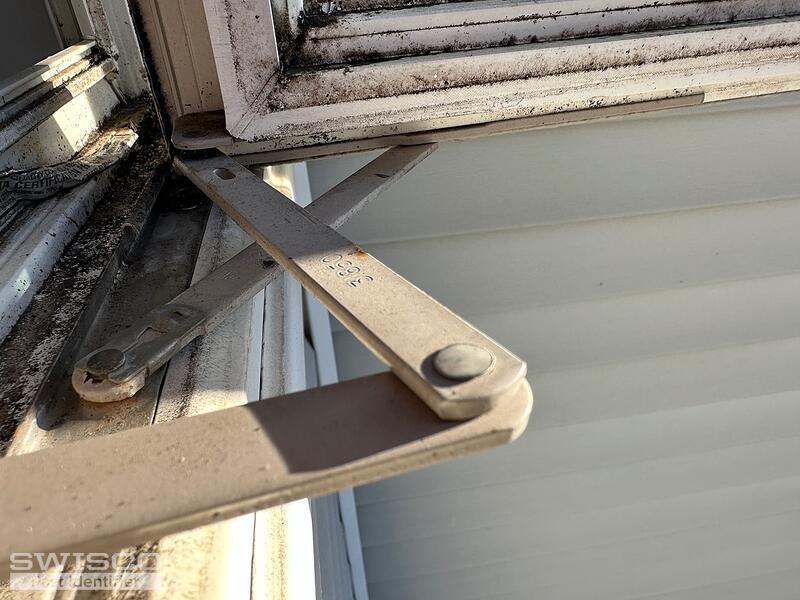

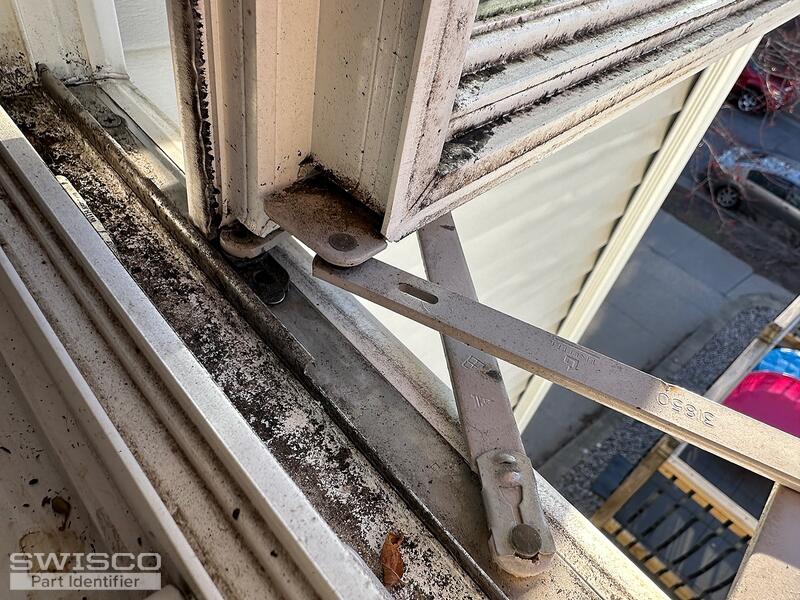

Thanks for the photos. Your casement operator looks a lot like the 39-316 Truth Dyad Operator used with the 39-548 Truth Stud Bracket to connect the link arm to the sash. The opposite handed version of these parts are the 39-315 operator and the 39-549 bracket. To determine if this is the right replacement for your hardware, carefully look over the dimensions below.

The compatible crank handles for these operators are either the 39-114L non-folding or 39-205 folding crank handle.

Alternate image for 39-316

Additional dimensions for 39-548
