Casement Operator

Home Owner from Norwalk, CT

Sep 18, 2013 8:43 am

Window glass marking: 4 5 84 8 MW
Window Frame marking: WS IGCC 178 CBA
This photo is of a Truth manufactured operator with 12" of arm which I can measure.
A smaller arm runs perpendicular to the large arm and measure about 4".

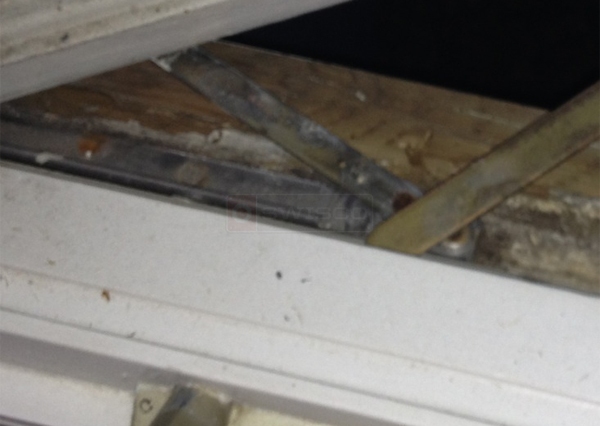

User submitted a photo of a window operator.

6 Replies

Tom from SWISCO

Sep 18, 2013 10:39 am

Thanks for posting. I'm sorry, but I'm having trouble identifying your operator based on this image. I will need to see the whole thing, preferably removed from the window. Let me know!

Home Owner from Norwalk, CT

Sep 18, 2013 11:04 am

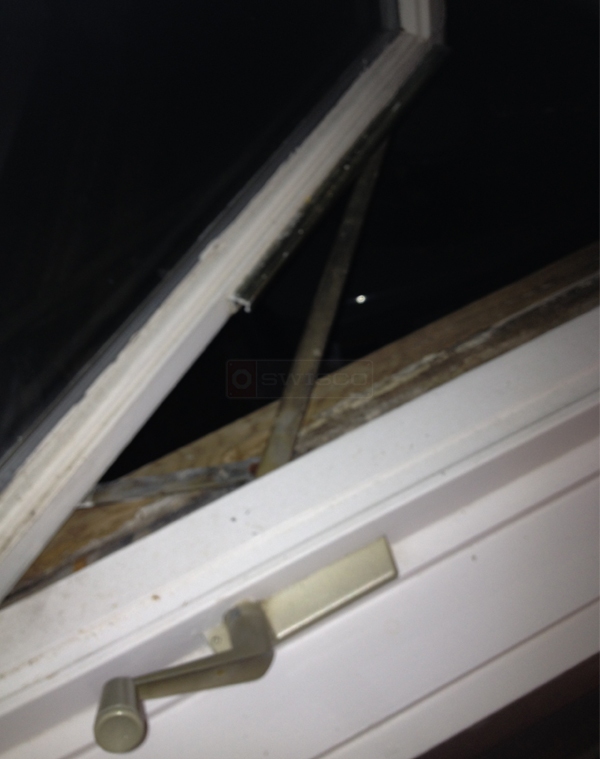

Does the attached uncropped photo help any?
Can you tell me where I could find the relevant part or window number?

Tom from SWISCO

Sep 18, 2013 11:27 am

Knowing the window number wouldn't really help us. However, this second picture is a lot better. You should consider our 39-013 and 39-014 and see if these could work as possible replacements.

Home Owner from Norwalk, CT

Sep 18, 2013 11:43 am

Thank you for your continued help.

What you have suggested is a single arm operator which is 13 1/2" long. Seems like it would be too long. Also, what about the other smaller piece? Is that part sold separately?

Tom from SWISCO

Sep 18, 2013 12:33 pm

When measuring the arm, make sure to measure from the center of the wheel to the center of the gear.

I'm not sure what the smaller piece is. Do you mean the handle? If so, check out our 39-114L.
