Casement Window Operator Replacement

A quick learner from Bend, OR says:
September 19, 2022

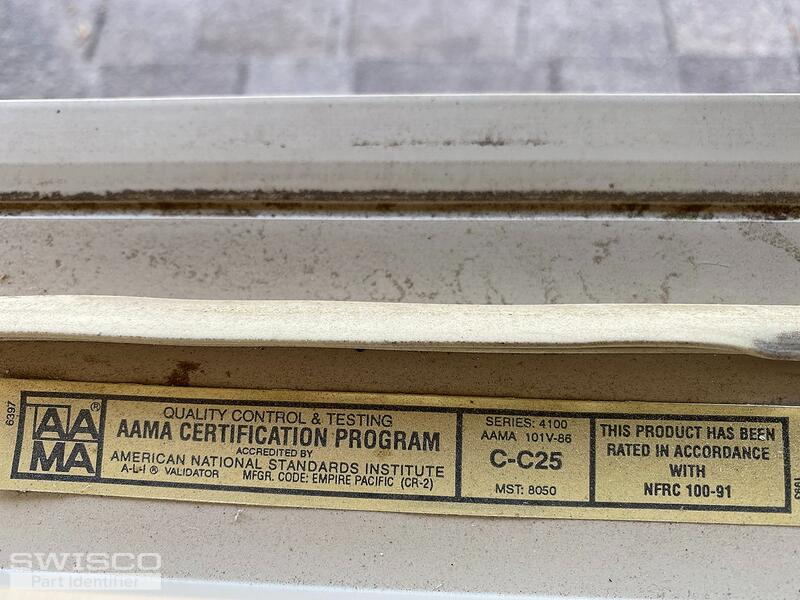

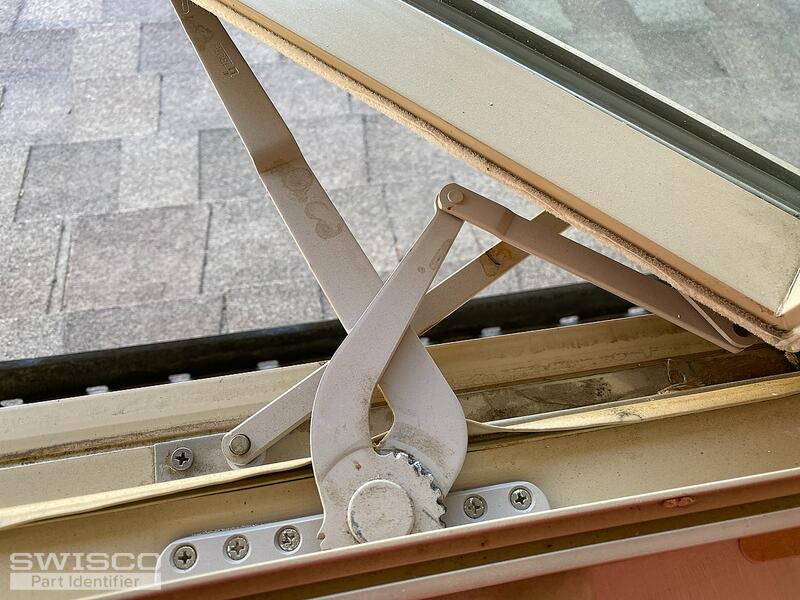

Hi, I have vinyl crank windows and I would like to buy a casement window operator to replace the broken one that I have. Please see the photos that I have uploaded. The teeth on the operator are worn, and the window will no longer shut unless I take the screen out and grab it and pull it closed.
Thumbnail of the uploaded file named IMG_7600.JPG
Thumbnail of the uploaded file named IMG_E7601.JPG
Profile picture of Emily
Emily from SWISCO responded:
September 22, 2022

Hello there!

I recommend either our 39-253LB & 39-253RB or 39-438B & 39-439B operators. They look very similar to one another but the best match depends on what guide is used at the end of the arm. The video below will explain precisely what I mean. If you need a new cover and handle, see our 39-375 & 39-376 or 39-451 & 39-452 .

Encore Dual Arm Operator, Sill Mount, Low Profile
Encore Dual Arm Operator, Sill Mount, Low Profile
39-438B
$38.64
Encore Dual Arm Operator, Sill Mount, Low Profile
Encore Dual Arm Operator, Sill Mount, Low Profile
39-439B
$38.64
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253LB
$31.70
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253RB
$31.70
Encore Truth Folding Handle with Cover
Encore Truth Folding Handle with Cover
39-375
$11.97
Encore Truth Folding Handle with Cover
Encore Truth Folding Handle with Cover
39-376
$11.97
Encore Truth Operator Cover and Handle
Encore Truth Operator Cover and Handle
39-451
$12.05
Encore Truth Operator Cover and Handle
Encore Truth Operator Cover and Handle
39-452
$12.05
Comparing the 39-253LB & 39-438B Operators
Comparing the 39-253LB & 39-438B Operators
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to Orient a Dual-Arm Operator
How to Orient a Dual-Arm Operator
VIDEO
WATCH >
