Casement Window parts

A handy person from Lavalette NJ says:

July 8, 2021

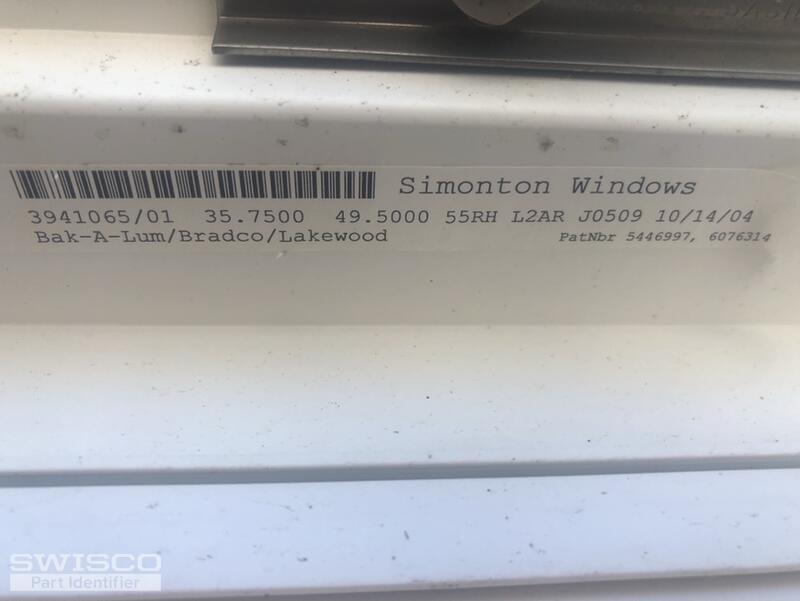

Trying to find parts for my Windows. The Latch, crank, arm and guides have rusted out. The Simonton window part is 39-6313/07. Does anyone know if they still make replacement parts or a comparable part?

Thumbnail of the uploaded file named 6D15C169-F2A8-4401-AAFA-55179DB57B26.jpeg

Thumbnail of the uploaded file named E28A7227-1A21-4294-8832-672EC4C92F69.jpeg

Thumbnail of the uploaded file named 27A964F2-50B8-4794-8D34-ED0C25967B0F.jpeg

Thumbnail of the uploaded file named AD3C3F03-4EF3-4295-B004-9314EE173E30.jpeg

Thumbnail of the uploaded file named BA0DE77B-DB0B-42E5-9E15-E03726EBECA6.jpeg

Emily from SWISCO responded:

July 13, 2021

Hi there!

It looks like you have either our 39-253LB & 39-253RB, or the 39-438B & 39-439B. The only difference between these two operator styles is the appendage used at the end of the link arm. Take a look at the video below that will help you choose the correct replacement.

For a handle, please see our 39-375 and 39-376. If you need a new hinge set as well, start by comparing your dimensions to our 36-048 and see how they match up. Just be sure to replace the top and bottom hinges at the same time.

Encore Dual Arm Operator, Sill Mount

39-253LB

$30.70

Encore Dual Arm Operator, Sill Mount

39-253RB

$30.70

Encore Dual Arm Operator, Sill Mount, Low Profile

39-438B

$38.64

Encore Dual Arm Operator, Sill Mount, Low Profile

Encore Truth Folding Handle with Cover

39-375

$11.97

Encore Truth Folding Handle with Cover

39-376

$11.97

Truth Hardware Track Slider

39-529

$1.20

How to Orient a Dual-Arm Operator

VIDEO

WATCH >

Comparing the 39-253LB & 39-438B Operators

VIDEO

WATCH >

Anatomy of a casement window

VIDEO

WATCH >

How to Replace a 2-Bar Hinge Set on a Casement Window

VIDEO

WATCH >

How to identify casement and awning operators

GUIDE

READ >
